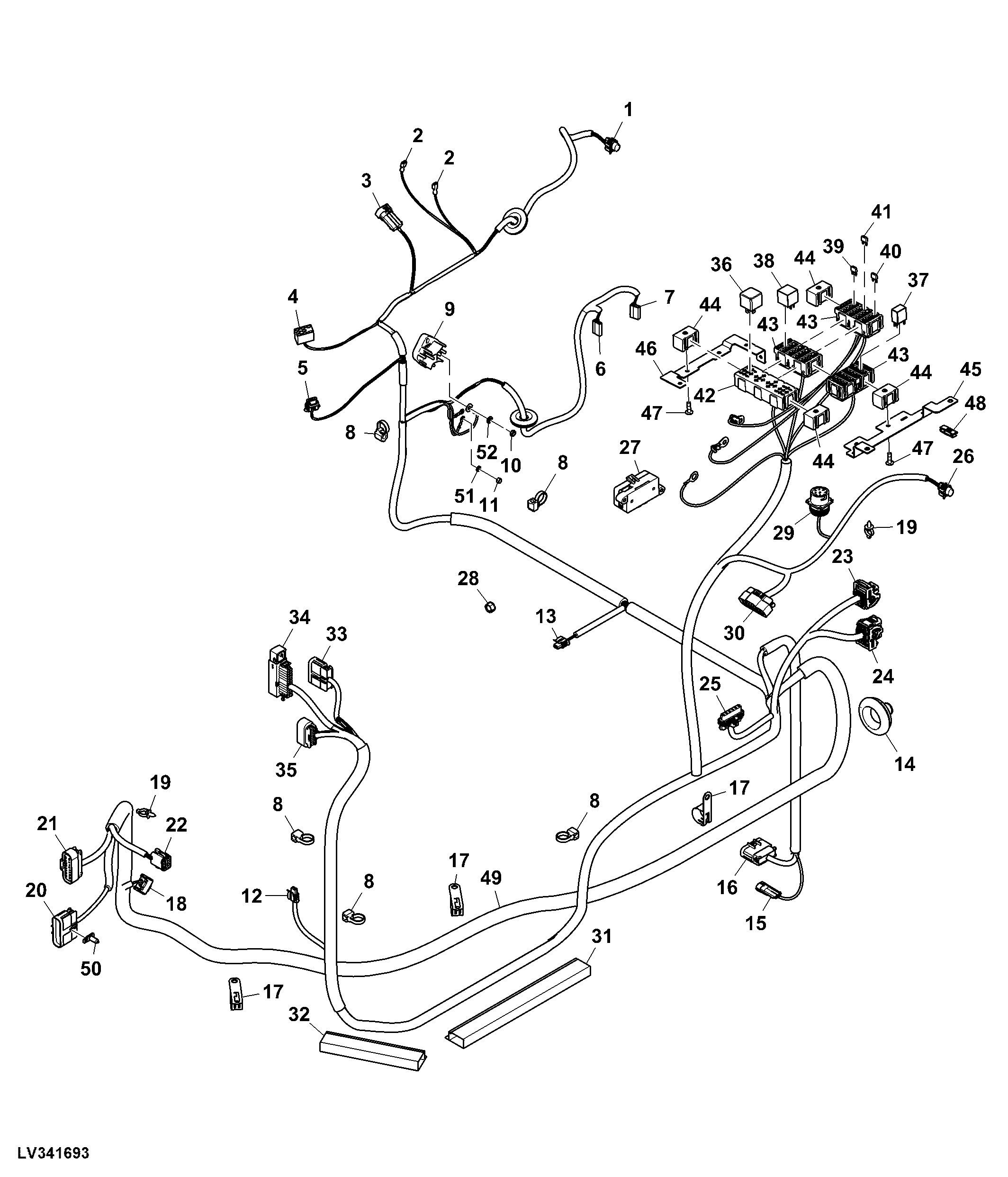

Cab Wiring Harness, SyncShuttle™ Transmission PTE (347000 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7349	1	Elec. Connector Accessory	Turn Lamp, LH
2	57M8949	2	Elec. Connector Terminal	-
3	57M7263	1	Elec. Connector Housing	Rear Wiper
4	M117518	1	Elec. Connector Terminal	Rear PTO
5	57M7255	1	Elec. Connector Housing	Hand Throttle
6	R77476	1	Electrical Connector Assy	Front Washer Pump
7	R77476	1	Electrical Connector Assy	Rear Washer Pump
8	-	12	Part 8	-
9	RE186986	1	Junction Block	3 Stud Junction Block
10	14M7194	1	Nut	M6
11	14M7297	2	Nut	M5
12	57M7328	1	Elec. Connector Housing	Differential Lock
13	57M7328	1	Elec. Connector Housing	Seat Switch
14	R138078	2	Grommet	Grommet
15	57M7256	1	Elec. Connector Housing	Chassis Connector
16	57M8281	1	Elec. Connector Housing	Chassis Connector
17	57M10635	5	Elec. Connector Accessory	-
18	57M7953	1	Electrical Connector Assy	Foot Throttle
19	RE258807	4	Tie Band	-
20	57M8280	1	Elec. Connector Housing	Engine Harness
21	57M8279	1	Elec. Connector Housing	Engine Harness
22	57M8746	1	Elec. Connector Housing	Injector Connector
23	57M10609	1	Elec. Connector Housing	ECU Connector
24	57M10615	1	Elec. Connector Housing	ECU Connector
25	57M9406	1	Elec. Connector Accessory	-
26	57M7349	1	Elec. Connector Accessory	Turn Lamp, RH
27	RE48875	1	Junction Block	Battery Power
28	14M7274	1	Nut	M10
29	57M7919	1	Elec. Connector Housing	Service Advisor
30	57M8279	1	Elec. Connector Housing	Roof Harness
31	R267935	1	Channel	LGTH = 320 mm
32	R267934	1	Channel	LGTH = 185 mm
33	57M8281	1	Elec. Connector Housing	Front Console Connector
34	57M8944	1	Elec. Connector Housing	Front Console Connector
35	57M8484	1	Elec. Connector Housing	Front Console Connector
36	LVA13729	4	Relay	12 V
37	SJ15809	6	Relay	-
38	SJ15810	1	Relay	-
39	57M8163	9	Fuse	30 A
40	57M7691	5	Fuse	20 A
41	57M7689	10	Fuse	10 A
42	57M9152	1	Elec. Connector Housing	-
43	57M8756	3	Elec. Connector Accessory	-
44	57M8749	4	Elec. Connector Accessory	-
45	R256598	1	Bracket	-
46	R256599	1	Bracket	-
47	19M8649	4	Screw	M6 X 20
48	RE194287	1	Fuse Holder	-
49	SJ20052	1	Wiring Harness	-
50	57M8910	1	Clip	-
51	24M7087	2	Washer	5.500 X 10 X 1 mm
52	24M7088	1	Washer	6.600 X 12 X 1.600 mm

Cab Wiring Harness, SyncShuttle™ Transmission PTE (347000 - )
