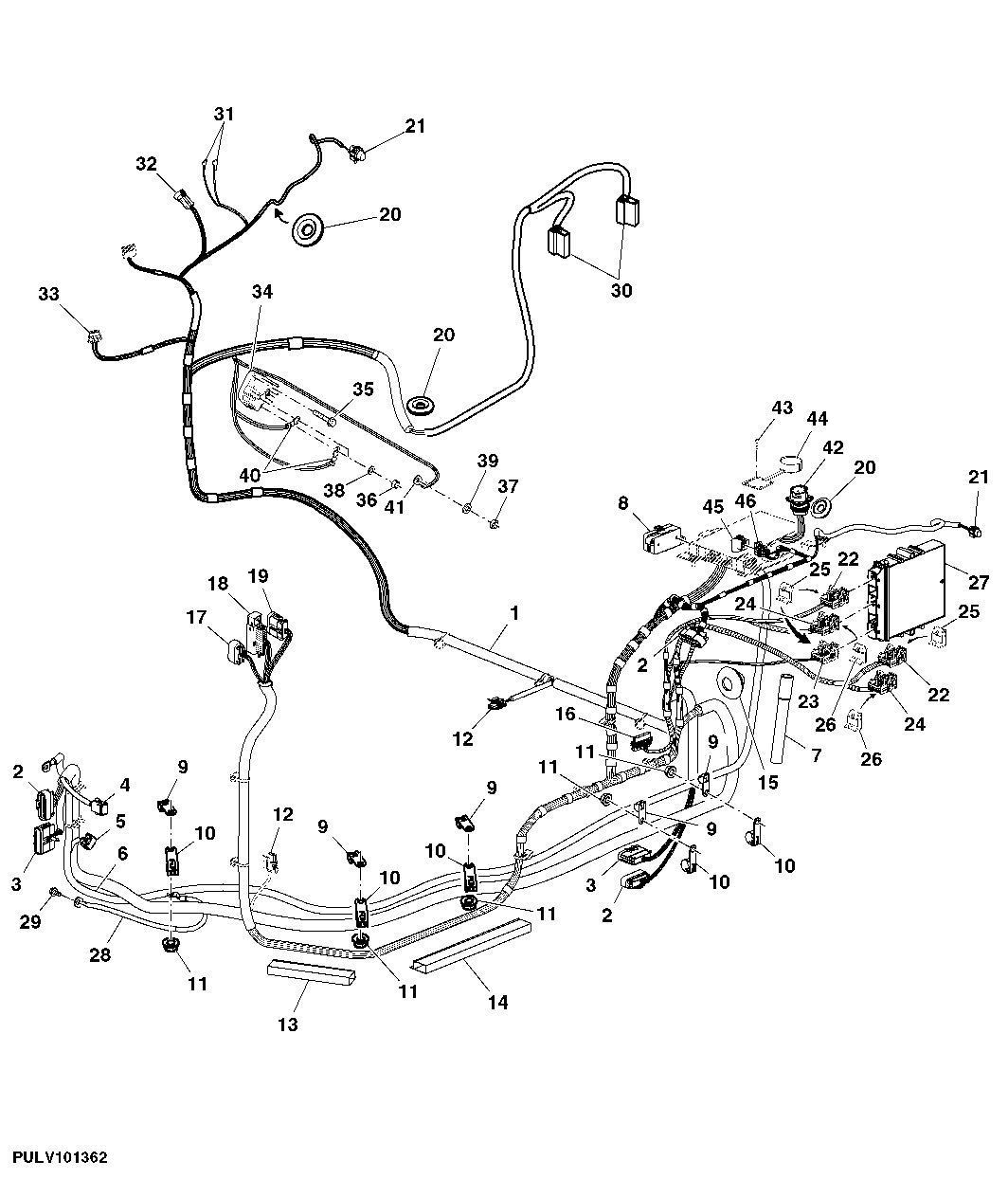

CAB WIRING HARNESS, SYNCREVERSER PTE (SR)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ12688	1	Wiring Harness	SUB FOR SJ299153
2	57M8279	3	Elec. Connector Housing	-
3	57M8280	2	Elec. Connector Housing	-
4	57M8746	1	Elec. Connector Housing	-
5	57M7953	1	Electrical Connector Assy	-
6	RE263829	1	Battery Cable	-
7	R281023	1	Hose	(SUB FOR R210115)
8	RE48875	1	Junction Block	-
9	57M8856	5	Elec. Connector Accessory	-
10	R107991	5	Clamp	-
11	14M7298	5	Flange Nut	M8
12	57M7328	2	Elec. Connector Housing	-
13	R267934	1	Channel	-
14	R267935	1	Channel	-
15	R213135	2	Grommet	-
16	57M9406	1	Elec. Connector Accessory	(B) (SUB FOR 57M8193)
17	57M8484	1	Elec. Connector Housing	-
18	57M8944	1	Elec. Connector Housing	-
19	57M8281	1	Elec. Connector Housing	-
20	Z53033	3	Grommet	-
21	57M7349	2	Elec. Connector Accessory	-
22	57M8519	2	Elec. Connector Housing	-
23	57M8523	1	Elec. Connector Housing	(SUB FOR 57M8523)
24	57M8527	2	Elec. Connector Housing	-
25	57M8528	3	Electrical Connector Cap	-
26	57M8529	2	Electrical Connector Cap	-
27	SJ290320	1	Electronic Control Unit	-
28	MIA10189	1	Ground Cable	-
29	19M7865	1	Screw	M8 X 16
30	R77476	2	Electrical Connector Assy	-
31	U46662	2	Elec. Connector Terminal	-
32	57M7263	1	Elec. Connector Housing	-
33	57M7255	1	Elec. Connector Housing	-
34	RE186986	1	Junction Block	-
35	37M7061	2	Screw	M5 X 20
36	14M7297	2	Nut	M5
37	14M7194	1	Nut	M6
38	24M7087	2	Washer	5.500 X 10 X 1 mm
39	24M7088	1	Washer	6.600 X 12 X 1.600 mm
40	57M7547	2	Elec. Connector Terminal	-
41	57M7556	1	Elec. Connector Terminal	-
42	57M7919	1	Elec. Connector Housing	-
43	37M7095	4	Screw	-
44	L156796	1	Plug	-
45	RE207311	1	Electronic Control Unit	(SUB FOR RE183146)
46	57M7260	1	Elec. Connector Housing	-

CAB WIRING HARNESS, SYNCREVERSER PTE (SR)
