Rear Wiring Harness, SyncShuttle™, OOS (2/2) (018074 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ38593	1	Wiring Harness	Rear Wiring Harness SUB FOR SJ20489
2	57M7260	1	Elec. Connector Housing	Quick Raise / Lower Switch H-17
2	57M9215	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
2	57M7291	1	Electrical Connector Assy	-
2	R104846	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
3	57M7260	1	Elec. Connector Housing	Implement Adjustment Switch H-42
3	57M7291	1	Electrical Connector Assy	-
3	R104846	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
3	57M9215	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
4	57M7170	2	Elec. Connector Housing	MFWD
5	57M10995	5	Elec. Connector Housing	Front Left Lamp
6	57M10017	1	Elec. Connector Housing	Rear PTO Switch H-25
7	57M10022	2	Elec. Connector Housing	Differention Lock
8	57M8944	1	Elec. Connector Housing	I/C to Console H-01
8	57M8943	1	Elec.Connect Locking Device	-
8	57M8941	1	Elec. Connector Terminal	-
8	57M7400	1	Elec. Connector Seal	-
9	57M12319	2	Elec. Connector Housing	Rear to Console Interconnect
10	57M10021	1	Elec. Connector Housing	EQRL Controller
11	57M10019	2	Elec. Connector Housing	Rear Fender Lamp
12	57M7938	2	Elec. Connector Terminal	Cavity 1, 2
12	57M10497	1	Elec. Connector Housing	EQRL Motor H-06
12	57M8571	2	Elec. Connector Terminal	Cavity 1, 2
13	57M10497	1	Elec. Connector Housing	Fuel Level Sender H-23
13	57M8571	2	Elec. Connector Terminal	Cavity 1, 2
13	57M7938	2	Elec. Connector Terminal	Cavity 1, 2
14	57M10020	1	Elec. Connector Housing	Right Rear Fender Light H-12
14	57M8571	1	Elec. Connector Terminal	-
14	57M7938	1	Elec. Connector Terminal	-
15	57M10020	1	Elec. Connector Housing	Left Rear Fender Light H-37
15	57M8571	1	Elec. Connector Terminal	-
15	57M7938	1	Elec. Connector Terminal	-
16	57M8571	1	Elec. Connector Terminal	-
16	57M7938	1	Elec. Connector Terminal	-
16	57M10020	1	Elec. Connector Housing	Front Right Lamp H-15
17	57M10020	1	Elec. Connector Housing	Front Left Lamp H-38
17	57M8571	1	Elec. Connector Terminal	-
17	57M7938	1	Elec. Connector Terminal	-
18	57M10074	1	Elec. Connector Terminal	Ground
19	57M7255	1	Elec. Connector Housing	Hand Brake Switch H-24
20	RE12363	1	Electrical Connector Assy	Neutral Switch H-04
20	57M7251	2	Elec. Connector Terminal	Cavity A, B
20	57M10845	2	Elec. Connector Cable Seal	Cavity A, B
21	57M11707	1	Elec. Connector Terminal	MFWD
22	57M11708	1	Elec. Connector Terminal	MFWD

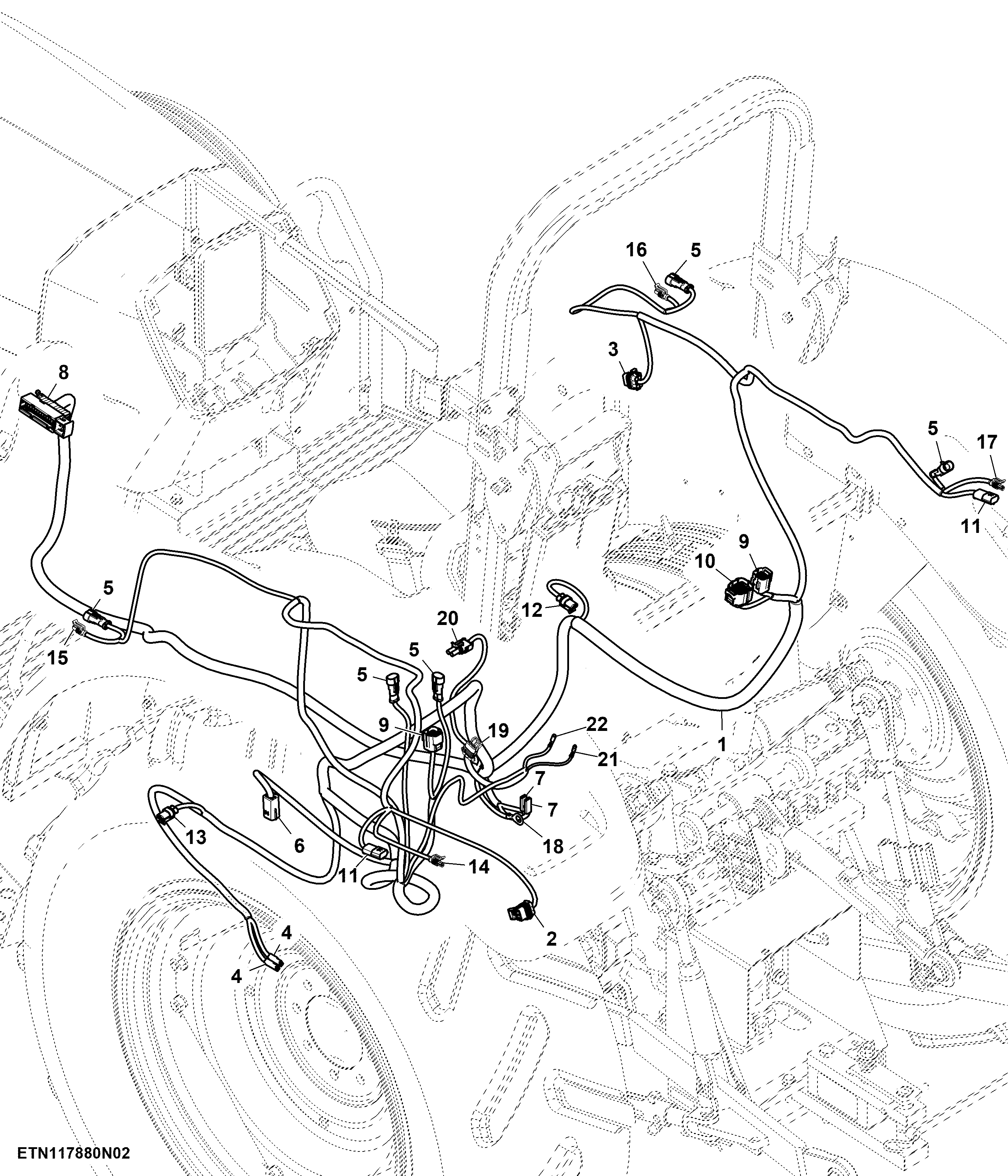

Rear Wiring Harness, SyncShuttle™, OOS (2/2) (018074 - )
