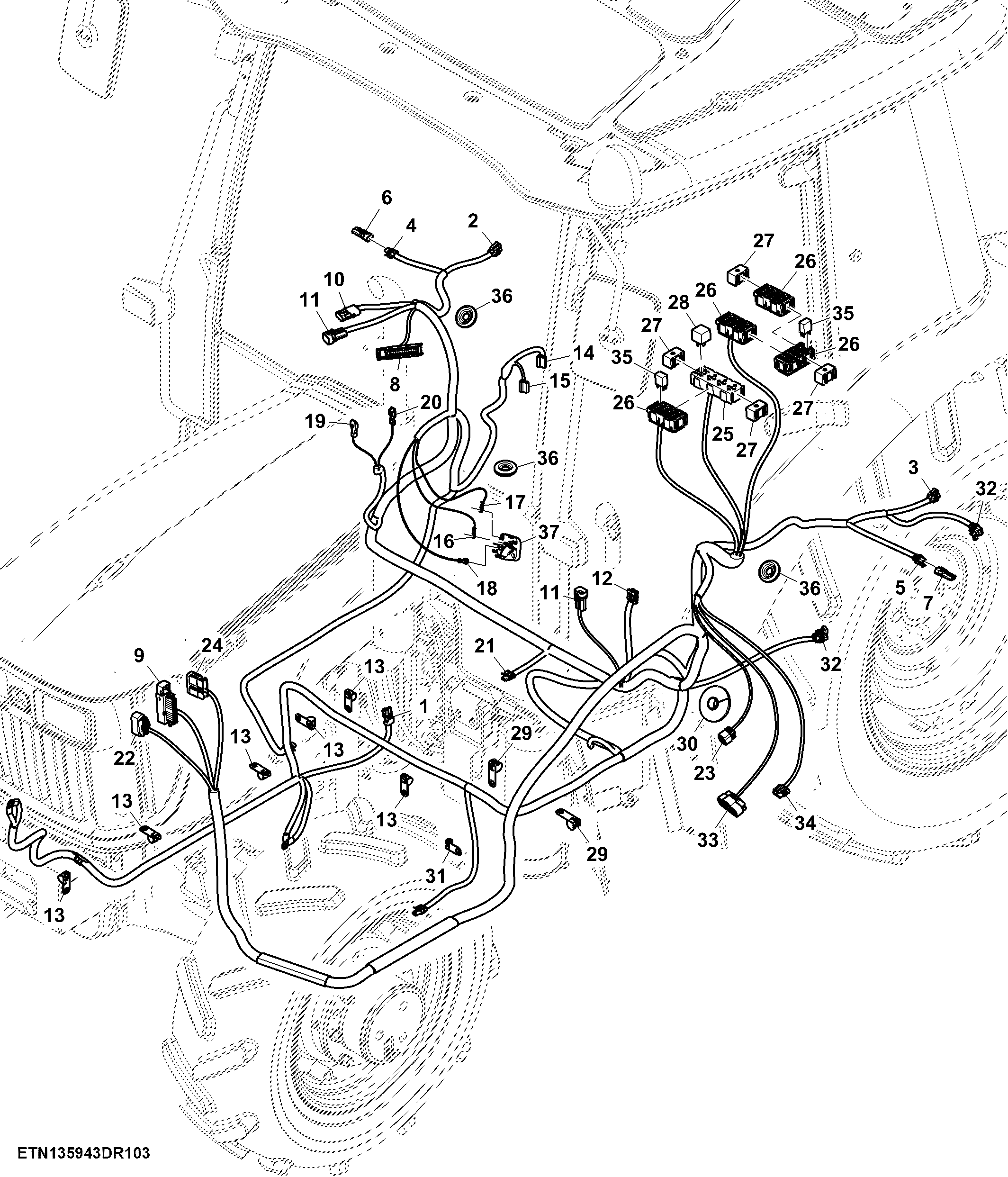

Cab Wiring Harness Connectors, SyncShuttle™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE12363	1	Electrical Connector Assy	-
2	57M7349	1	Elec. Connector Accessory	Right Tail/ Brake/ Turn Lamp
2	57M7347	1	Elec. Connector Accessory	-
3	57M7349	1	Elec. Connector Accessory	Left Tail/ Brake/ Turn Lamp
3	57M7347	1	Elec. Connector Accessory	-
4	57M7254	1	Elec. Connector Housing	License Plate Lamp 2
4	57M7289	1	Elec.Connect Locking Device	-
5	57M7254	1	Elec. Connector Housing	License Plate Lamp 1
5	57M7289	1	Elec.Connect Locking Device	-
6	57M7256	1	Elec. Connector Housing	Dust Cap for Lamp 2
6	57M7289	1	Elec.Connect Locking Device	-
7	57M7256	1	Elec. Connector Housing	Dust Cap for Lamp 1
7	57M7289	1	Elec.Connect Locking Device	-
8	57M7259	1	Elec. Connector Seal	-
8	57M8943	1	Elec.Connect Locking Device	-
8	57M8944	1	Elec. Connector Housing	EQRL Harness
9	57M8944	1	Elec. Connector Housing	Front Console 2
9	57M8943	1	Elec.Connect Locking Device	-
9	57M7259	1	Elec. Connector Seal	-
10	R78054	1	Electrical Connector Assy	Convenience Outlet
11	57M7263	1	Elec. Connector Housing	Switch Rear Wiper
11	57M7291	1	Electrical Connector Assy	-
12	57M7255	1	Elec. Connector Housing	Dust Cap
12	57M7290	1	Elec. Connector Accessory	-
13	57M9432	12	Clamp	-
14	R77476	1	Electrical Connector Assy	Front Washer Pump
15	R77476	1	Electrical Connector Assy	Rear Washer Pump
16	57M7547	1	Elec. Connector Terminal	Junction Block Battery Power
17	57M7547	1	Elec. Connector Terminal	Junction Block Ground
18	57M7556	1	Elec. Connector Terminal	Junction Block Accessory Power
19	57M9199	1	Elec. Connector Terminal	Power Outlet (B)
20	57M9199	1	Elec. Connector Terminal	Power Outlet (A)
21	57M7328	1	Elec. Connector Housing	Seat Switch
21	57M7289	1	Elec.Connect Locking Device	-
22	57M8484	1	Elec. Connector Housing	Front Console 1
22	57M9919	1	Elec. Connector Accessory	-
23	-	1	Part 37	-
24	57M8281	1	Elec. Connector Housing	Front Console 3
24	57M11996	1	Elec. Connector Accessory	-
25	57M9152	1	Elec. Connector Housing	SUB FOR 57M8750
26	57M8756	4	Elec. Connector Accessory	-
27	57M8749	4	Elec. Connector Accessory	-
28	RE68327	4	Relay	-
29	57M9590	3	Clamp	-
30	R233410	1	Grommet	-
31	57M9437	1	Clamp	-
32	57M7260	1	Elec. Connector Housing	Implement Adjustment Switch
32	57M7291	1	Electrical Connector Assy	-
33	57M8279	1	Elec. Connector Housing	Roof Harness 1
33	57M11955	1	Elec. Connector Accessory	-
34	57M8416	1	Elec. Connector Housing	Roof Wiper Harness
34	57M7469	1	Electrical Connector Assy	-
35	57M9880	10	Relay	SUB FOR 57M8853
36	R233410	3	Grommet	-
37	RE186986	1	Junction Block	-

Cab Wiring Harness Connectors, SyncShuttle™

Нет текстового описания
