Открытый узел

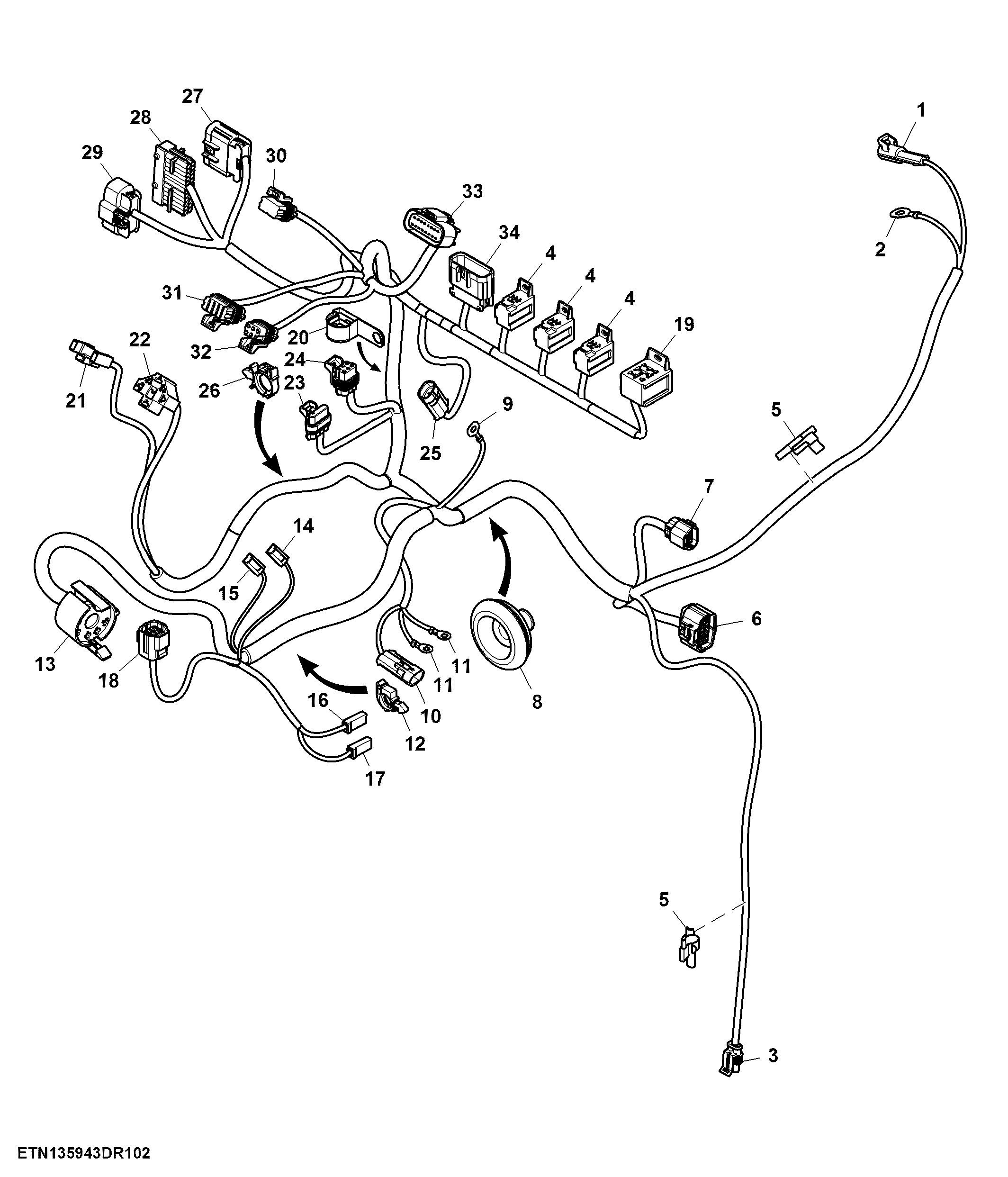

Cab Wiring Harness Connectors, 9 X 3

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7295	1	Elec.Connect Locking Device	-
1	57M7293	1	Elec. Connector Housing	A/C Compressor Clutch
2	57M7571	1	Elec. Connector Terminal	-
3	57M10497	1	Elec. Connector Housing	Fuel Transfer Pump Extension
4	Z61311	3	Elec. Connector Housing	Neutral Relay (K11)
5	57M11952	4	Elec. Connector Accessory	-
6	57M10495	1	Elec. Connector Housing	Engine Harness
7	57M8407	1	Elec. Connector Housing	Hood Harness
7	57M8417	1	Elec.Connect Locking Device	-
8	R138078	1	Grommet	-
9	57M8871	1	Elec. Connector Terminal	-
10	57M7256	1	Elec. Connector Housing	Start Relay Coil (K18)
10	57M7289	1	Elec.Connect Locking Device	-
11	57M7560	2	Elec. Connector Terminal	-
12	57M9636	4	Clip	-
13	RE46736	1	Electrical Connector Assy	Key Switch
13	57M9153	1	Elec.Connect Locking Device	-
14	57M8815	1	Elec. Connector Housing	Horn Switch (A)
15	57M8815	1	Elec. Connector Housing	Horn Switch (B)
16	57M8815	1	Elec. Connector Housing	Brake Pedal Switch (A)
17	57M8815	1	Elec. Connector Housing	Brake Pedal Switch (C)
18	RE46736	1	Electrical Connector Assy	Light Switch
19	57M7182	1	Elec. Connector Housing	Diode Module
20	57M9412	1	Clamp	-
21	57M7183	1	Elec. Connector Accessory	Turn Signal Switch
22	RE46735	1	Electrical Connector Assy	Wiper Switch
23	57M7469	1	Electrical Connector Assy	-
23	57M7840	1	Elec. Connector Housing	FNR Switch
24	57M7260	1	Elec. Connector Housing	Clutch Assembly
24	57M7291	1	Electrical Connector Assy	-
25	57M7256	1	Elec. Connector Housing	Audible Alarm
25	57M7289	1	Elec.Connect Locking Device	-
26	57M12365	2	Elec. Connector Accessory	-
27	57M10717	1	Elec. Connector Housing	Cab Harness 1
27	57M9919	1	Elec. Connector Accessory	-
28	57M7259	1	Elec. Connector Seal	-
28	57M8076	1	Elec. Connector Terminal	-
28	57M8943	1	Elec.Connect Locking Device	-
28	57M8070	1	Elec. Connector Housing	Cab Harness 2
29	57M8156	1	Elec. Connector Housing	Cab Harness 3
29	57M11996	1	Elec. Connector Accessory	-
30	57M7261	1	Elec. Connector Housing	Instrumentation J3
30	57M7296	1	Elec. Connector Accessory	-
31	57M7262	1	Elec. Connector Housing	Instrumentation J1
31	57M8907	1	Elec.Connect Locking Device	-
32	57M7260	1	Elec. Connector Housing	Instrumentation J2
32	57M7291	1	Electrical Connector Assy	-
33	57M8484	1	Elec. Connector Housing	Instrumentation J4
33	57M9919	1	Elec. Connector Accessory	-
34	57M8281	1	Elec. Connector Housing	Module Harness
34	57M11996	1	Elec. Connector Accessory	-

Cab Wiring Harness Connectors, 9 X 3

Нет текстового описания
