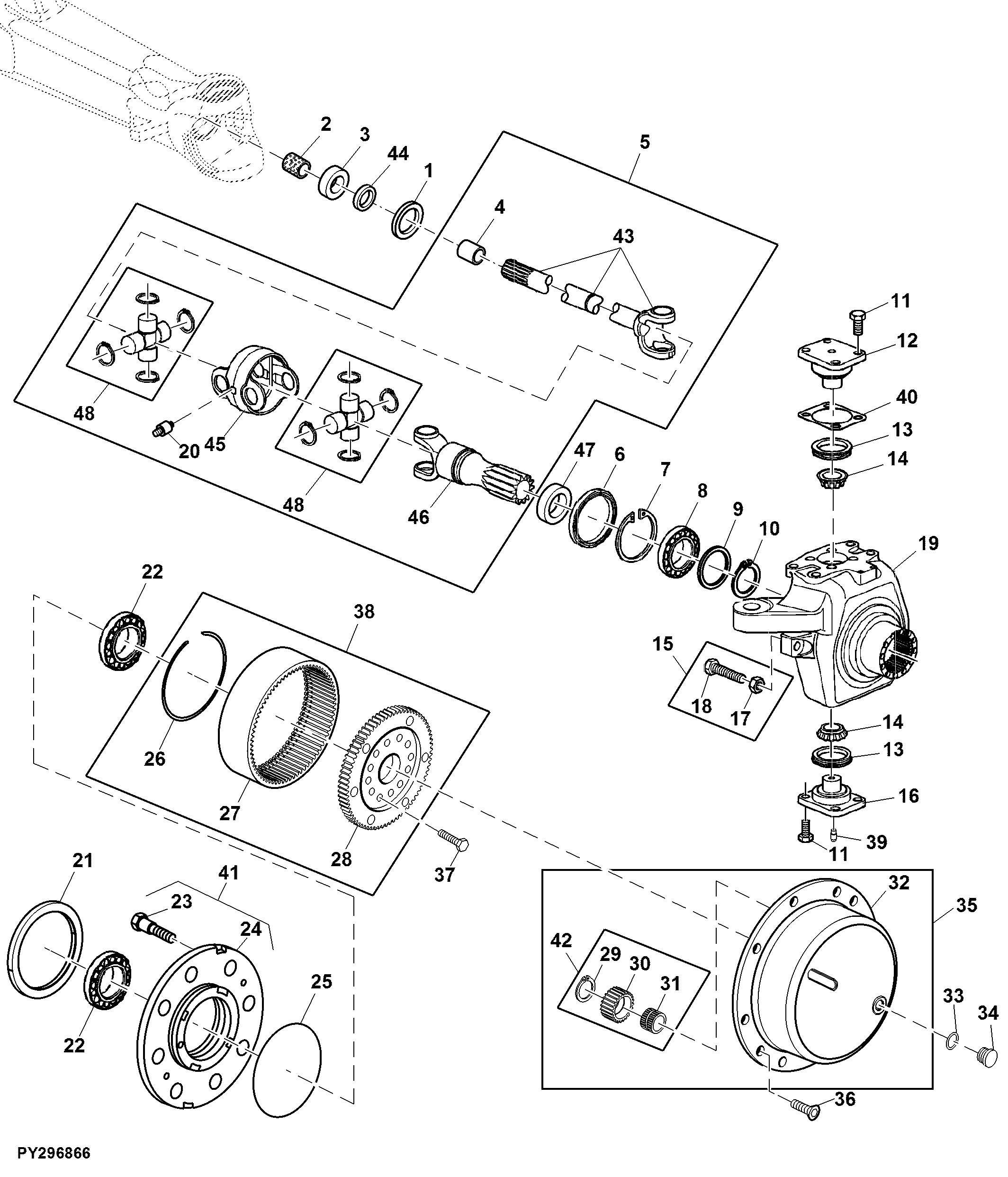

Front Axle Hub, Planetary Drive and Knuckle Assembly, MFWD (011053 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R282389	2	Cover	-
2	R271391	2	Bushing	-
3	RE282355	2	Seal	-
4	L114652	2	Bushing	-
5	RE282356	2	Universal Joint With Shaft	-
6	RE282357	2	Seal	-
7	40M7115	2	Snap Ring	-
8	RE272342	2	Ball Bearing	-
9	L157610	2	Disk	-
10	40M7166	2	Snap Ring	-
11	L157635	16	Bolt	-
12	R282358	2	Kingpin	-
13	RE271398	4	Seal	-
14	RE272374	4	Bearing	-
15	RE271406	2	Bolt Kit	-
16	R282359	2	Kingpin	-
17	14M7260	2	Nut	M16
18	L157587	2	Screw	-
19	R271409	1	Housing	RH
19	R271410	1	Housing	LH
20	58M5574	2	Lubrication Fitting	-
21	AL159594	2	Seal	-
22	RE272375	4	Bearing	-
23	R271411	16	Stud	-
24	R271412	2	Hub	-
25	L157607	2	Ring	-
26	L157620	2	Snap Ring	-
27	R271413	2	Ring Gear	-
28	R271414	2	Hub	-
29	40M7013	6	Snap Ring	-
30	R271416	6	Gear	-
31	RE271420	6	Cylindrical Roller Bearing	-
32	R271422	2	Planet Pinion Carrier	-
33	L157598	2	Disk	-
34	L169940	2	Drain Plug	-
35	RE271421	2	Gear Kit	INCLUDES (2) R271422, RE271426
36	L157625	4	Screw	-
37	L156892	24	Bolt	-
38	RE271423	2	Gear Kit	-
39	58M5575	4	Lubrication Fitting	-
40	RE271424	1	Shim Kit	-
41	RE271425	2	Hub Kit	-
42	RE271426	6	Gear Kit	-
43	R271429	2	Universal Joint Yoke	Differential Side
44	RE282386	2	Seal	-
45	R282384	2	Housing	-
46	R271433	2	Universal Joint Yoke	Reduction Side
47	RE282385	2	Seal	-
48	RE271430	4	Universal Joint Cross	-

Front Axle Hub, Planetary Drive and Knuckle Assembly, MFWD (011053 - )
