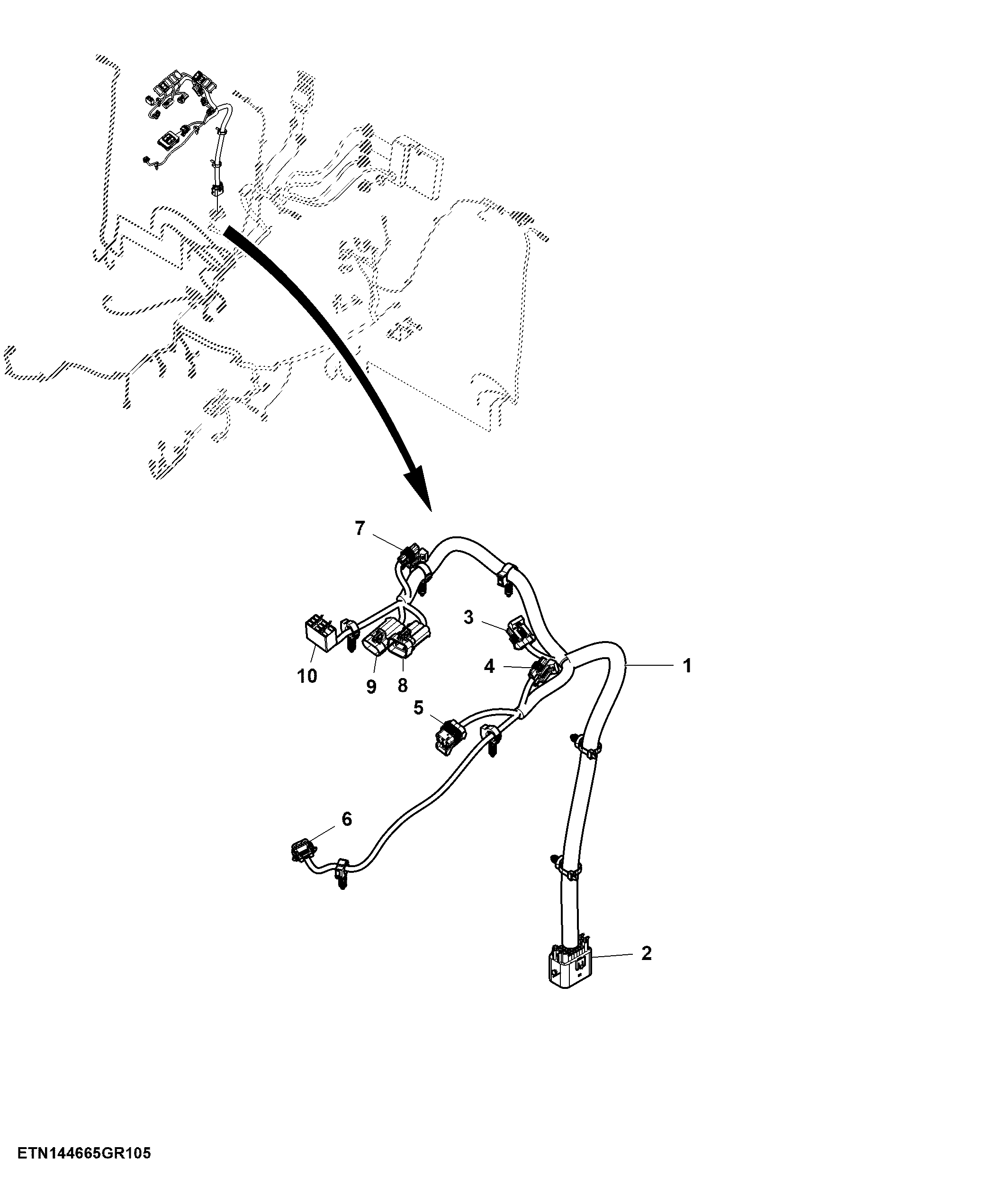

Rear Wiring Harness, SyncShuttle™, Stage 3B (5 / 5)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ27731	1	Wiring Harness	Console Pigtail, RH
2	57M10370	1	Elec. Connector Housing	RH Console to Rear Interconnect, XX5_1
2	57M9042	4	Elec. Connector Terminal	Cavity 1, 8, 15, 22
2	57M8952	19	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 7, 9, 10, 11, 12, 13, 14, 16, 17, 18, 19, 20, 21, 23
2	57M7400	4	Elec. Connector Seal	Cavity 1, 8, 15, 22
2	57M7402	19	Elec. Connector Cable Seal	Cavity 2, 3, 4, 5, 6, 7, 9, 10, 11, 12, 13, 14, 16, 17, 18, 19, 20, 21, 23
2	57M7403	10	Elec. Connector Cavity Plug	Cavity 24, 25, 26, 27, 28, 30, 31, 32, 33, 34
2	57M7401	2	Elec. Connector Cavity Plug	Caviity 29, 36
3	57M10770	3	Elec. Connector Terminal	Cavity A - B
3	57M9215	3	Elec. Connector Seal	Cavity A - B
3	57M7290	1	Elec. Connector Accessory	-
3	57M7255	1	Elec. Connector Housing	Beacon Light Switch, XS8
4	57M7255	1	Elec. Connector Housing	Trailer Park Brake Test Switch, XS36
4	57M7290	1	Elec. Connector Accessory	-
4	57M10770	3	Elec. Connector Terminal	Cavity A - B
4	57M9215	3	Elec. Connector Seal	Cavity A - B
4	57M7259	3	Elec. Connector Seal	-
4	57M7257	1	Elec. Connector Housing	-
5	57M9215	6	Elec. Connector Seal	Cavity A - F
5	57M10770	6	Elec. Connector Terminal	Cavity A - F
5	57M7260	1	Elec. Connector Housing	Quick Raise /Lower Switch, XS17
5	57M7291	1	Electrical Connector Assy	-
6	57M7255	1	Elec. Connector Housing	Hand Throttle, XR5
6	57M7290	1	Elec. Connector Accessory	-
6	57M10770	3	Elec. Connector Terminal	Cavity A - B
6	57M9215	3	Elec. Connector Seal	Cavity A - B
7	57M7255	1	Elec. Connector Housing	Work Lamp Switch, XS6
7	57M7290	1	Elec. Connector Accessory	-
7	57M10770	3	Elec. Connector Terminal	Cavity A - B
7	57M9215	3	Elec. Connector Seal	Cavity A - B
8	57M7291	1	Electrical Connector Assy	-
8	57M7259	1	Elec. Connector Seal	Cavity D
8	57M9215	5	Elec. Connector Seal	Cavity A, B, C, E, F
8	57M7252	5	Elec. Connector Terminal	Cavity A, B, C, E, F
8	57M7263	1	Elec. Connector Housing	PTO Enable Switch, XS45
9	57M7257	1	Elec. Connector Housing	MFWD Switch, XS33
9	57M7290	1	Elec. Connector Accessory	-
9	57M9546	2	Elec. Connector Terminal	Cavity A, C
9	57M9215	2	Elec. Connector Seal	Cavity A, C
9	57M7259	1	Elec. Connector Seal	Cavity B
10	57M10771	1	Elec. Connector Housing	Rear PTO Switch, XS3
10	57M11036	3	Elec. Connector Terminal	Cavity 1, 4, 7
