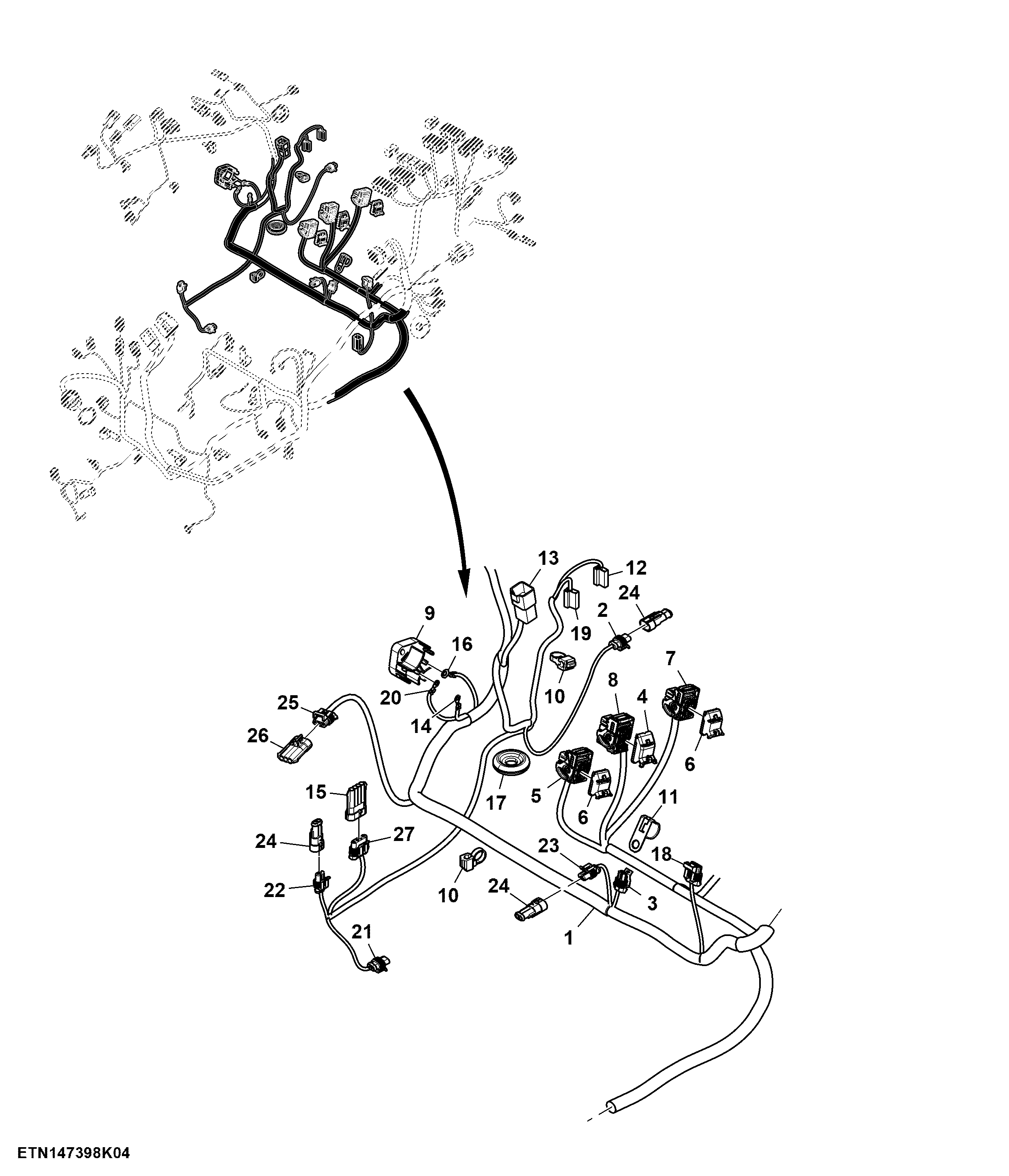

Cab Wiring Harness, W/ PowrReverser™ and PowrReverser™ Plus (4/6)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ26855	1	Wiring Harness	Rear Cab
2	57M7937	1	Electrical Connector Assy	Trailer Brake Solenoid, XY8
2	57M7938	2	Elec. Connector Terminal	Cavity 1, 2
2	57M8571	2	Elec. Connector Terminal	Cavity 1, 2
2	57M7401	2	Elec. Connector Cavity Plug	-
2	57M14424	1	Elec. Connector Housing	-
3	57M7328	1	Elec. Connector Housing	Seat Switch, XS26_1
3	57M10770	2	Elec. Connector Terminal	Cavity A, B
3	57M9215	2	Elec. Connector Seal	Cavity A, B
4	57M10613	1	Elec. Connector Housing	-
5	57M10606	1	Elec. Connector Housing	Flex Box Controller J3, XA5_3
5	57M10330	4	Elec. Connector Terminal	Cavity A3, B4, C2, C4
5	57M10333	20	Elec. Connector Cavity Plug	Cavity A1, A2, A4, B1, B2, B3, C1, C3, D1, D2, D3, D4, E1, E2, E3, E4, F1, F2, F3, F4
5	57M10334	8	Elec. Connector Cavity Plug	Cavity G1, G2, G3, G4, H1, H2, H3, H4
6	57M10604	2	Elec. Connector Housing	-
7	57M10334	5	Elec. Connector Cavity Plug	Cavity G1, G2, G3, H3, H4
7	57M10333	13	Elec. Connector Cavity Plug	Cavity A1, A2, C4, D1-D4, E3, E4, F1-F4
7	57M10514	1	Elec. Connector Terminal	Cavity A3
7	57M10330	11	Elec. Connector Terminal	Cavity A4, B1-B4, C1-C3, D4, E1, E2
7	57M10609	1	Elec. Connector Housing	Flex Box Controller J1, XA5_1
7	57M10331	2	Elec. Connector Terminal	Cavity G4, H1, H2
8	57M10615	1	Elec. Connector Housing	Flex Box Controller J2, XA5_2
8	57M10331	6	Elec. Connector Terminal	Cavity L1, L2, M1, M2, M3, M4
8	57M10330	7	Elec. Connector Terminal	Cavity A3, B3, C4, E2, J2, J4, K3,
8	57M10514	2	Elec. Connector Terminal	Cavity A1, B1
8	57M10333	31	Elec. Connector Cavity Plug	Cavity A2, A4, B2, B4, C1, C2, C3, D1, D2, D3, D4, E1, E3, E4, F1, F2, F3, F4, G1, G3, G4, H1, G2, H2, H3, H4, J1, J3, K1, K2, K4
8	57M10334	2	Elec. Connector Cavity Plug	Cavity L3, L4
9	RE186986	1	Junction Block	-
10	CB01483609	14	Tie Band	-
11	57M9425	1	Clamp	-
12	57M7144	1	Elec. Connector Housing	Rear Washer Pump, XM9
12	57M8888	2	Elec. Connector Terminal	Cavity A, B
13	57M11359	1	Elec. Connector Housing	CNVC Outlet, XX4
13	57M8260	3	Elec. Connector Terminal	Cavity 1, 2, 3
13	R78069	1	Elec. Connector Cavity Plug	Cavity 4
14	57M14143	1	Elec. Connector Terminal	Junction Block, X3_1
15	57M8415	1	Elec. Connector Housing	-
16	57M12322	1	Elec. Connector Terminal	Junction Block, X3_2
17	SU30075	1	Grommet	-
18	57M7255	1	Elec. Connector Housing	Hand Brake Switch, XS41
18	57M10770	3	Elec. Connector Terminal	Cavity A, B, C
18	57M9215	3	Elec. Connector Seal	Cavity A, B, C
19	57M7144	1	Elec. Connector Housing	Front Washer Pump, XM7
19	57M8888	2	Elec. Connector Terminal	Cavity A, B
20	57M14143	1	Elec. Connector Terminal	Junction Block, X3_3
21	57M8571	2	Elec. Connector Terminal	Cavity 1, 2
21	57M7938	2	Elec. Connector Terminal	Cavity 1, 2
21	57M7937	1	Electrical Connector Assy	EQRL Motor, XM3
22	57M7937	1	Electrical Connector Assy	Loader Joystick Power, X37_2
22	57M7401	2	Elec. Connector Cavity Plug	-
22	57M14424	1	Elec. Connector Housing	-
22	57M8571	2	Elec. Connector Terminal	Cavity 1, 2
22	57M7938	2	Elec. Connector Terminal	Cavity 1, 2
23	57M7937	1	Electrical Connector Assy	Seat Height Control Switch, XS26_2
23	57M7938	2	Elec. Connector Terminal	Cavity 1, 2
23	57M8571	2	Elec. Connector Terminal	Cavity 1, 2
23	57M7401	2	Elec. Connector Cavity Plug	-
23	57M14424	1	Elec. Connector Housing	-
24	57M14424	3	Elec. Connector Housing	-
25	57M7255	1	Elec. Connector Housing	Trailer Park Brake Test Switch, XS36
25	57M7290	1	Elec. Connector Accessory	-
25	57M7259	3	Elec. Connector Seal	-
25	57M10770	3	Elec. Connector Terminal	Cavity A, B, C
25	57M9215	3	Elec. Connector Seal	Cavity A, B, C
26	57M7257	1	Elec. Connector Housing	-
27	57M8416	1	Elec. Connector Housing	Hi-Low Shift Joystick, X37_1
27	57M7469	1	Electrical Connector Assy	-
27	57M7259	4	Elec. Connector Seal	-
27	57M10770	3	Elec. Connector Terminal	Cavity A, B, C
27	57M9215	3	Elec. Connector Seal	Cavity A, B, C
