Открытый узел

Console Wiring Harness, PowrReverser™, IOOS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ16882	1	Wiring Harness	-
2	19M7775	4	Screw	M6 X 16
3	21M6070	7	Screw	M5 X 16
4	AL202581	1	Relay Module	SUB FOR AL32891
5	SJ15809	4	Relay	SUB FOR LVA13711
6	RE234727	1	Starter Relay	-
7	RE262484	1	Diode	-
8	RE271147	1	Bracket	-
9	RE271149	1	Switch	-
10	14M7272	2	Nut	M6
11	RE224163	1	Alarm System	-
12	RE68327	2	Relay	-
13	SJ19202	1	Wiring Harness	-
14	19M7784	1	Screw	M10 X 20
15	14M7296	1	Flange Nut	M10
16	19M7785	1	Screw	M10 X 25
17	57M10490	1	Elec. Connector Housing	Key Switch
18	57M10283	2	Elec. Connector Accessory	-
19	57M9212	4	Clip	-
20	57M10499	1	Elec. Connector Housing	I/C Hood
21	57M7255	1	Elec. Connector Housing	Beacon Switch
22	57M8070	1	Elec. Connector Housing	I/C Transmission
23	57M7840	1	Elec. Connector Housing	FNR Switch
24	57M10717	1	Elec. Connector Housing	-
25	57M7260	2	Elec. Connector Housing	Clutch Assembly
26	57M7262	1	Elec. Connector Housing	-
27	57M7985	1	Electrical Connector Assy	Roll Mode Switch
28	57M11162	1	Elec. Connector Housing	Light Switch
29	57M9776	1	Elec. Connector Housing	-
30	57M7261	1	Elec. Connector Housing	-
31	57M7170	2	Elec. Connector Housing	Brake Switch
32	57M7937	1	Electrical Connector Assy	Audible Alarm
33	57M7170	1	Elec. Connector Housing	Ground
34	57M7170	2	Elec. Connector Housing	Horn Switch
35	57M7170	3	Elec. Connector Housing	Combinational Switch
36	57M7255	1	Elec. Connector Housing	Power Shuttle Pot
37	SU36146	1	Clamp	-
38	57M10995	1	Elec. Connector Housing	-
39	57M10495	1	Elec. Connector Housing	-
40	57M8291	1	Elec. Connector Terminal	-

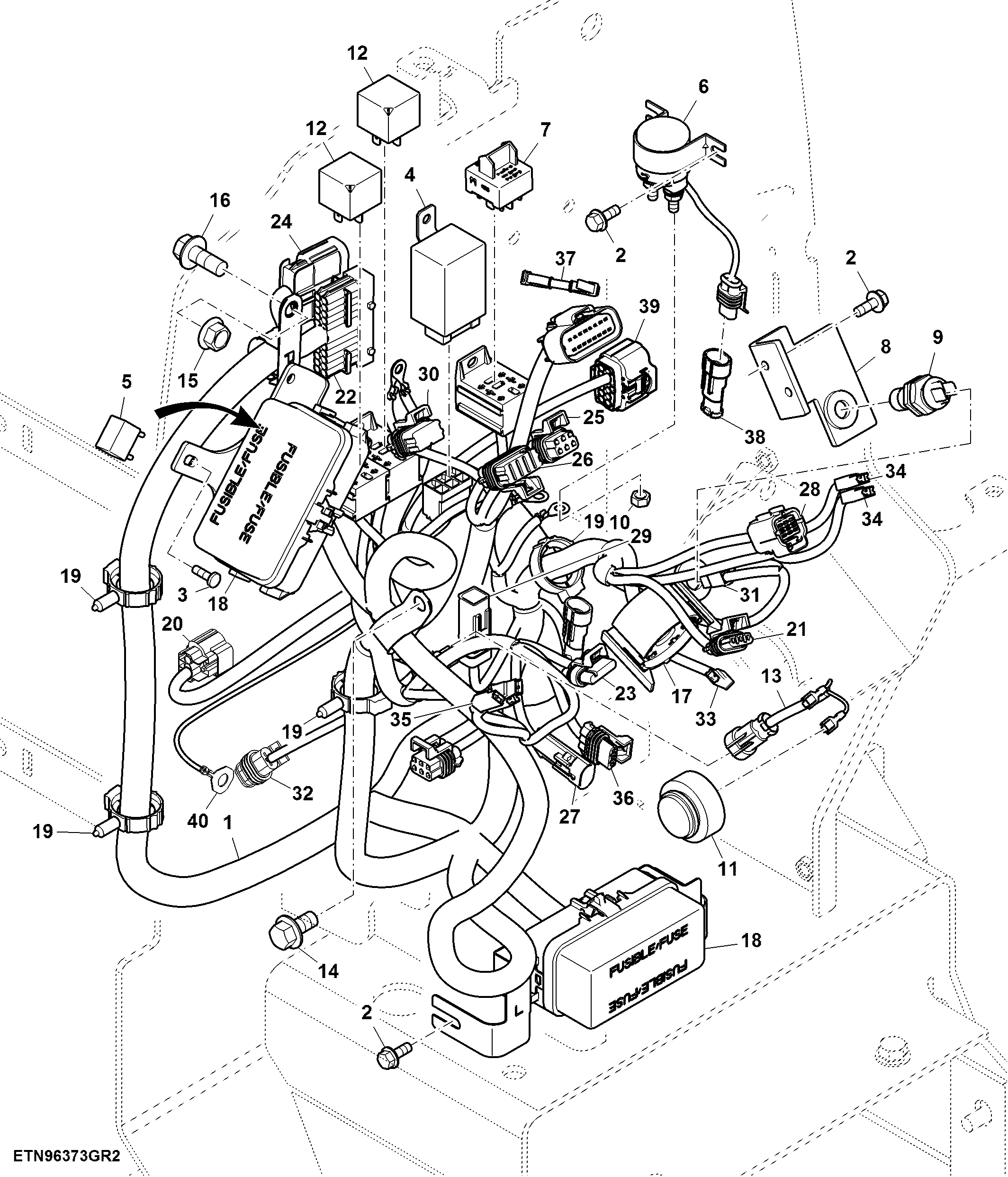

Console Wiring Harness, PowrReverser™, IOOS
