Clutch Pedal and Linkage, Electro Hydraulic, Cab

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12M7127	1	Disk Spring	25.400 X 50 X 1.250 mm
2	14M7139	2	Nut	M4
3	SU31115	1	Strap	-
4	SU40720	3	Spacer	-
5	19M7811	1	Screw	M10 X 90
6	19M8945	1	Screw	M6 X 110
7	21M7252	2	Screw	M4 X 16
8	21M7474	2	Screw	M4 X 32
9	24M7029	1	Shim	TK =0.50 mm
10	37M7307	5	Screw	M3 X 8
11	55M7013	1	Ball Stud	-
12	99M7130	1	Plug	-
13	AL158036	1	Wiring Harness	Clutch Control
14	AL175216	1	Sensor	Rotary Position
15	L115028	1	Washer	-
16	L115989	1	Washer	-
17	L150023	1	Screw	-
18	L150079	1	Bumper	-
19	L150084	1	Washer	-
20	L150085	1	Shield	-
21	L150087	1	Adapter Fitting	USE WITH R223781
22	L150088	1	Torsion Spring	-
23	L153355	1	Leaf Spring	-
24	L153777	1	Bracket	Clutch Pedal
25	L156822	1	Ball Joint	-
26	L157681	1	Lever	-
27	M113074	1	Screw	-
28	R223781	1	Extension Spring	ORDER SJ30528
29	T24802	1	Clip	-
30	SJ28429	1	Pedal	SUB FOR SJ11599
31	L150082	1	Bushing	-
32	SU294711	1	Hose	LGTH = 85.00 mm, USE WITH R223781
33	L150594	1	Stop	-
34	SJ30528	1	Spring	-
35	57M7263	1	Elec. Connector Housing	X322M
35	57M7291	1	Electrical Connector Assy	-
35	57M7252	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
35	57M9214	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
36	57M7953	1	Electrical Connector Assy	X328F
36	57M7954	6	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6
36	57M7955	6	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6

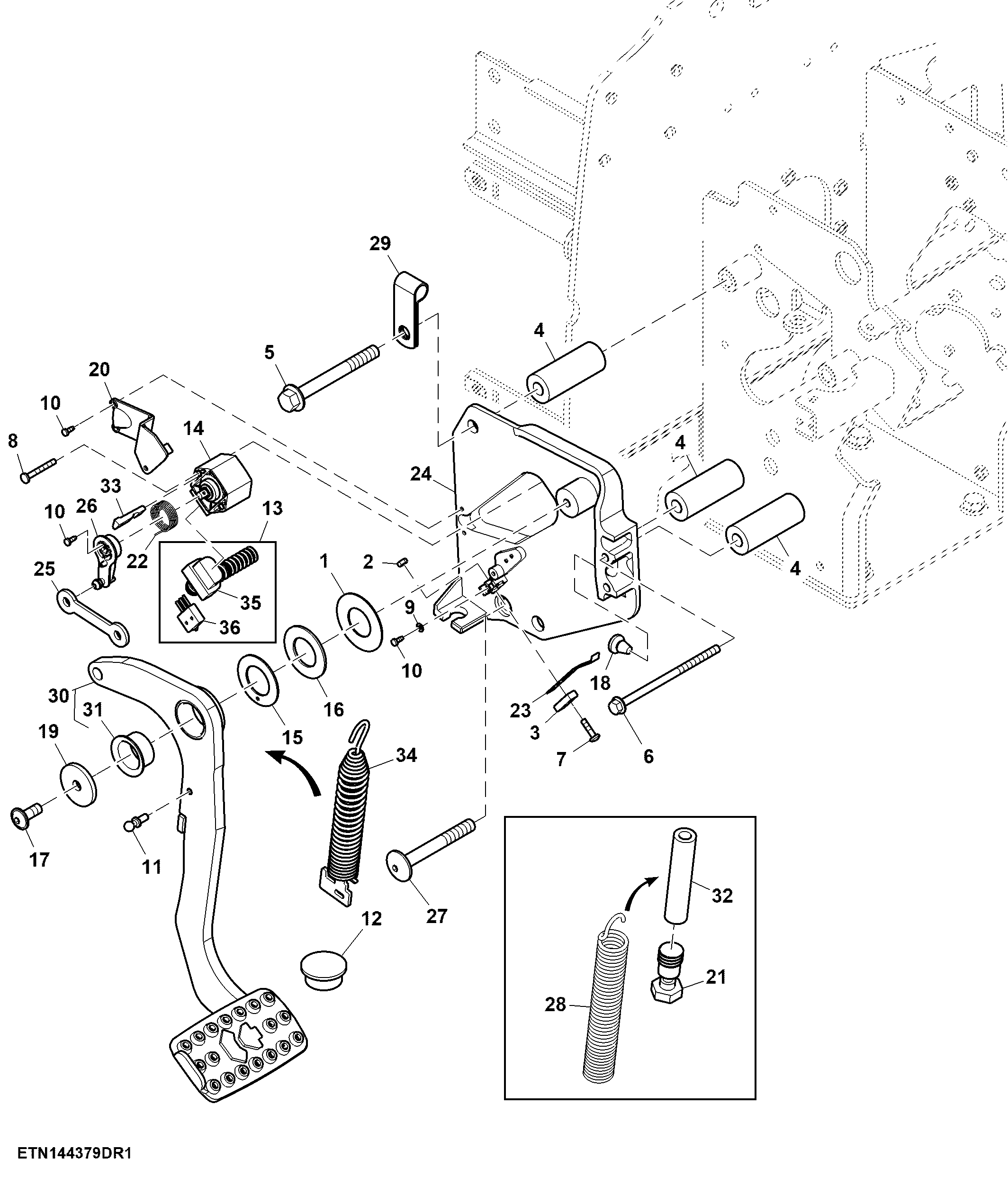

Clutch Pedal and Linkage, Electro Hydraulic, Cab

Нет текстового описания
