Rear Wiring Harness, SyncShuttle™, Stage 3A (3 / 4)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ25987	1	Wiring Harness	Rear
2	57M10370	1	Elec. Connector Housing	Rear to Console Interconnect, XXC_1
2	57M7403	3	Elec. Connector Cavity Plug	Cavity 20, 34, 35
2	57M7400	2	Elec. Connector Seal	Cavity 15, 29
2	57M7402	11	Elec. Connector Cable Seal	Cavity 9, 10, 11, 12, 16, 17, 23, 24, 27, 28, 33
2	57M8241	16	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 7, 13, 14, 18, 19, 21, 25, 26, 30, 31, 32
2	57M7399	4	Elec. Connector Seal	Cavity 1, 8, 22, 36
2	57M9042	2	Elec. Connector Terminal	Cavity 15, 29
2	57M8952	27	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 7, 9, 10, 11, 12, 13, 14, 16, 17, 18, 19, 21, 23, 24, 25, 26, 27, 28, 30, 31, 32, 33
2	57M10371	4	Elec. Connector Terminal	Cavity 1, 8, 22, 36
3	57M11575	1	Elec. Connector Housing	Rear to Console Interconnect, XXC_2
3	57M10788	10	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 8, 9, 10, 11
3	57M14774	2	Elec. Connector Seal	Cavity 7, 12
4	57M7937	1	Electrical Connector Assy	Brake Oil Presence Switch, XB3
4	57M8571	2	Elec. Connector Terminal	Cavity 1 - 2
4	57M7938	2	Elec. Connector Terminal	Cavity 1 - 2
5	57M7937	1	Electrical Connector Assy	Fuel Pump, XM2
5	57M8571	2	Elec. Connector Terminal	Cavity 1 - 2
5	57M10083	2	Elec. Connector Cable Seal	Cavity 1 - 2
6	57M12324	1	Elec. Connector Terminal	Ground, XGND3
7	57M12324	1	Elec. Connector Terminal	Ground, XGND4
8	RE12363	1	Electrical Connector Assy	Gear Lever Neutral Switch, XS2
8	57M7251	2	Elec. Connector Terminal	Cavity A - B
8	57M9219	2	Elec. Connector Seal	Cavity A - B
9	RE12363	1	Electrical Connector Assy	Park Switch, XS32
9	57M7251	2	Elec. Connector Terminal	Cavity A - B
9	57M9219	2	Elec. Connector Seal	Cavity A - B
10	57M7938	2	Elec. Connector Terminal	Cavity 1 - 2
10	57M8571	2	Elec. Connector Terminal	Cavity 1 - 2
10	57M7937	1	Electrical Connector Assy	EQRL Motor, XM3
11	57M7937	1	Electrical Connector Assy	Loader Joystick, XS37
11	57M7401	2	Elec. Connector Cavity Plug	-
11	57M8571	2	Elec. Connector Terminal	Cavity 1 - 2
11	57M7938	2	Elec. Connector Terminal	Cavity 1 - 2
12	57M14424	1	Elec. Connector Housing	-
13	H224073	1	Tie Band	-
14	RE345761	1	Swivel	-
15	57M9206	10	Clip	-
16	57M8824	1	Elec. Connector Accessory	-

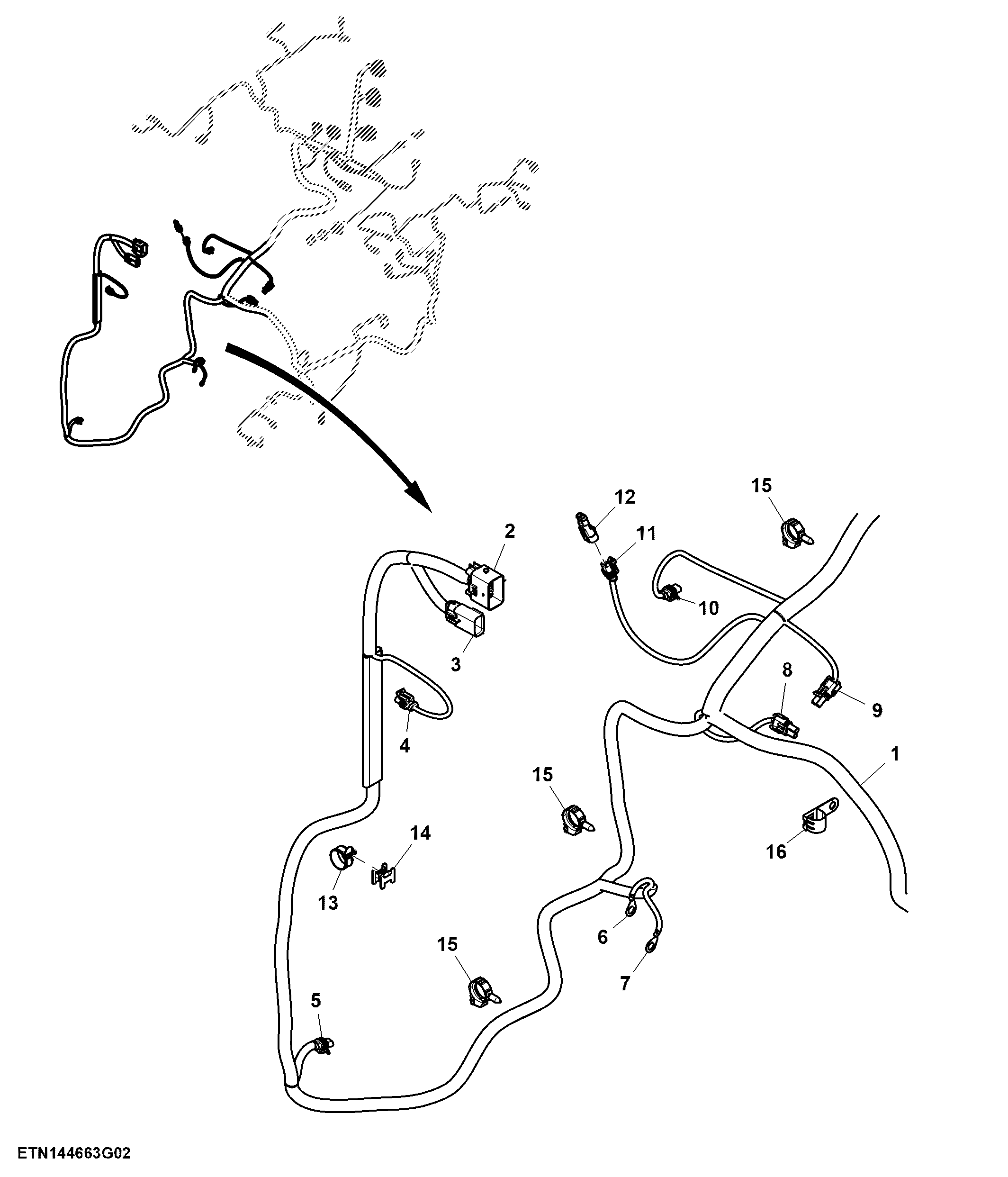

Rear Wiring Harness, SyncShuttle™, Stage 3A (3 / 4)
