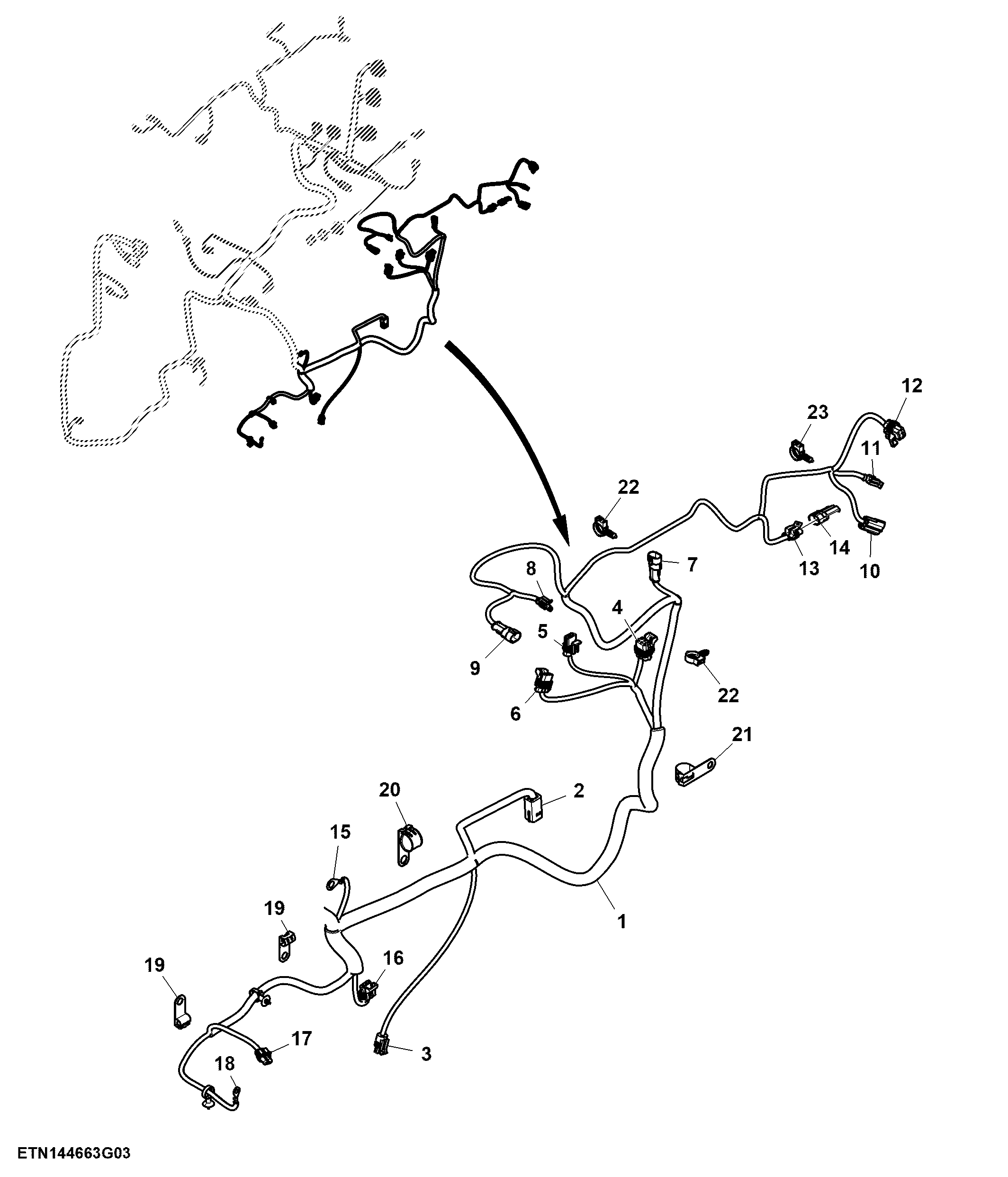

Rear Wiring Harness, SyncShuttle™, Stage 3A (2 / 4)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ25987	1	Wiring Harness	Rear
2	57M10017	1	Elec. Connector Housing	Rear PTO Switch, XS3
2	57M12709	1	Elec. Connector Accessory	-
2	57M10059	5	Elec. Connector Terminal	Cavity 2 - 5
2	57M8568	5	Elec. Connector Seal	Cavity 2 - 5
2	57M8420	1	Elec. Connector Seal	Cavity 1
3	57M7850	1	Elec. Connector Housing	MFWD Solenoid, XY1
3	57M7829	2	Elec. Connector Terminal	Cavity A - B
4	57M7260	1	Elec. Connector Housing	Trailer Connector, XX7_1
4	57M7291	1	Electrical Connector Assy	-
4	57M10770	5	Elec. Connector Terminal	Cavity A - E
4	57M9215	5	Elec. Connector Seal	Cavity A - E
4	57M7259	1	Elec. Connector Seal	Cavity F
5	57M9218	2	Elec. Connector Seal	Cavity A - B
5	57M7298	2	Elec. Connector Terminal	Cavity A - B
5	57M7306	1	Elec.Connect Locking Device	-
5	57M7309	1	Elec. Connector Housing	Trailer Connector, XX7_2
6	57M7255	1	Elec. Connector Housing	Hand Brake Switch, XS38
6	57M7290	1	Elec. Connector Accessory	-
6	57M10770	3	Elec. Connector Terminal	Cavity A - C
6	57M9215	3	Elec. Connector Seal	Cavity A - C
7	57M14424	1	Elec. Connector Housing	Beacon Lamp, XE2
7	57M9059	2	Elec. Connector Terminal	Cavity 1 - 2
7	57M7938	2	Elec. Connector Terminal	Cavity 1 - 2
8	57M10020	1	Elec. Connector Housing	Left Front Fender Lamp, XE7_2
8	57M8571	1	Elec. Connector Terminal	Cavity 1
8	57M7938	1	Elec. Connector Terminal	Cavity 1
9	57M14424	1	Elec. Connector Housing	Left Front Fender Lamp, XE7_1
9	57M9059	2	Elec. Connector Terminal	Cavity 1 - 2
9	57M7938	2	Elec. Connector Terminal	Cavity 1 - 2
10	57M8568	3	Elec. Connector Seal	Cavity 1 - 3
10	57M10019	1	Elec. Connector Housing	Left Rear Fender Lamp, XE10_1
10	57M12742	1	Elec. Connector Accessory	-
10	57M10059	3	Elec. Connector Terminal	Cavity 1 - 3
11	57M10020	1	Elec. Connector Housing	Left Rear Fender Lamp, XE10_2
11	57M8571	1	Elec. Connector Terminal	Cavity 1
11	57M7938	1	Elec. Connector Terminal	Cavity 1
12	57M7260	1	Elec. Connector Housing	Implement Adjustment Switch, XS18
12	57M7291	1	Electrical Connector Assy	-
12	57M10770	6	Elec. Connector Terminal	Cavity A - F
12	57M9215	6	Elec. Connector Seal	Cavity A - F
13	57M7254	1	Elec. Connector Housing	License Plate Lamp, XE8
13	57M7259	2	Elec. Connector Seal	-
13	57M10770	2	Elec. Connector Terminal	Cavity A - B
13	57M9215	2	Elec. Connector Seal	Cavity A - B
14	57M7256	1	Elec. Connector Housing	-
15	57M9535	1	Elec. Connector Terminal	Fuel Tank Ground, XGND8
16	57M7255	1	Elec. Connector Housing	Wheel Speed Sensor, XB14
16	57M7290	1	Elec. Connector Accessory	-
16	57M7494	3	Elec. Connector Terminal	Cavity A - C
16	57M9214	3	Elec. Connector Seal	Cavity A - C
17	57M7937	1	Electrical Connector Assy	Fuel Level Sender, XB1
17	57M8571	2	Elec. Connector Terminal	Cavity 1 - 2
17	57M7938	2	Elec. Connector Terminal	Cavity 1 - 2
18	57M12318	1	Elec. Connector Terminal	Fuel Tank Ground, XGND7
19	57M9437	2	Clamp	-
20	57M9503	1	Clamp	-
21	57M8824	1	Elec. Connector Accessory	-
22	57M8902	4	Clip	-
23	57M8903	10	Clip	-

Rear Wiring Harness, SyncShuttle™, Stage 3A (2 / 4)

Нет текстового описания
