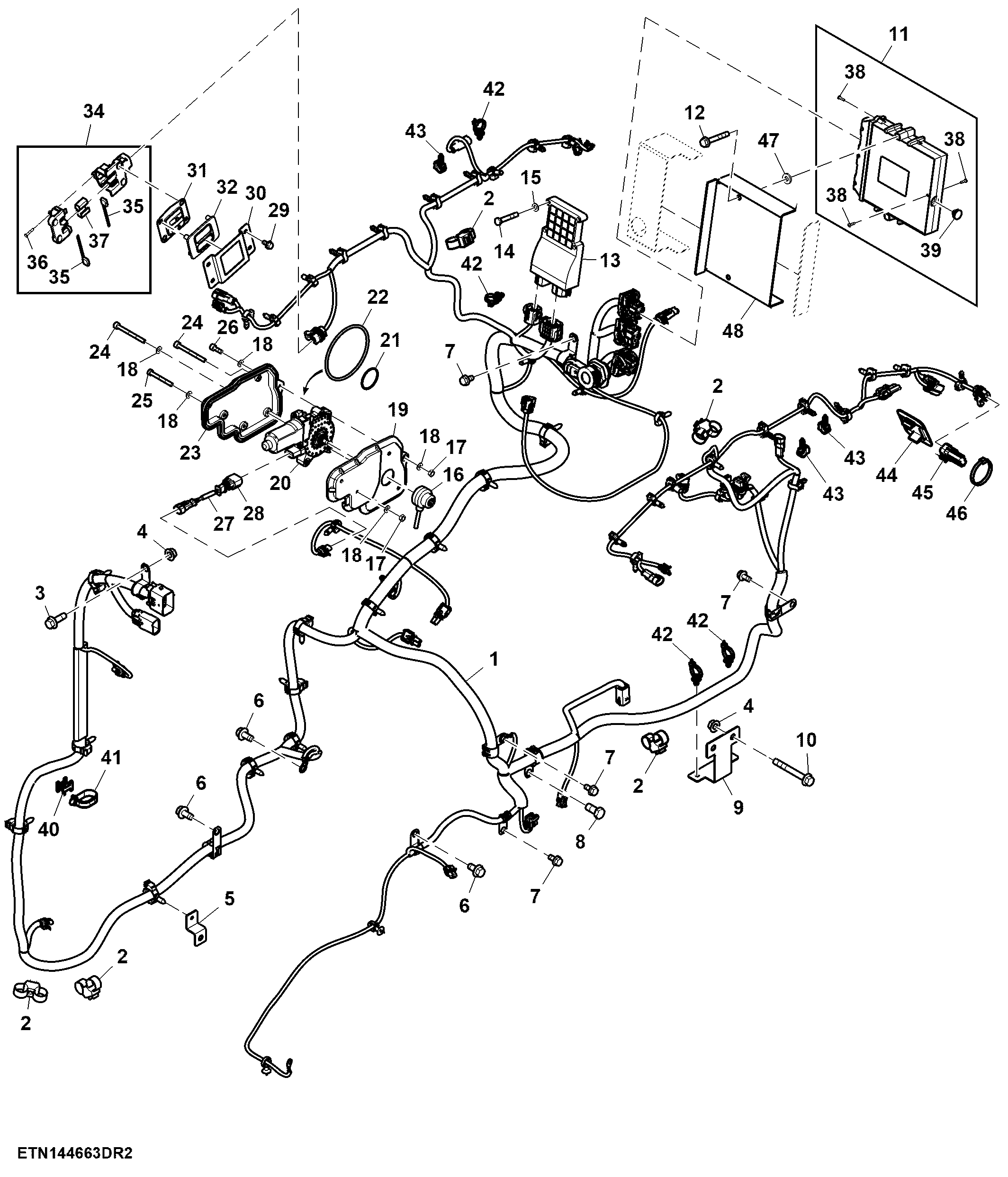

Rear Wiring Harness, SyncShuttle™, Stage 3A (1 / 4)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ25987	1	Wiring Harness	Rear
2	R213663	5	Clamp	-
3	19M7786	1	Screw	M10 X 30
4	14M7296	3	Flange Nut	M10
5	SU48162	1	Bracket	Rear Harness Support
6	19M7784	3	Screw	M10 X 20
7	19M7865	4	Screw	M8 X 16
8	19M7268	1	Cap Screw	M12 X 25
9	SU65545	1	Bracket	SUB FOR SU50694
10	19M7810	2	Screw	M10 X 80
11	SJ290320	1	Electronic Control Unit	-
12	19M7979	2	Screw	M8 X 55
13	SJ41366	1	Electronic Control Unit	EQRL Controller, SUB FOR SJ17002
14	19M7317	4	Screw	M5 X 30
15	24M7027	4	Washer	5.300 X 10 X 1 mm
16	SJ301631	1	Mounting Parts	-
17	14M7139	3	Nut	M4
18	24M7117	16	Washer	4.300 X 9 X 0.800 mm
19	SU40714	1	Cover	Front
20	SJ301628	1	Electric Motor	-
21	H35244	1	Ring	-
22	R274003	1	O-Ring	-
23	SU40715	1	Cover	Rear
24	R184736	3	Socket Head Screw	-
25	19M9034	2	Screw	M4 X 35
26	19M9054	1	Screw	M4 X 12
27	SJ12695	1	Wiring Harness	QRL Motor Pig Tail
28	57M11101	1	Elec. Connector Housing	-
29	19M7774	4	Screw	M6 X 12
30	SU22114	1	Cover	QRL Switch
31	L169912	2	Boot	-
32	R234273	2	Frame	-
33	37M7411	8	Screw	-
34	AL172871	2	Control	-
35	AL81777	4	Elec. Connector Terminal	-
36	37M7235	2	Screw	-
37	L168608	2	Clip	-
38	R174379	4	Screw	-
39	R174380	1	Plug	-
40	RE345761	1	Swivel	-
41	H224073	1	Tie Band	-
42	57M13563	4	Elec. Connector Accessory	-
43	57M8903	3	Clip	-
44	R206454	1	Plug	-
45	SJ41267	1	Wiring Harness	EQRL Jumper Pigtail
46	R139946	1	Tie Band	-
47	24H1292	2	Washer	11/32" X 3/4" X 0.120"
48	SU27504	1	Bracket	-
