Открытый узел

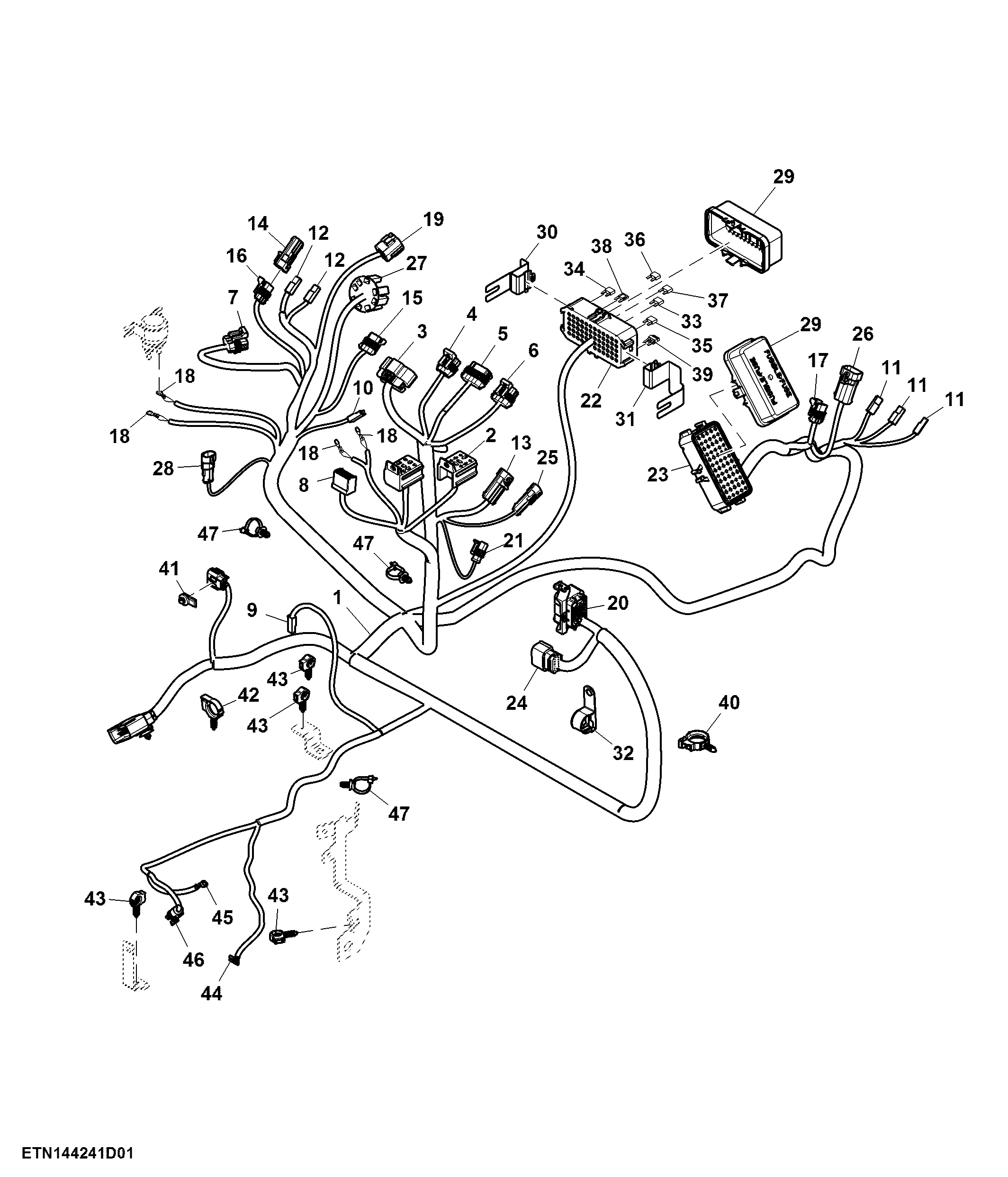

Console Wiring Harness Connectors, SyncShuttle™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ25986	1	Wiring Harness	-
2	57M10993	1	Elec. Connector Housing	Trailer Power Relay
3	57M8484	1	Elec. Connector Housing	-
4	57M7260	1	Elec. Connector Housing	-
5	57M7262	1	Elec. Connector Housing	-
6	57M7261	1	Elec. Connector Housing	Instrument Cluster
7	57M7261	1	Elec. Connector Housing	Brake Pedal Switch
8	L39317	1	Elec. Connector Terminal	-
9	57M7170	1	Elec. Connector Housing	Coolent Temp Sensor
10	57M7170	1	Elec. Connector Housing	Key Switch
11	57M7170	3	Elec. Connector Housing	Combination Switch
12	57M7170	2	Elec. Connector Housing	Horn Switch
13	57M7257	1	Elec. Connector Housing	MFWD Switch
14	57M7257	1	Elec. Connector Housing	Trailer Park Brake Test Switch
15	57M7255	1	Elec. Connector Housing	Beacon Light Switch
16	57M7255	1	Elec. Connector Housing	Trailer Park Brake Test Switch
17	57M7255	1	Elec. Connector Housing	Work Lamp Switch
18	57M12318	4	Elec. Connector Terminal	-
19	57M12319	1	Elec. Connector Housing	-
20	57M10369	1	Elec. Connector Housing	Console to Rear Interconnect
21	57M7937	1	Electrical Connector Assy	Audible Alarm
22	57M12332	1	Elec. Connector Accessory	Load Center 1
23	57M12332	1	Elec. Connector Accessory	Load Center 2
24	57M11576	1	Elec. Connector Housing	Console to Rear Interconnect
25	57M7985	1	Electrical Connector Assy	Roll Mode Switch
26	57M7263	1	Elec. Connector Housing	PTO Enable Switch
27	L78202	1	Elec. Connector Housing	Key Switch
28	57M14424	1	Elec. Connector Housing	Starter Relay
29	57M10283	2	Elec. Connector Accessory	-
30	R286317	1	Bracket	-
31	R286316	1	Bracket	-
32	57M8827	1	Clamp	-
33	57M7689	11	Fuse	10 A
34	57M8163	1	Fuse	30 A
35	57M8623	1	Fuse	25 A
36	57M7691	5	Fuse	20 A
37	57M7690	2	Fuse	15 A
38	57M7688	3	Fuse	5 A
39	RE180265	3	Diode	-
40	57M9206	2	Clip	-
41	57M13017	1	Elec. Connector Accessory	Console to Hood Interconnect
42	57M8908	2	Clip	-
43	57M8903	6	Clip	-
44	57M8728	1	Elec. Connector Terminal	Oil Pressure Switch
45	57M10066	1	Elec. Connector Terminal	Fuel Shutoff Solenoid
46	57M7850	1	Elec. Connector Housing	Engine Magnetic Pickup
47	57M13563	5	Elec. Connector Accessory	-

Console Wiring Harness Connectors, SyncShuttle™

Нет текстового описания
