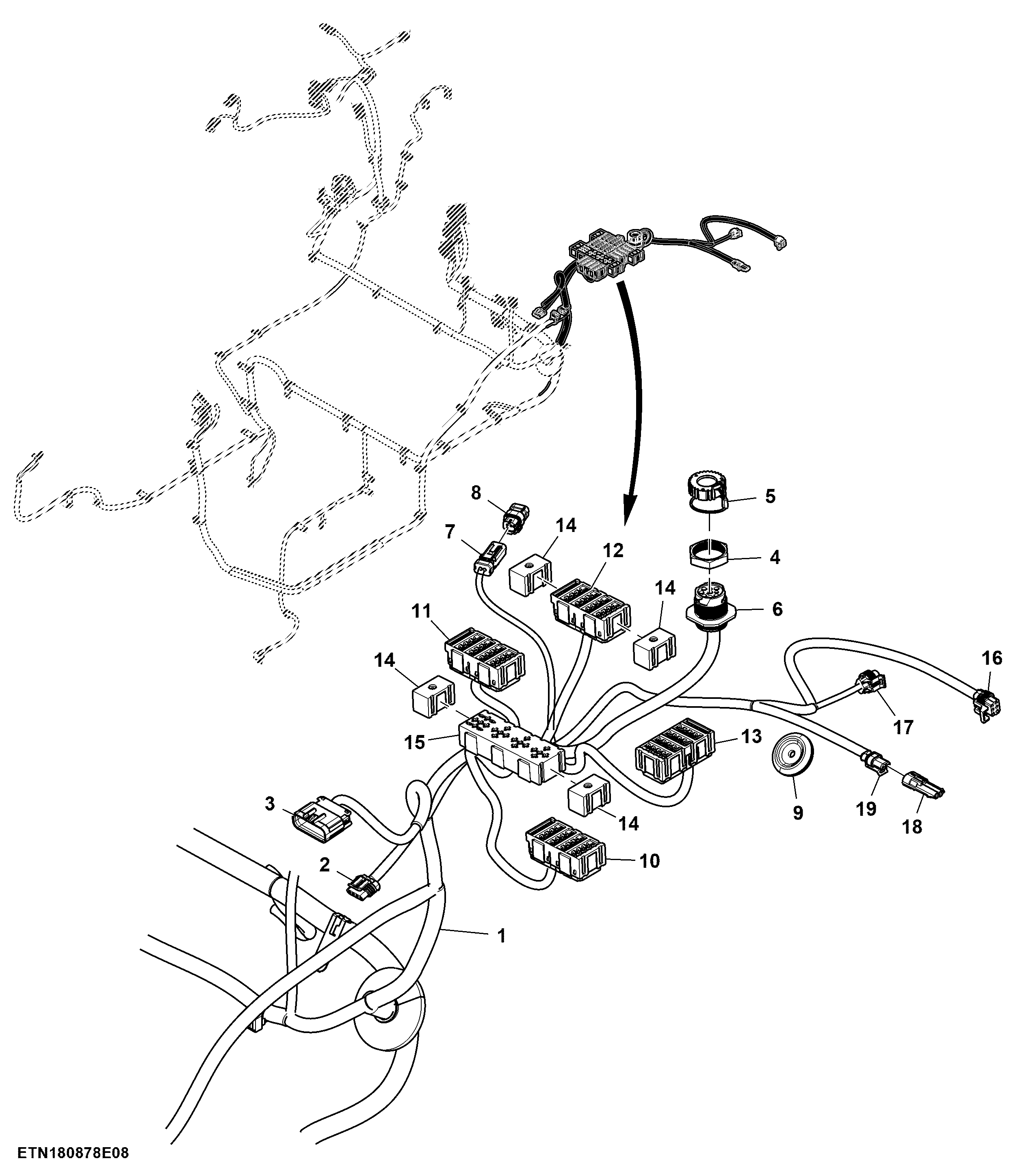

Cab Wiring Harness, W/ EQRL Controller (7/7)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ31923	1	Wiring Harness	Rear Wiring Harness
2	57M8416	1	Elec. Connector Housing	Front Wiper Pigtail Interconnect, XXR_7
2	57M9215	4	Elec. Connector Seal	Cavity A, B, C, D
2	57M10770	4	Elec. Connector Terminal	Cavity A, B, C, D
2	57M7469	1	Electrical Connector Assy	-
3	57M14074	1	Elec. Connector Housing	Rear to Roof Interconnect, XXR_4
3	57M14081	6	Elec. Connector Terminal	Cavity A1, A10, B1, B10, C1, C10
3	57M14080	10	Elec. Connector Terminal	Cavity A3, A7, A8, B3, B4, B5, B6, B7, B8, B9
3	57M14079	2	Elec. Connector Terminal	Cavity A5, B2
3	57M8555	12	Elec. Connector Seal	Cavity A2, A4, A6, A9, C2, C3, C4, C5, C6, C7, C8, C9
4	57M9182	1	Nut	-
5	RE217864	1	Cap	-
6	57M9183	1	Elec. Connector Housing	Service Advisor Connector, XP1
6	57M8164	4	Elec. Connector Terminal	Cavity A, B, C, D
6	R78069	5	Elec. Connector Cavity Plug	Cavity E, F, G, H, J
7	57M9776	1	Elec. Connector Housing	CAN Terminator, XR3
7	57M9813	2	Elec. Connector Terminal	Cavity 1, 2
8	57M9772	1	Elec. Connector Housing	-
9	SU50685	1	Grommet	-
10	57M8756	1	Elec. Connector Accessory	Load Center 1, BLK1
10	57M8295	5	Elec. Connector Terminal	Cavity D2, D4, F4, H2, H4
10	57M8882	4	Elec. Connector Terminal	Cavity C1, C2, C3, C4
10	57M10973	5	Elec. Connector Terminal	Cavity B2, B4, D1, F2, G4
10	57M8298	7	Elec. Connector Terminal	Cavity B1, B3, D3, F1, F3, H1, H3
10	57M9138	4	Elec.Connect Locking Device	-
10	57M8163	5	Fuse	30 A
10	57M7691	4	Fuse	20 A
10	57M7690	3	Fuse	15 A
10	57M7689	4	Fuse	10 A
11	57M8881	3	Elec. Connector Terminal	Cavity C2, E1, G1
11	57M8295	11	Elec. Connector Terminal	Cavity B2, B3, B4, D3, D4, F2, F3, F4, H2, H3, H4
11	57M10973	4	Elec. Connector Terminal	Cavity B1, D1, F1, H1
11	57M8880	8	Elec. Connector Terminal	Cavity A2, A4, C4, E2, E3, G2, G3, G4
11	57M9138	3	Elec.Connect Locking Device	-
11	57M8163	2	Fuse	30 A
11	57M7690	1	Fuse	15 A
11	57M7689	8	Fuse	10 A
11	57M7688	3	Fuse	5 A
11	AN205067	1	Diode	1 A
11	57M8756	1	Elec. Connector Accessory	Load Center 2, BLK2
11	57M7691	1	Fuse	20 A
12	57M9142	1	Elec. Connector Accessory	-
12	57M10973	1	Elec. Connector Terminal	Cavity D2
12	57M8295	7	Elec. Connector Terminal	Cavity D1, D3, D4, F1, F2, F3, F4
12	57M8880	7	Elec. Connector Terminal	Cavity A1, A2, A4, C1, C2, C3, G2
12	57M9138	4	Elec.Connect Locking Device	-
12	57M8760	6	Elec. Connector Accessory	-
12	57M8756	1	Elec. Connector Accessory	Load Center 3, BLK3
13	57M8880	12	Elec. Connector Terminal	Cavity A1, A2, A3, A4, C3, E1, E3, E4, G1, G3, J2, J4
13	57M8881	4	Elec. Connector Terminal	Cavity G2, G4, J1, J3
13	57M8295	11	Elec. Connector Terminal	Cavity B1, B2, B3, B4, D1, D2, D3, D4, F2, F3, F4
13	57M9138	4	Elec.Connect Locking Device	-
13	57M9142	1	Elec. Connector Accessory	-
13	57M8760	3	Elec. Connector Accessory	-
13	57M8623	1	Fuse	25 A
13	57M7691	1	Fuse	20 A
13	57M7690	1	Fuse	15 A
13	57M7689	2	Fuse	10 A
13	57M7688	2	Fuse	5 A
13	57M8756	1	Elec. Connector Accessory	Load Center 5, BLK5
13	57M8163	1	Fuse	30 A
14	57M8749	4	Elec. Connector Accessory	-
15	57M9152	1	Elec. Connector Housing	Load Center 4, BLK4
15	57M9153	16	Elec.Connect Locking Device	-
15	RE194287	1	Fuse Holder	-
15	57M7512	8	Elec. Connector Terminal	Cavity R1-30, R1-87, R2-30, R2-87, R3-30, R3-87, R4-30, R4-87
15	57M7511	8	Elec. Connector Terminal	Cavity R1-85, R1-86, R2-85, R2-86, R3-85, R3-86, R4-30, R4-86
16	57M7260	1	Elec. Connector Housing	Implement Adjustment Switch, XS18
16	57M9215	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
16	57M10770	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
16	57M7291	1	Electrical Connector Assy	-
17	57M7349	1	Elec. Connector Accessory	Left Tail / Brake / Turn Lamp, XE27
17	57M7347	1	Elec. Connector Accessory	-
17	57M10770	4	Elec. Connector Terminal	Cavity A, B, C, D
17	57M9215	4	Elec. Connector Seal	Cavity A, B, C, D
18	57M7256	1	Elec. Connector Housing	-
19	57M10497	1	Elec. Connector Housing	License Plate Lamp, XE24
19	57M7259	2	Elec. Connector Seal	-
19	57M9712	2	Elec. Connector Accessory	-
19	57M10770	2	Elec. Connector Terminal	Cavity A, B
19	57M9215	2	Elec. Connector Seal	Cavity A, B
