Cab Wiring Harness, W/ EQRL Controller (2/7)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ31921	1	Wiring Harness	Console Wiring Harness
2	57M7937	1	Electrical Connector Assy	Fuel Pump, XM2
2	57M7938	2	Elec. Connector Terminal	Cavity 1, 2
2	57M8571	2	Elec. Connector Terminal	Cavity 1, 2
3	57M11952	4	Elec. Connector Accessory	-
4	57M7293	1	Elec. Connector Housing	A/C Compressor Clutch, XM6
4	57M7295	1	Elec.Connect Locking Device	-
4	57M7285	1	Elec. Connector Terminal	Cavity A
4	57M9219	1	Elec. Connector Seal	Cavity A
5	57M14140	1	Elec. Connector Terminal	Ground, XGND10
6	57M10495	1	Elec. Connector Housing	Console to Front Interconnect, XXE
6	57M12986	1	Elec. Connector Accessory	-
6	57M8135	11	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 8, 9, 10, 11, 12
6	57M10081	11	Elec. Connector Cable Seal	Cavity 1, 2, 3, 4, 5, 6, 8, 9, 10, 11, 12
6	57M8420	1	Elec. Connector Seal	Cavity 7
7	57M8417	1	Elec.Connect Locking Device	-
7	57M10081	3	Elec. Connector Cable Seal	Cavity 1, 2, 3
7	57M8135	3	Elec. Connector Terminal	Cavity 1, 2, 3
7	57M8246	1	Elec. Connector Housing	Console to Hood Interconnect, XXH
8	R138078	1	Grommet	-
9	57M8827	1	Clamp	-
10	57M8902	4	Clip	-
11	57M14747	1	Elec. Connector Terminal	Chassis Ground, XGND11
12	57M7560	1	Elec. Connector Terminal	Starter Relay, XK3_2
13	57M7560	1	Elec. Connector Terminal	Starter Relay, XK3_1
14	57M10350	1	Elec. Connector Housing	Starter Relay, XK3_3
14	57M9059	2	Elec. Connector Terminal	Cavity 1, 2
14	57M7938	2	Elec. Connector Terminal	Cavity 1, 2
15	57M7833	6	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6
15	57M8135	6	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6
15	57M12319	1	Elec. Connector Housing	Light Switch, XS5
15	57M12708	1	Elec. Connector Accessory	-
16	R77480	1	Electrical Connector Assy	Horn Switch, XS16
16	57M8888	2	Elec. Connector Terminal	Cavity A, B
17	57M7170	1	Elec. Connector Housing	Brake Pedal Switch A, XS35_R1_1
17	57M10073	1	Elec. Connector Terminal	Cavity A
18	57M7170	1	Elec. Connector Housing	Brake Pedal Switch C, XS35_R1_2
18	57M10073	1	Elec. Connector Terminal	Cavity A
19	57M7985	1	Electrical Connector Assy	Roll Mode Switch, XS15
19	57M9214	2	Elec. Connector Seal	Cavity A, B
19	57M9546	2	Elec. Connector Terminal	Cavity A, B
19	57M9712	1	Elec. Connector Accessory	-
20	57M7183	1	Elec. Connector Accessory	Turn Switch, XS14
20	57M11328	3	Elec. Connector Terminal	Cavity 1, 2, 3
21	57M9214	3	Elec. Connector Seal	Cavity A, B, C
21	57M7259	3	Elec. Connector Seal	-
21	57M7494	3	Elec. Connector Terminal	Cavity A, B, C
21	57M7290	1	Elec. Connector Accessory	-
21	57M7255	1	Elec. Connector Housing	Power Shuttle Pot, XB9
22	57M7170	1	Elec. Connector Housing	Hazard Switch_Pin B, XS13_1
22	57M10073	1	Elec. Connector Terminal	Cavity A
23	57M7170	1	Elec. Connector Housing	Hazard Switch_Pin C, XS13_2
23	57M10073	1	Elec. Connector Terminal	Cavity A
24	57M7170	1	Elec. Connector Housing	Key Switch, XS1_2
24	57M10073	1	Elec. Connector Terminal	Cavity A
25	57M10490	1	Elec. Connector Housing	Key Switch, XS1_1
25	57M9153	7	Elec.Connect Locking Device	-
25	57M7429	7	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7
26	RE46735	1	Electrical Connector Assy	Front Wiper Switch, XS22
26	57M7429	7	Elec. Connector Terminal	Cavity 1, 2, 3, 4, L, B, P

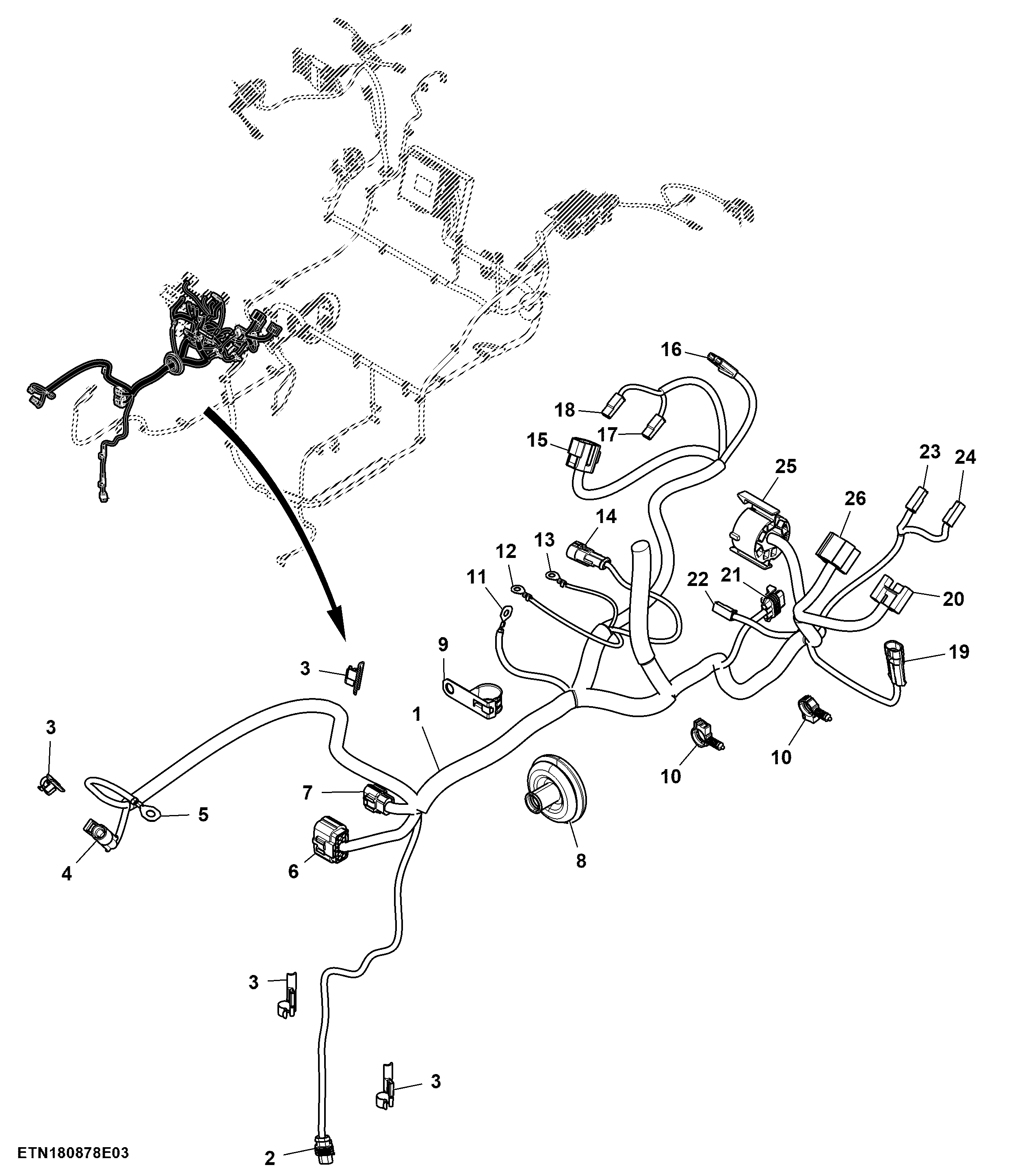

Cab Wiring Harness, W/ EQRL Controller (2/7)
