Cab Wiring Harness, W/ EQRL Controller (1/7)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M8649	4	Screw	M6 X 20
2	12M7122	1	Lock Washer	8.400 mm
3	19M7774	2	Screw	M6 X 12
4	SU26299	1	Bracket	Front Console
5	24M7117	16	Washer	4.300 X 9 X 0.800 mm
6	SJ29825	1	Relay	Start Relay W/ Diode
7	14M7273	2	Nut	M8
8	AL76702	3	Relay	10 A
9	L169912	2	Boot	Remote Switch
10	SJ31921	1	Wiring Harness	Front Console
11	RE49727	1	Horn	Indicator Warning
12	RE262484	1	Diode	9-Pin Block
13	SU30053	1	Cover	-
14	SJ31923	1	Wiring Harness	Rear
15	AL172871	2	Control	Remote Switch
16	37M7411	8	Screw	-
17	AL202581	1	Relay Module	Warning Flasher
18	37M7059	6	Screw	M5 X 12
19	R234273	2	Frame	Hitch Remote Switch
20	SJ290320	1	Electronic Control Unit	-
21	R174379	4	Screw	-
22	R174380	1	Plug	Flex Box Vent
23	14M7298	20	Flange Nut	M8
24	SU52001	1	Label	Fuse Box
25	R231112	4	Isolator	-
26	24M7251	4	Washer	6.400 X 18 X 1.600 mm
27	21M7265	2	Screw	M5 X 12
28	19M7317	4	Screw	M5 X 30
29	L115609	2	Screw	-
30	21M7251	2	Screw	M5 X 25
31	RE271149	1	Switch	Brake Light
32	SJ13964	1	Bracket	-
33	19M7784	1	Screw	M10 X 20
34	24M7027	4	Washer	5.300 X 10 X 1 mm
35	19M7077	2	Cap Screw	M6 X 20
36	RE160961	1	Toggle/Rocker Switch	PTO
37	37M7095	4	Screw	-
38	SJ37844	1	Wiring Harness	Outlet Jumper
39	SU20298	1	Strap	Convenience Outlet
40	SJ17002	1	Electronic Control Unit	EQRL Controller
41	SU61406	1	Cover	-
42	SU61405	1	Cover	-
43	SJ12695	1	Wiring Harness	QRL Motor Pig-Tail
44	SJ301631	1	Mounting Parts	EQRL Coupler
45	SU40714	1	Cover	QRL Motor Front
46	SJ301628	1	Electric Motor	-
47	R274003	1	O-Ring	-
48	SU40715	1	Cover	QRL Motor Rear
49	H35244	1	Ring	-
50	19M9034	2	Screw	M4 X 35
51	14M7139	3	Nut	M4
52	R184736	3	Socket Head Screw	-
53	19M9054	1	Screw	M4 X 12
54	57M10497	1	Elec. Connector Housing	-
54	57M8571	1	Elec. Connector Terminal	Cavity 1
54	57M7938	1	Elec. Connector Terminal	Cavity 2
55	57M7254	1	Elec. Connector Housing	-
55	57M7289	1	Elec.Connect Locking Device	-
55	R104846	2	Elec. Connector Terminal	Cavity A, B
55	57M7258	2	Elec. Connector Seal	Cavity A, B
56	AL66414	1	Socket Outlet	-
57	57M11026	1	Elec. Connector Housing	-
57	57M8569	2	Elec. Connector Terminal	Cavity 2, 3
57	R78069	1	Elec. Connector Cavity Plug	Cavity 1
58	SJ15809	9	Relay	20 A
59	RE68327	4	Relay	40 A

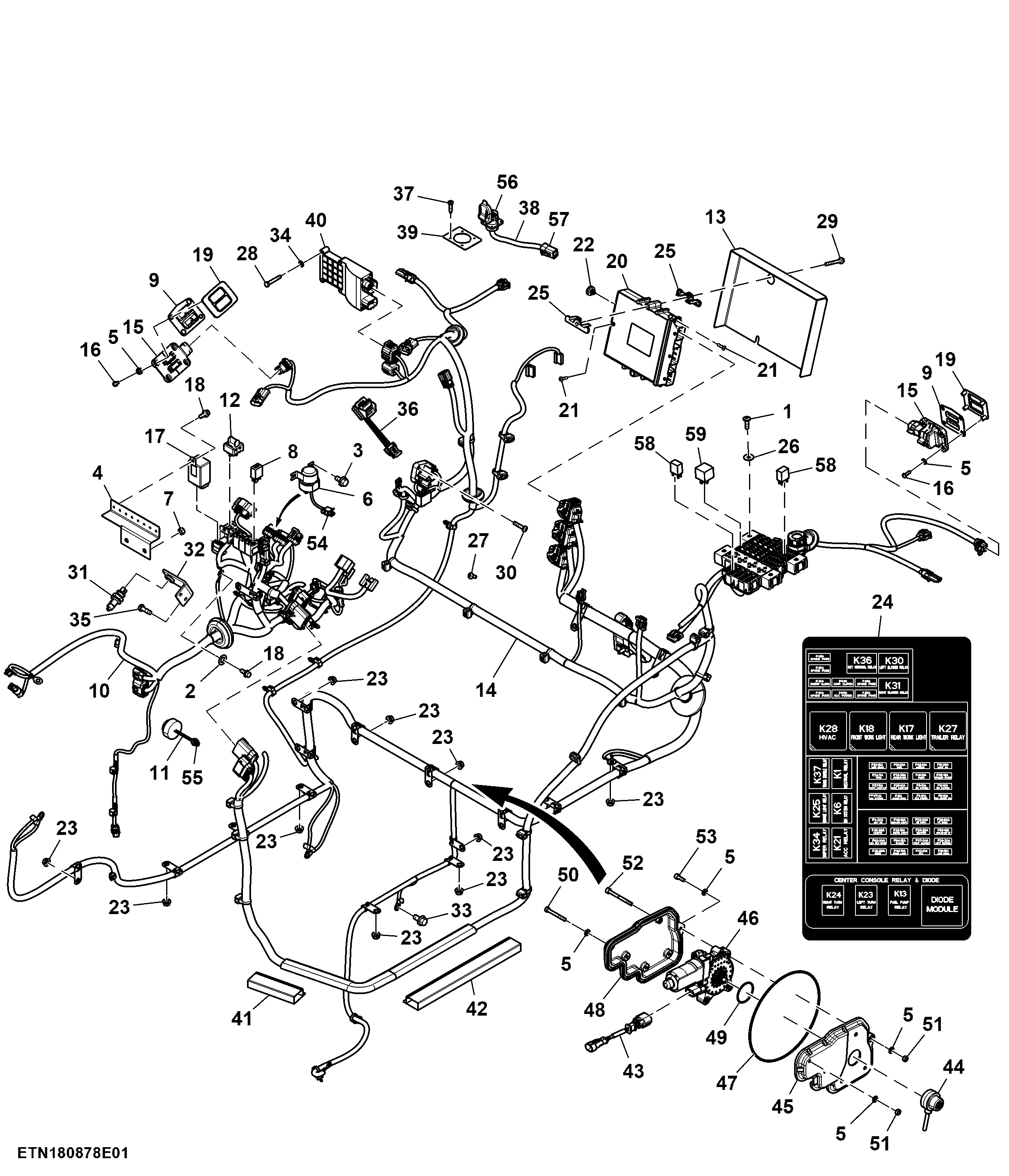

Cab Wiring Harness, W/ EQRL Controller (1/7)
