Открытый узел

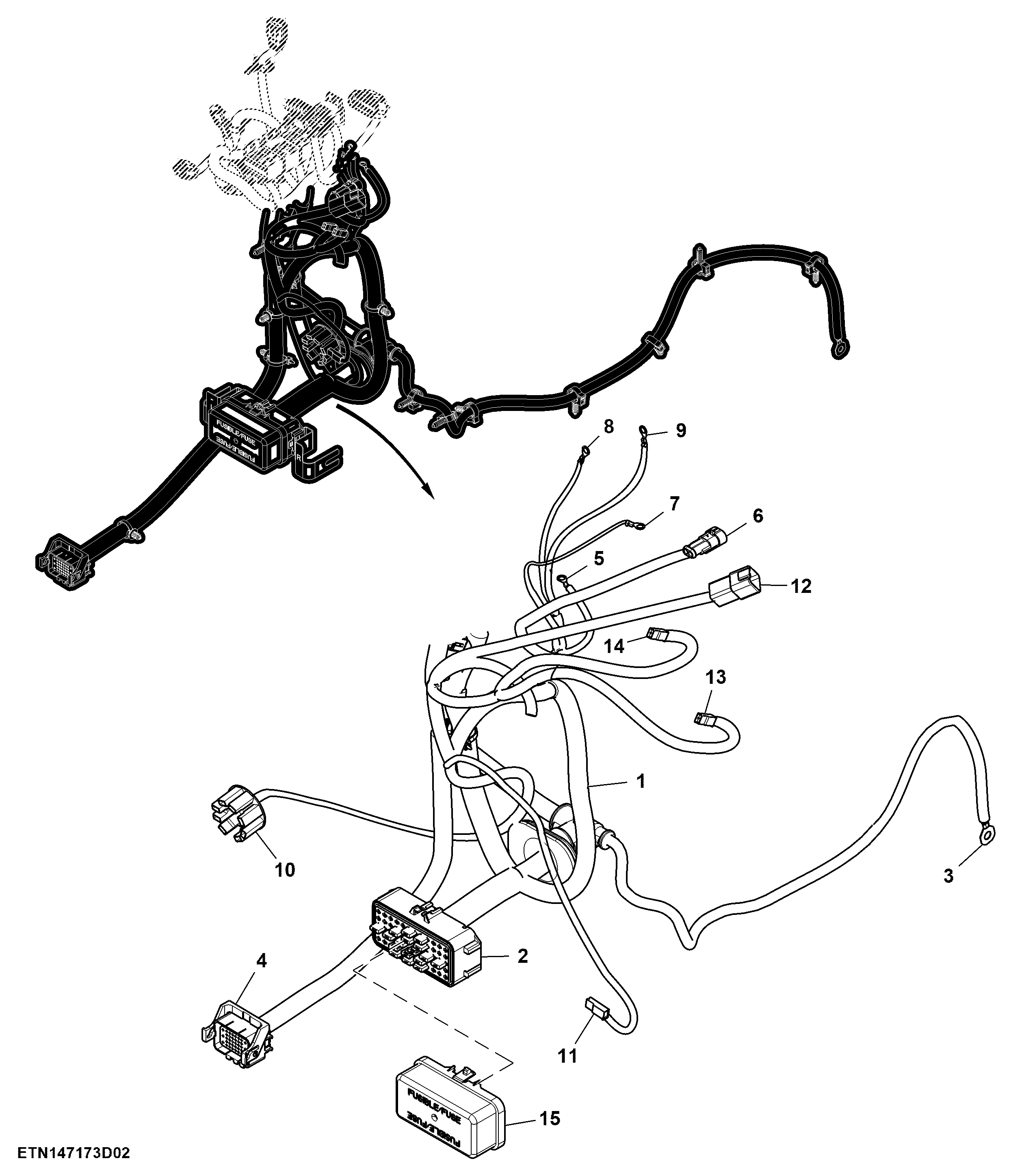

Console Wiring Harness, SyncShuttle™ (2/3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ26772	1	Wiring Harness	Console
2	57M12332	1	Elec. Connector Accessory	Load Center 1, X3
2	57M7401	8	Elec. Connector Cavity Plug	Cavity A2, A8, A9, A11, B2, B11, D2, D11
2	57M7399	17	Elec. Connector Seal	Cavity A4, A5, A6, A7, B4, B5, B6, B7, C5, C9, C10, C11, C12, D4, D5, E8, E9
2	57M7400	35	Elec. Connector Seal	Cavity A1, A3, A10, A12, B1, B3, B8, B9, B10, B12, C1, C2, C3, C4, C6, C7, C8, D1, D3, D6, D7, D8, D9, D10, D12, E1, E2, E3, E4, E5, E6, E7, E10, E11, E12
2	57M8585	17	Elec. Connector Terminal	Cavity A4, A5, A6, A7, B4, B5, B6, B7, C5, C9, C10, C11, C12, D4, D5, E8, E9
2	57M8584	35	Elec. Connector Terminal	Cavity A1, A3, A10, A12, B1, B3, B8, B9, B10, B12, C1, C2, C3, C4, C6, C7, C8, D1, D3, D6, D7, D8, D9, D10, D12, E1, E2, E3, E4, E5, E6, E7, E10, E11, E12
2	57M12152	1	Elec. Connector Accessory	-
3	57M14142	1	Elec. Connector Terminal	Maxi Fuse, XF1
4	57M10369	1	Elec. Connector Housing	Console to Rear Interconnector, XXC_1
4	57M9532	3	Elec. Connector Terminal	Cavity 1, 8, 15
4	57M8425	25	Elec. Connector Terminal	Cavity 2, 3, 5, 6, 7, 9, 10, 12, 13, 14, 17, 19, 20, 23, 24, 25, 26, 27, 28, 30, 31, 32, 33, 34, 35
4	57M7400	3	Elec. Connector Seal	Cavity 1, 8, 15
4	57M8241	11	Elec. Connector Terminal	Cavity 2, 3, 5, 6, 7, 9, 10, 17, 19, 23, 33
4	57M7402	14	Elec. Connector Cable Seal	Cavity 12, 13, 14, 20, 24, 25, 26, 27, 28, 30, 31, 32, 34, 35
4	57M7399	3	Elec. Connector Seal	Cavity 22, 29, 36
4	57M7403	5	Elec. Connector Cavity Plug	Cavity 4, 11, 16, 18, 21
5	57M12318	1	Elec. Connector Terminal	Starter Relay, XK3_2
6	57M9059	2	Elec. Connector Terminal	Cavity 1, 2
6	57M7938	2	Elec. Connector Terminal	Cavity 1, 2
6	57M14424	1	Elec. Connector Housing	Starter Relay, XK3_1
7	57M12318	1	Elec. Connector Terminal	Starter Relay, XK3_3
8	57M12322	1	Elec. Connector Terminal	Ground, XGND1
9	57M12322	1	Elec. Connector Terminal	Ground, XGND2
10	L78202	1	Elec. Connector Housing	Key Switch, XS1_1
11	57M10073	1	Elec. Connector Terminal	Cavity A
11	57M7170	1	Elec. Connector Housing	Key Switch, XS1_2
12	57M9956	1	Elec. Connector Housing	Exhaust Filter Cleaning Switch, XS40
12	57M7678	1	Elec. Connector Terminal	-
12	57M8164	6	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6
13	57M7170	1	Elec. Connector Housing	Horn Switch, XS16_1
13	57M10073	1	Elec. Connector Terminal	Cavity A
14	57M7170	1	Elec. Connector Housing	Horn Switch, XS16_2
14	57M10073	1	Elec. Connector Terminal	Cavity A
15	57M10283	1	Elec. Connector Accessory	-

Console Wiring Harness, SyncShuttle™ (2/3)

Нет текстового описания
