Большое обновление пильных узлов

Смотреть

Открытый узел

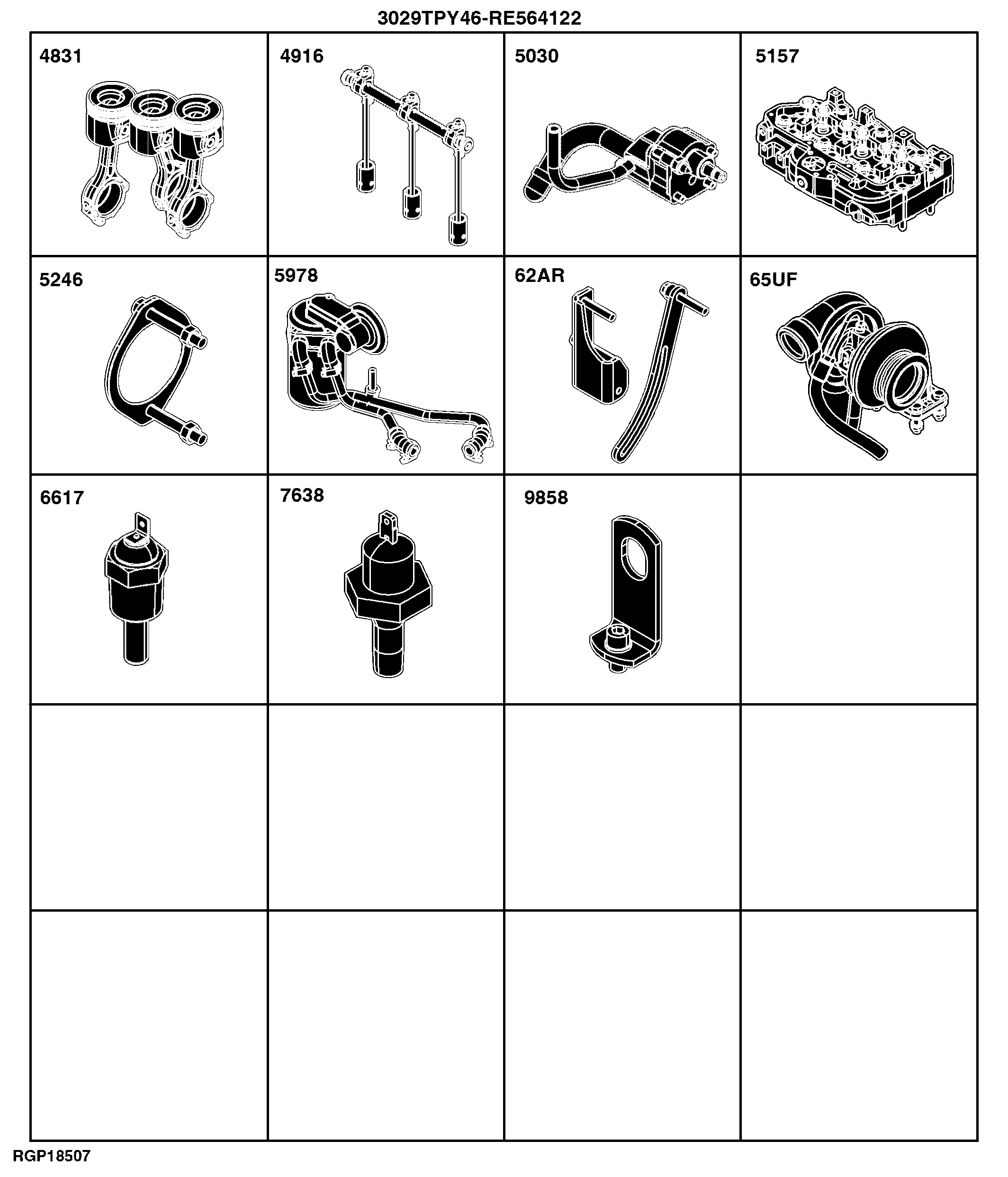

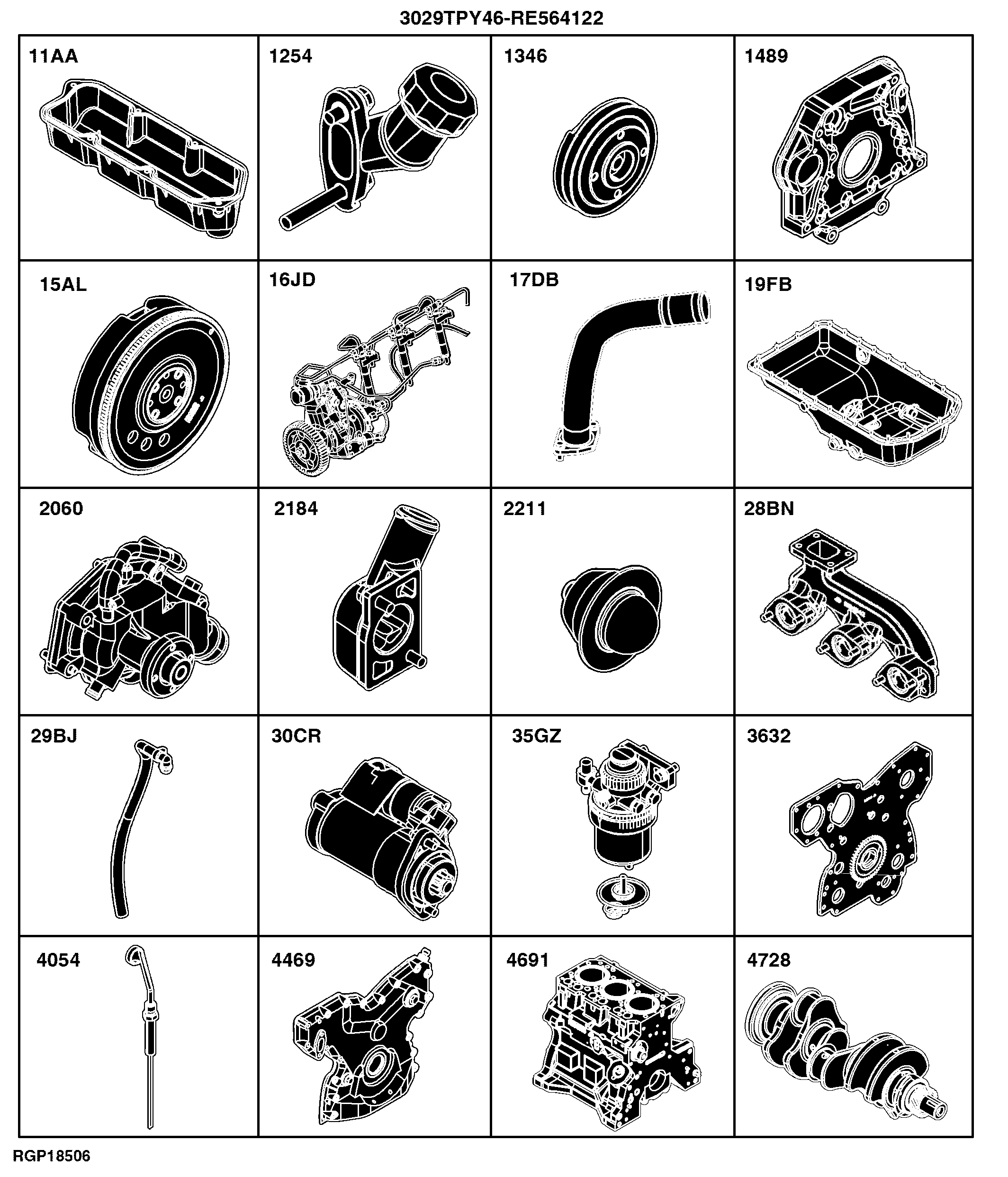

22 Engine 3029TPY46-RE564122-PY11186-PY11297

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	9901 Cylinder Head Bolt Kit	-
-	-	1	5157 Cylinder Head with Valves	-
-	-	1	5246 Gear Driven Auxiliary Drive	-
-	-	1	5964 Engine Oil Cooler and Oil Filter ( - XXXXXX)	-
-	-	1	5964 Engine Oil Cooler and Oil Filter (XXXXXX - )	-
-	-	1	5978 Engine Oil Filter (XXXXXX - XXXXXX)	-
-	-	1	62AR Alternator Mounting	-
-	-	1	65UF Turbocharger	-
-	-	1	6617 Temperature Switch ( - XXXXXX)	-
-	-	1	6627 Temperature Switch (XXXXXX - )	-
-	-	1	7638 Oil Pressure Switch	-
-	-	1	9858 Lift Straps	-
-	-	1	9901 Bearing Kit	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	9901 Crankshaft Bearing Kit	-
-	-	1	5030 Engine Oil Pump	-
-	-	1	9901 Engine Gasket Kit	-
-	-	1	9901 Engine Gasket Kit (1/2)	-
-	-	1	9901 Engine Gasket Kit (2/2)	-
-	-	1	9901 Engine Overhaul Kit 1/2	-
-	-	1	9901 O Ring Kit, Cylinder Liner	-
-	-	1	9901 Piston Liner Kit	-
-	-	1	9901 Piston Ring Kit	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Seat Kit	-
-	-	1	9901 Short Block Assembly	-
-	-	1	9901 Starter Motor Kit	-
-	-	1	9901 Starter Motor Kit	-
-	-	1	9901 Thrust Washer	-
-	-	1	9901 Water Pump Repair Kit	-
-	-	1	2211 Thermostat	-
-	-	1	1254 Oil Filler Neck	-
-	-	1	1346 Crankshaft Pulley and Damper ( - XXXXXX)	-
-	-	1	1350 Crankshaft Pulley and Damper (XXXXXX - XXXXXX)	-
-	-	1	1354 Crankshaft Pulley (XXXXXX - )	-
-	-	1	14BC Flywheel Housing	-
-	-	1	15AP Flywheel	-
-	-	1	16HB Fuel Injection Pump	-
-	-	1	17DB Air Intake	-
-	-	1	19CV Oil Pan ( - XXXXXX)	-
-	-	1	19FB Oil Pan (XXXXXX - )	-
-	-	1	2057 Water Pump (XXXXXX - XXXXXX)	-
-	-	1	2060 Water Pump ( - XXXXXX)	-
-	-	1	2060 Water Pump (XXXXXX - )	-
-	-	1	2184 Thermostat Cover	-
-	-	1	11AA Valve Cover	-
-	-	1	28BN Exhaust Manifold	-
-	-	1	29BJ Vent System	-
-	-	1	30CR Starter Motor	-
-	-	1	35GZ Fuel Filter	-
-	-	1	3632 Front Plate	-
-	-	1	4054 Engine Oil Dipstick (XXXXXX - )	-
-	-	1	4069 Engine Oil Dipstick ( - XXXXXX)	-
-	-	1	4469 Timing Gear Cover	-
-	-	1	4691 Cylinder Block	-
-	-	1	4728 Crankshaft and Bearings	-
-	-	1	4831 Connecting Rods and Pistons	-
-	-	1	4916 Valve Actuating Mechanism (XXXXXX - )	-
-	-	1	4924 Valve Actuating Mechanism ( - XXXXXX)	-

22 Engine 3029TPY46-RE564122-PY11186-PY11297

Нет текстового описания
