Открытый узел

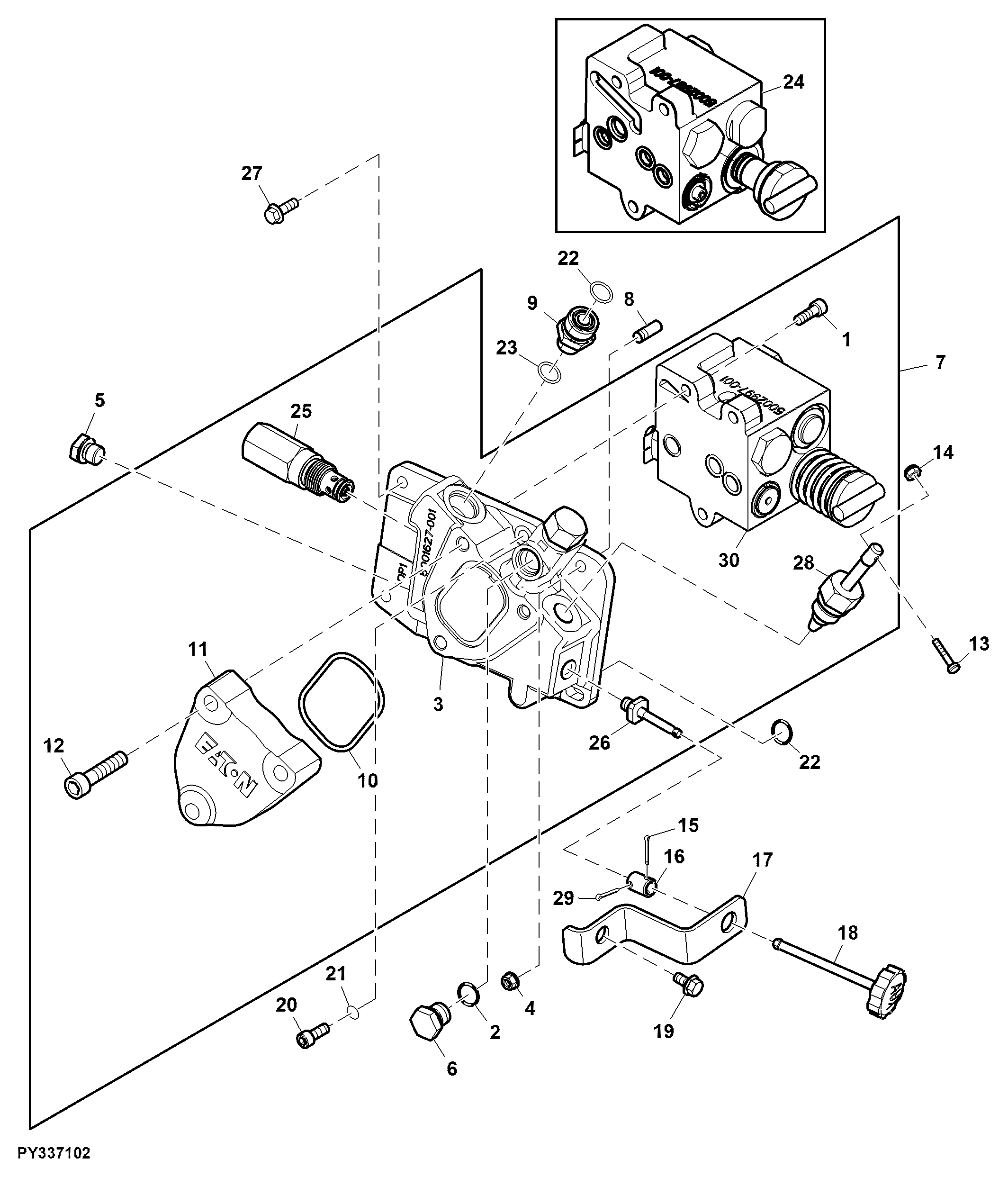

Rockshaft Control Valve, Manual Steering

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M8736	3	Screw	(John Deere) M6 X 20
2	51M7043	1	O-Ring	(John Deere) 15.300 X 2.200 mm
3	SJ34966	1	Control Valve	(John Deere) SUB FOR SJ12640
4	14M7298	1	Flange Nut	(John Deere) M8
5	RE46716	1	Fitting	(John Deere)
6	R238981	1	Fitting Plug	(John Deere)
7	SJ34844	1	Control Valve	(John Deere) INCLUDES SJ32221 AND SJ32096; SUB FOR SJ13788
7	SJ32221	1	Seal Kit	(John Deere)
7	SJ32096	1	Check Valve	(John Deere)
8	R138278	1	Stud	(John Deere)
9	38H5121	1	Adapter Fitting	(John Deere)
9	38H5066	1	Elbow Fitting	(John Deere)
10	R264306	1	Seal	(John Deere)
11	R243180	1	End Plate	(John Deere)
12	SU54209	3	Screw	(John Deere)
13	R224174	1	Knob	(John Deere)
14	N207951	1	Lock Nut	(John Deere)
15	11M7059	1	Cotter Pin	(John Deere) 3.200 X 20 mm
16	R224176	1	Sleeve	(John Deere)
17	SU20097	1	Bracket	(John Deere)
18	RE241205	1	Knob	(John Deere)
19	19M7865	1	Screw	(John Deere) M8 X 16
20	19M7657	5	Screw	(John Deere) M8 X 25
21	12M7065	5	Lock Washer	(John Deere) 8 mm
22	T77857	1	O-Ring	(John Deere)
23	51M7045	1	O-Ring	(John Deere) 19.300 X 2.200 mm
24	SJ23642	1	Control Valve	(John Deere) ORDER SJ31688; SUB FOR SJ19723 OR SJ13791
25	-	1	Part 28	(John Deere) ORDER SJ34844
26	RE264726	1	Valve	(John Deere)
27	19M7867	1	Screw	(John Deere) M8 X 25
28	T77858	1	O-Ring	(John Deere)
29	11M7023	1	Cotter Pin	(John Deere) 4 X 32 mm
30	SJ31688	1	Control Valve	(John Deere)

Rockshaft Control Valve, Manual Steering
