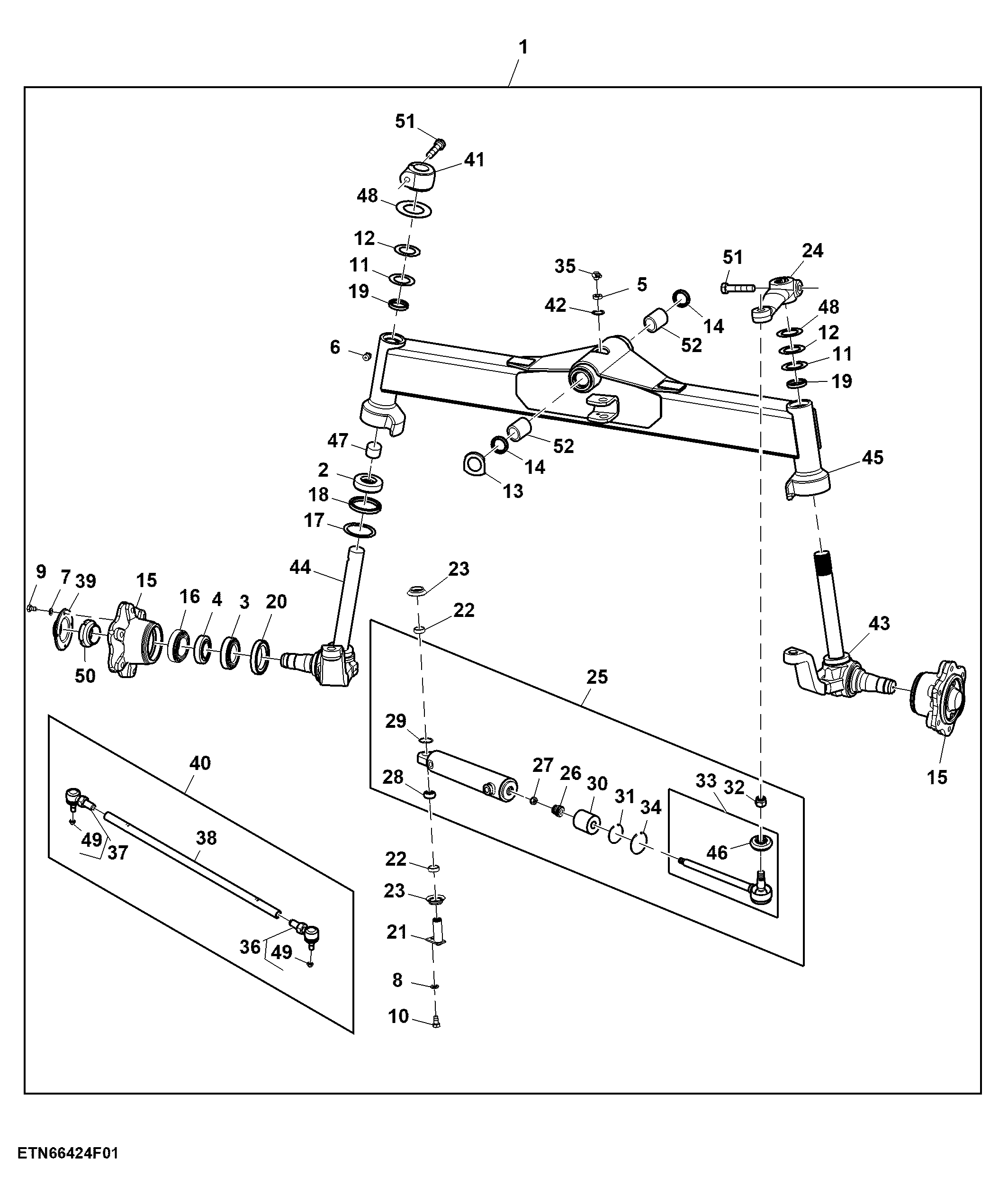

Front Axle, Power Steering, 2WD, Non Adjustable

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ40341	1	Front Axle	SUB FOR SJ14697
2	R234114	2	Thrust Bearing	-
3	RE73676	2	Cylindrical Roller Bearing	Inner
3	SJ11010	2	Cylindrical Roller Bearing	ORDER RE73676
4	SJ11011	1	Tapered Roller Bearing	ORDER RE73678
4	RE73678	2	Cylindrical Roller Bearing	Outer
5	R246399	1	Nut	-
6	RE178282	3	Lubrication Fitting	-
7	SU297647	8	Spring Washer	-
8	12M7008	1	LOCK WASHER	8 mm
9	SU297648	8	Bolt	-
10	R208639	1	Screw	-
11	R246350	2	Shim	TK = 0.5 mm
12	R246349	2	Shim	TK = 0.3 mm
13	R221408	1	Washer	-
14	R234110	2	Seal	-
15	SU297642	2	Hub	-
16	R141213	2	Bearing Cap	-
17	R246347	2	Spacer	-
18	RE246340	2	Seal	-
19	RE246341	2	Seal	-
20	RE73675	2	Seal	USE WITH SJ14697
20	SU41869	2	Seal	USE WITH SJ40341
21	SU302733	1	Pin	-
22	R180595	2	Bushing	-
23	R180596	2	Gasket	-
24	SU302730	1	Steering Arm	-
25	SU51513	1	Boot	-
25	SJ18862	1	Seal Kit	-
25	SJ28927	1	Cylinder	INCLUDES SJ18862 AND SU51513
26	RE182070	1	Piston	-
27	RE182071	1	Lock Nut	-
28	RE182073	1	Ball Joint Socket	-
29	R182072	1	Snap Ring	-
30	SU34080	1	Cylinder Head	-
31	SU34238	1	Ring	-
32	SU34079	1	Lock Nut	-
33	SJ19073	1	Rod	-
34	SU34237	1	Ring	-
35	RE180594	1	Lubrication Fitting	-
36	RE190506	1	Tie Rod End	RH
37	RE190481	1	Tie Rod End	LH
38	R190671	1	Tube	Center link
39	SU26988	2	Hub	-
40	RE192255	1	Tie Rod Assembly	SUB FOR RE234118
41	SU26987	1	Cap	-
42	SU20907	1	Snap Ring	-
43	SJ14704	1	Knuckle	RH
44	SJ14706	1	Knuckle	LH
45	SJ10612	1	Housing	-
46	R180606	1	Boot	-
47	R141206	4	Bushing	-
48	R246348	2	Shim	TK = 1.00 mm
49	R190792	2	Nut	-
50	R141214	1	Nut	-
51	R190676	2	Bolt	-
52	R141207	2	Bushing	-

Front Axle, Power Steering, 2WD, Non Adjustable
