22 Engine 3029DPY54-RE570119-PY11407

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

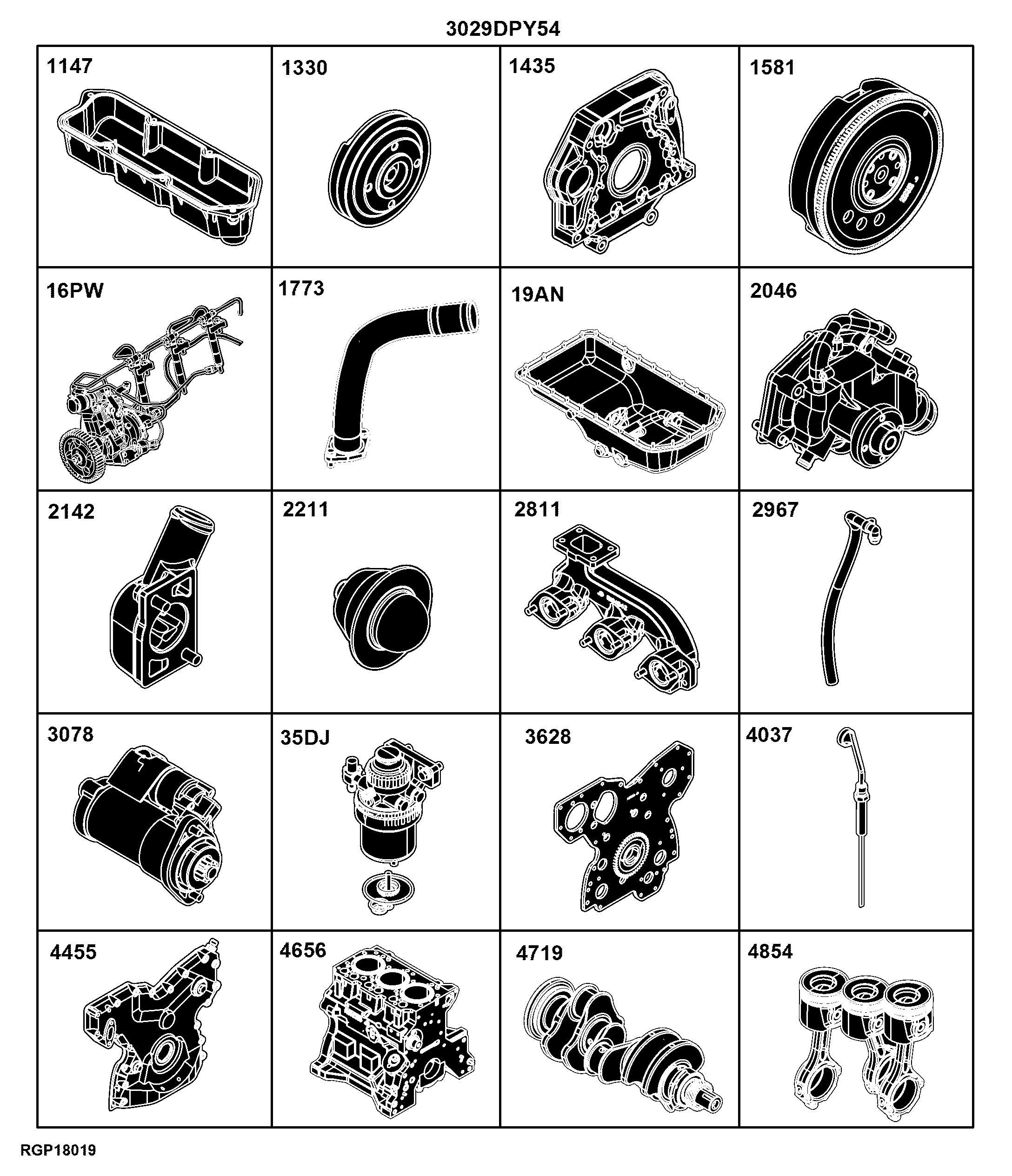

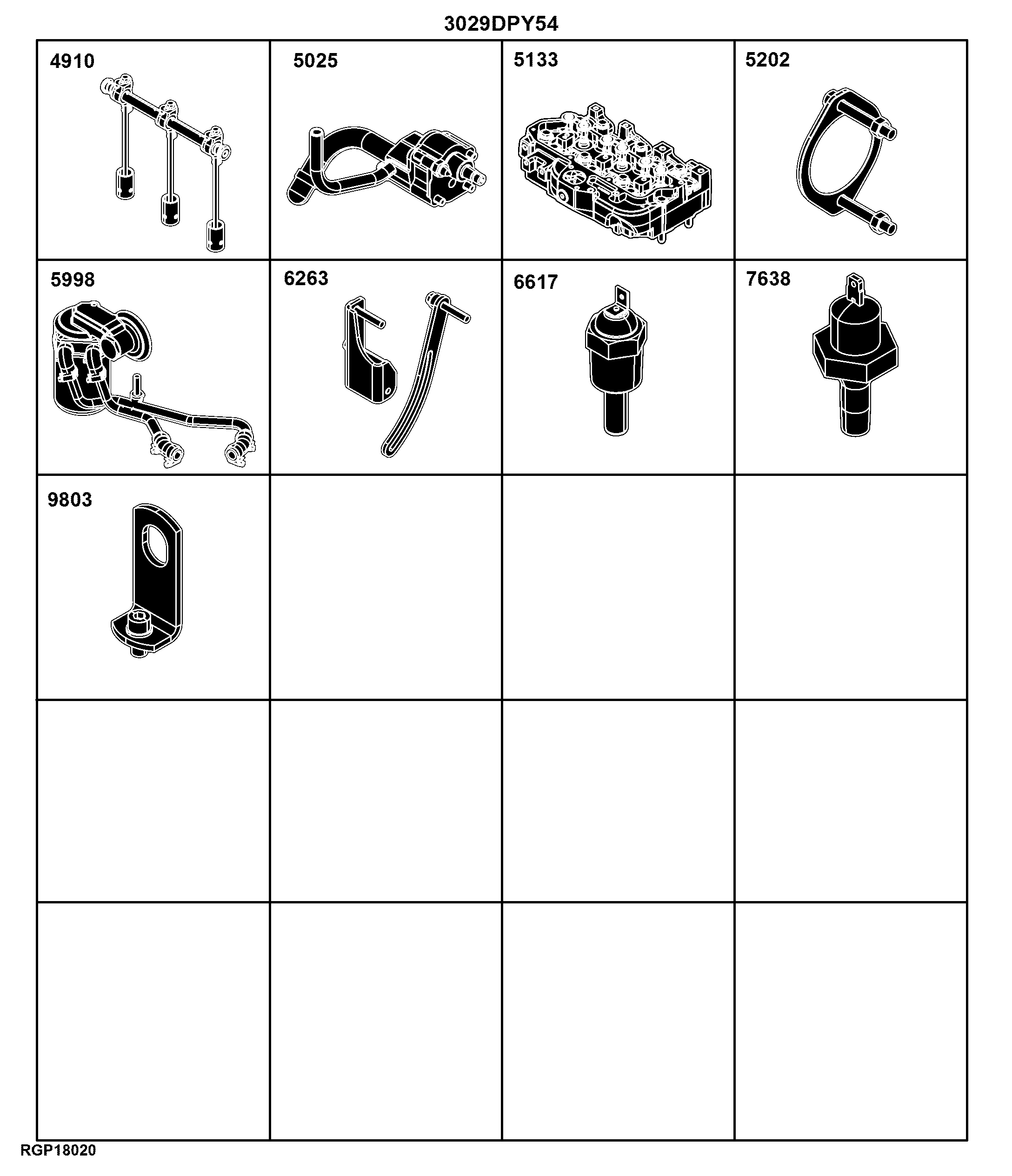

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	9901 Crankshaft Kit	-
-	-	1	4910 Valve Actuating Mechanism	-
-	-	1	5025 Engine Oil Pump	-
-	-	1	5133 Cylinder Head with Valves	-
-	-	1	5202 Auxiliary Drive Cover ( - XXXXXX)	-
-	-	1	5246 Gear Driven Auxiliary Drive (XXXXXX - )	-
-	-	1	5998 Oil Filter	-
-	-	1	6263 Alternator Mounting	-
-	-	1	6617 Temperature Switch (XXXXXX - )	-
-	-	1	6627 Temperature Switch ( - XXXXXX)	-
-	-	1	7638 Oil Pressure Switch	-
-	-	1	9803 Engine Lift Strap	-
-	-	1	4854 Connecting Rods and Pistons	-
-	-	1	9901 Engine Overhaul Kit	-
-	-	1	9901 Gasket Kit	-
-	-	1	9901 O Ring Kit, Cylinder Liner	-
-	-	1	9901 Pin Kit	-
-	-	1	9901 Piston Liner Kit	-
-	-	1	9901 Piston Ring Kit	-
-	-	1	9901 Pump Kit	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Short Block Assembly	-
-	-	1	9901 Starter Motor Kit	-
-	-	1	2811 Exhaust Manifold	-
-	-	1	1330 Crankshaft Pulley	-
-	-	1	1435 Flywheel Housing	-
-	-	1	1581 Flywheel	-
-	-	1	16PW Fuel Injection Pump	-
-	-	1	1773 Air Intake	-
-	-	1	19AN Oil Pan ( - XXXXXX)	-
-	-	1	19BS Oil Pan (XXXXXX - )	-
-	-	1	2046 Water Pump	-
-	-	1	2142 Thermostat Cover	-
-	-	1	2211 Thermostat	-
-	-	1	1147 Valve Cover	-
-	-	1	2967 Ventilating System	-
-	-	1	3078 Starter Motor	-
-	-	1	35DJ Fuel Filter	-
-	-	1	3628 Front Plate	-
-	-	1	3799 Fuel Transfer Pump Cover	-
-	-	1	4037 Engine Oil Dipstick ( - XXXXXX)	-
-	-	1	4069 Engine Oil Dipstick (XXXXXX - )	-
-	-	1	4455 Timing Gear Cover	-
-	-	1	4656 Cylinder Block	-
-	-	1	4719 Crankshaft And Bearings	-

22 Engine 3029DPY54-RE570119-PY11407
