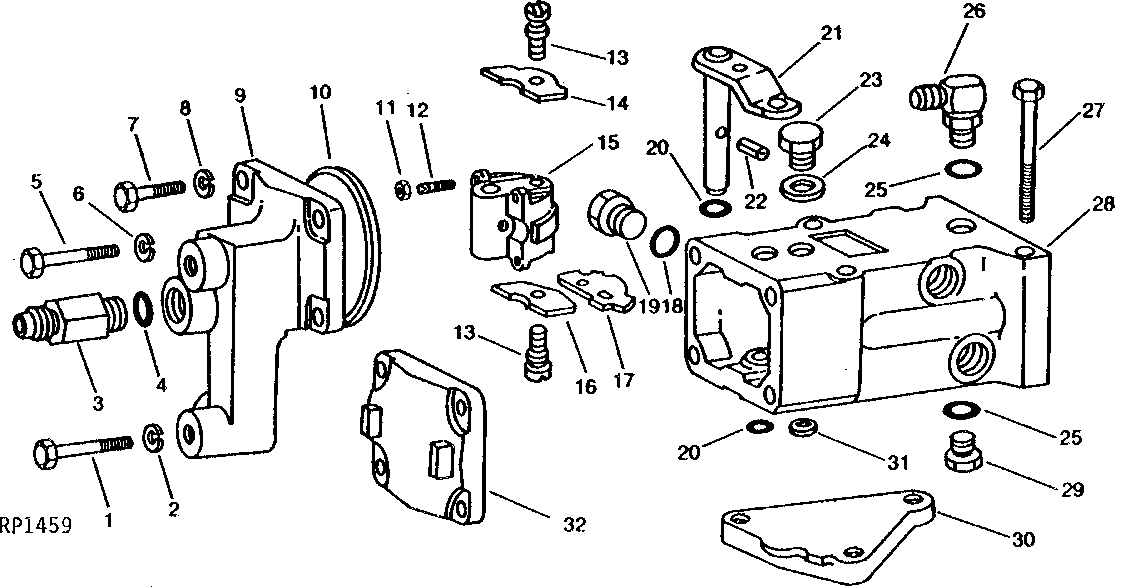

SELECTIVE CONTROL VALVE HOUSING [02H01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1765	1	Cap Screw	3/8" X 1-3/4"
2	12H304	1	Lock Washer	3/8"
3	R28717	1	FITTING	-
4	R26375	1	O-Ring	-
5	19H1726	1	Cap Screw	3/8" X 2-1/4"
6	12H304	1	Lock Washer	3/8"
7	19H1731	1	Cap Screw	3/8" X 1", (4 USED, A) (8 USED, B)
8	12H304	4	Lock Washer	3/8"
9	R49188	1	BRACKET	(ALSO ORDER R49187) (SUB FOR R27595)
10	R26544	1	SEAL	(1 USED, A) (2 USED, B) (USE WITH R27595 OR R27593)
10	R49187	1	WASHER	(1 USED, A) (2 USED, B) (USE WITH R49188 OR R49186)
11	14H850	4	NUT	1/4", (SUB 22H1025 AND R49221)
11	R49221	2	RETAINER	-
12	22H1012	4	SET SCREW	1/4" X 3/4", (SUB 22H1025 AND R49221)
12	22H1025	4	Set Screw	1/4" X 7/8"
13	R27233	2	SCREW	-
14	R51414	1	CAM	(SUB FOR R41931) (SUB AR253731)
15	R51412	1	ROCKER	(ALSO ORDER R28744, R51413, R51414 AND R51415) (SUB FOR R40898)
16	R51415	1	CAM	(SUB FOR R41932) (SUB AR253733)
17	R51413	1	CAM	(USE WITH R51412) (SUB AR253730)
18	R26375	2	O-Ring	-
19	R39112	2	Fitting	-
20	R394R	2	O-Ring	(SUB R65287, THIS APPLICATION)
21	AR26657	1	ARM	-
22	34H297	1	Spring Pin	7/32" X 1"
23	R41155	1	Fitting Plug	-
24	AR26697	2	Sealing Washer	-
25	R26448	2	O-Ring	-
26	AT35120	1	Elbow Fitting	(SUB FOR AR37017 AND AT32337)
27	19H1912	3	Cap Screw	(A) 3/8" X 3-1/2"
27	19H3328	3	Cap Screw	(B) 3/8" X 6-1/2"
28	AR40828	1	HOUSING	(MARKED R40599) (SUB AR83549, R27166, R41057, R59629, (2) R65501, (2) R65502, R66916, R74695 AND R65289)
28	AR83549	1	HOUSING	(MARKED R65504)
29	R27218	1	Fitting Plug	-
30	R37479	1	Cover	-
31	R26149	1	PACKING	(1 USED, A) (2 USED, B)
32	R49186	1	COVER	(B) (ALSO ORDER R49187) (SUB FOR R27593)
..	AR47473	1	VALVE	(A) (ROCKSHAFT) (NO LONGER AVAILABLE)

SELECTIVE CONTROL VALVE HOUSING [02H01]

Нет текстового описания
