PLATFORM, TOOL BOX AND OPERATOR SHIELDS (STANDARD) [03E17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

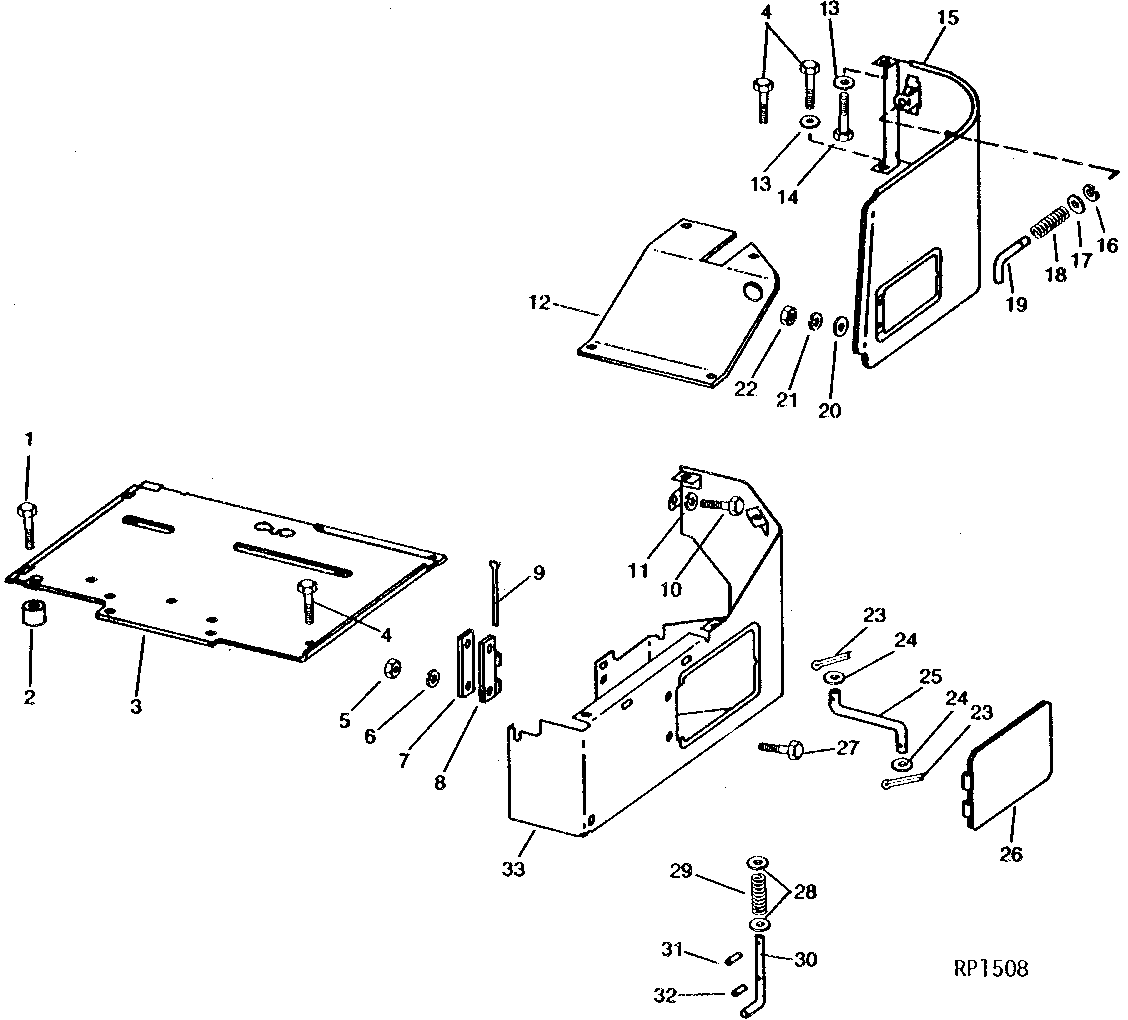

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1726	3	Cap Screw	3/8" X 2-1/4"
2	28H1526	2	BUSHING	3/8" X 1-5/16"
2	28H1496	2	Spacer	3/8" X 1-1/8"
3	AR35206	1	PLATFORM	(NO LONGER AVAILABLE)
3	R45159	1	MAT	(BLACK RUBBER)
4	19H2284	6	Cap Screw	3/8" X 7/8"
5	14H786	2	Nut	1/4"
6	12H302	2	Lock Washer	1/4"
7	R35214	1	RETAINER	(NLA)
8	R35213	1	PLATE	-
9	R20538	1	PIN	-
10	19H1936	1	Cap Screw	3/8" X 3/4"
11	12H304	1	Lock Washer	3/8"
12	R35626	1	EXTENSION	R.H.
13	24M7096	4	Washer	10.500 X 18 X 1.600 MM
14	19H1732	2	Cap Screw	3/8" X 1-1/4"
15	AR36772	1	SHIELD	R.H.
15	AR36773	1	SHIELD	L.H.
16	R72654	2	Snap Ring	(SUB FOR R27507)
17	24H1286	2	Washer	9/32" X 1/2" X 1/16"
18	R28783	2	Compression Spring	-
19	R27506	2	PIN	-
20	24M7096	4	Washer	10.500 X 18 X 1.600 MM
21	12H304	6	Lock Washer	3/8"
22	14H1076	6	Nut	3/8"
23	11M7079	2	Cotter Pin	0.098" X 0.472"
24	24H1286	2	Washer	9/32" X 1/2" X 1/16"
25	R40419	1	PIN FASTENER	(NLA)
26	AR36778	1	DOOR	-
27	19H1948	2	Cap Screw	1/4" X 3/4"
28	24M7096	2	Washer	10.500 X 18 X 1.600 MM
29	R1826R	1	Spring	-
30	R35210	1	PIN FASTENER	(NLA)
31	34H282	1	Spring Pin	3/16" X 1"
32	34H247	1	Spring Pin	1/8" X 3/4"
33	AR67385	1	TOOLBOX	(SUB FOR AR47187)
33	R32239	1	Plug	-
..	R53745	1	Tape	55 M (180 FT.) (SUB FOR R46662)
..	R46663	1	Sealing Trim	18 M (60 FT.)
