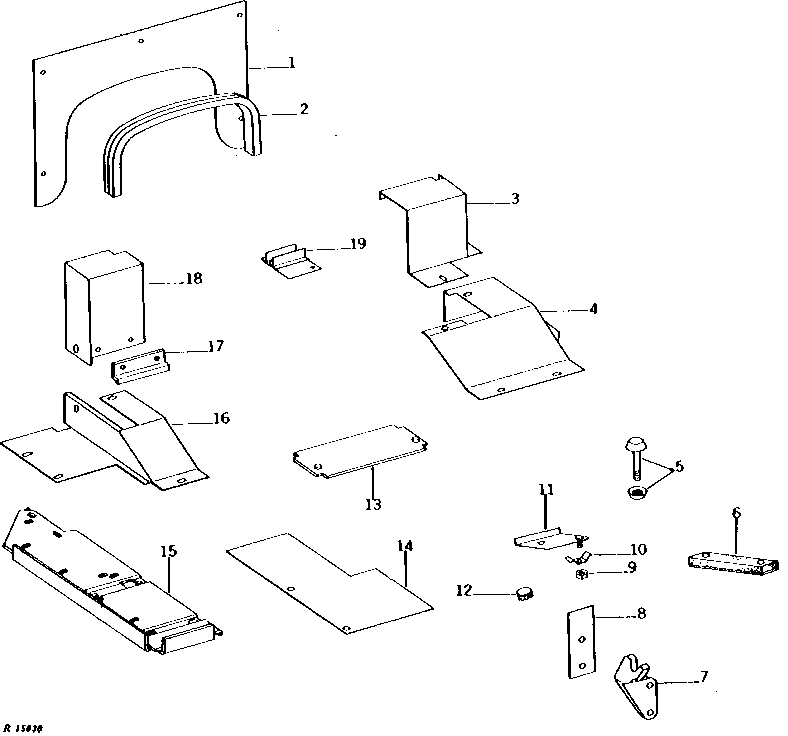

INTERIOR PANELS AND GASKETS (CRENLO) [03D09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR44695	1	PANEL	HOOD ENCLOSURE
2	R41800	1	GASKET	-
3	AR44691	1	PANEL	HEAT SHIELD (NO LONGER AVAILABLE)
3	R41800	1	GASKET	-
3	R41815	1	ISOLATOR	-
4	AR44693	1	PANEL	BRAKE (NO LONGER AVAILABLE)
4	R41800	1	GASKET	-
5	AR42274	1	PLUNGER	DIFFERENTIAL LOCK PEDAL (NO LONGER AVAILABLE)
6	R42180	1	COVER	LOAD AND DEPTH CONTROL LEVER SLOT (NO LONGER AVAILABLE)
7	R32118	1	ARM	REMOTE CYLINDER TRANSPORT, L.H.
7	R32117	1	ARM	REMOTE CYLINDER TRANSPORT, R.H.
8	R41959	2	PLATE	(NO LONGER AVAILABLE)
8	R28473	4	Plug	(LESS REMOTE CYLINDER)
9	H24659	1	NUT	-
10	R44223	1	SPRING	(NO LONGER AVAILABLE)
11	AR45474	1	COVER	TRANSMISSION ACCESS (NO LONGER AVAILABLE)
12	R42566	1	PLUG	(NO LONGER AVAILABLE)
13	AR44683	1	PANEL	PLATFORM (NO LONGER AVAILABLE)
14	AR48136	1	COVER	BATTERY (NO LONGER AVAILABLE)
15	AR47814	1	BOX	BATTERY (NO LONGER AVAILABLE)
16	AR44694	1	PANEL	CLUTCH (NO LONGER AVAILABLE)
16	R41800	1	GASKET	-
17	R42570	1	ANGLE	(NO LONGER AVAILABLE)
17	R42575	1	ANGLE	(NO LONGER AVAILABLE)
18	AR44692	1	PANEL	HEAT SHIELD (NO LONGER AVAILABLE)
18	R41800	1	GASKET	-
18	R41815	1	ISOLATOR	-
19	AR44696	1	PLATE	PTO DISENGAGE (NO LONGER AVAILABLE)

INTERIOR PANELS AND GASKETS (CRENLO) [03D09]
