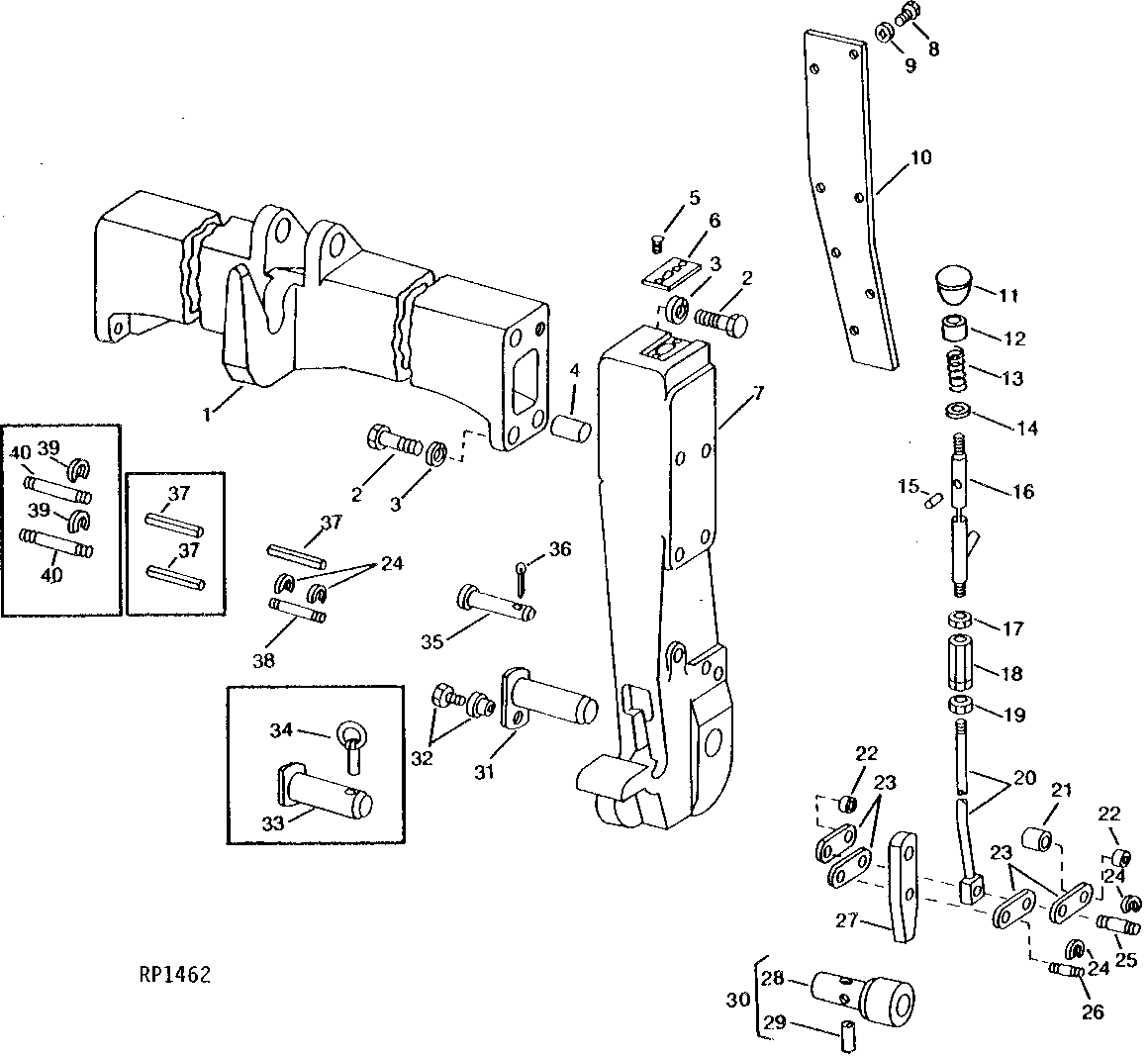

IMPLEMENT QUICK COUPLER (TRACTOR SERIAL NO. -030000) [02G05]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR84904	1	QUICK COUPLER	(MARKED R36448, R65203 OR R65817) (SUB FOR AR35851 OR AR82263)
2	19H1356	4	CAP SCREW	5/8" X 1-3/4"
3	12H294	4	Lock Washer	5/8"
4	A776R	4	Pin	-
5	37H71	4	SCREW	NO. 12 X 5/8", (USE WITH R65088 OR R65087)
5	19H2284	2	Cap Screw	3/8" X 7/8", (USE WITH AR87024 OR AR87023)
5	12H304	2	Lock Washer	3/8", (USE WITH AR87024 OR AR87023)
6	R36443	2	BRACKET	(USE WITH R65088 OR R65087)
6	AR50374	1	Bracket	(USE WITH AR87024 OR AR87023)
7	R36449	1	QUICK COUPLER	R.H. (SUB AR87023, AR48112, AR74673, AR78289, AR89303, (2) F2208R AND R65082)
7	R46001	1	QUICK COUPLER	R.H. (SUB AR87023, AR78289, AR89303, (2) F2208R AND R65082)
7	R65087	1	QUICK COUPLER	R.H. (SUB FOR R47050) (SUB AR87023)
7	AR87024	1	QUICK COUPLER	L.H. (ALSO ORDER AR48112 AND AR74673) (SUB FOR R36450) (SUB FOR R46002, R47051 OR R65088)
8	19H1919	14	Cap Screw	1/4" X 5/8"
9	12H297	14	Lock Washer	1/4"
10	R58617	2	Shield	(SUB FOR R36444)
11	F2861R	2	KNOB	(SUB R60458)
12	R30778	2	BUSHING	-
13	R1826R	2	Spring	-
14	24H1227	2	Washer	17/32" X 13/16" X 0.060"
15	34H277	2	SPRING PIN	3/16" X 5/8"
16	AR41266	2	ROD	-
17	14H939	2	Nut	1/2"
18	R33961	2	COUPLING	-
19	14H939	2	Nut	1/2"
20	AR41267	2	ROD	(NLA)
21	28H1919	2	Bushing	1/2" X 59/64"
22	F2206R	4	Washer	-
23	R65242	8	Strap	(SUB FOR R47590 OR R36439)
24	F2208R	12	SNAP RING	-
25	R119275	2	Pin Fastener	(SUB FOR R36613 OR R47679)
26	R119276	2	Pin Fastener	(SUB FOR R36440 OR R47678)
27	R36441	2	Latch	-
28	R27998	2	Half Sleeve	-
29	R27999	2	Spring Pin	-
30	AR27093	2	ADAPTER KIT	-
31	AR48112	2	PIN	-
31	AR89303	1	Pin	(USE WITH R65087) (SUB FOR AR76161)
32	AR74673	2	CAP SCREW	(SUB FOR AR48110) (SUB R45997 AND 19H2898)
32	AR78289	1	Cap Screw	(USE WITH R65087)
33	AR35762	2	PIN	-
34	AR83396	2	Quick Lock Pin	(SUB FOR AR26556 OR AR62152) (SUB R69166 AND 11M7059)
35	R28556	2	Pin Fastener	-
36	11M7087	2	Cotter Pin	0.157" X 1.575"
37	34H375	4	SPRING PIN	1/2" X 3"
38	R65082	1	Pin	(USE WITH R65087)
39	F2208R	8	SNAP RING	-
40	R36442	4	PIN FASTENER	(NLA)

IMPLEMENT QUICK COUPLER (TRACTOR SERIAL NO. -030000) [02G05]
