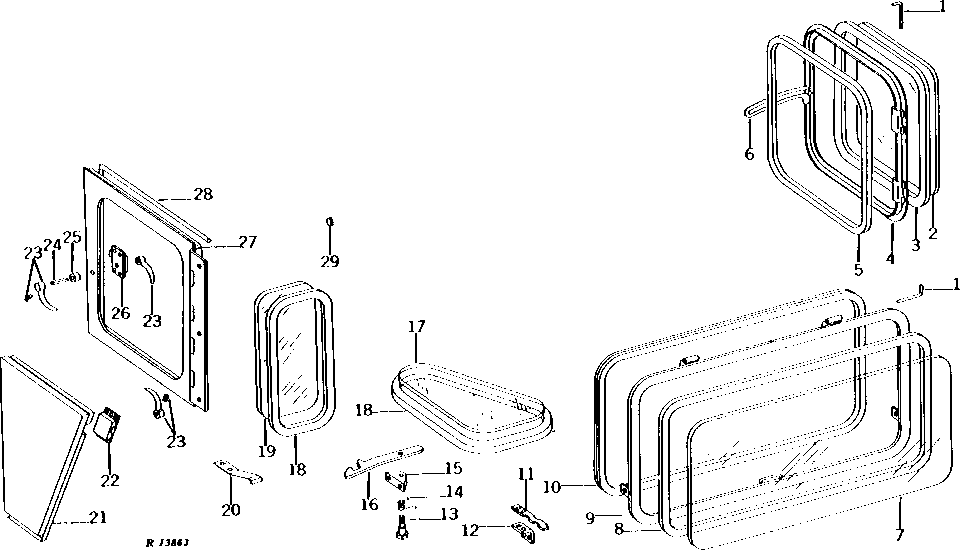

DOORS, WINDOW FRAMES, AND GLASS (CRENLO) [03D11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R42541	4	PIN	-
2	R42553	4	WINDOWPANE	(NO LONGER AVAILABLE)
3	R41807	1	WEATHERSTRIP	FRONT SIDE WINDOW
3	R41795	3	WEATHERSTRIP	SIDE WINDOWS AND DOOR (NO LONGER AVAILABLE)
4	AR44645	1	FRAME	(NO LONGER AVAILABLE)
5	R42542	1	GASKET	-
6	R42543	1	STRAP	(NO LONGER AVAILABLE)
7	R42552	2	WINDOWPANE	-
8	R41807	1	WEATHERSTRIP	REAR WINDOW
8	R41795	2	WEATHERSTRIP	WINDSHIELD (NO LONGER AVAILABLE)
9	AR44644	1	FRAME	(NO LONGER AVAILABLE)
10	R42542	2	GASKET	-
11	R41961	1	BRACKET	(POWER SHIFT) TRANSMISSION DISCONNECT LEVER DETENT (NO LONGER AVAILABLE)
12	R42015	1	SUPPORT	(POWER SHIFT) (NO LONGER AVAILABLE)
13	R42549	1	PIN	-
14	R41805	1	SPRING	(NO LONGER AVAILABLE)
15	R41803	1	BRACKET	(NO LONGER AVAILABLE)
16	R42548	1	STRAP	(NO LONGER AVAILABLE)
17	R44224	1	WINDOWPANE	(INSIDE L.H. REAR) (NO LONGER AVAILABLE)
18	R41795	2	WEATHERSTRIP	(NO LONGER AVAILABLE)
19	R42554	2	WINDOWPANE	(NO LONGER AVAILABLE)
20	R44222	1	STOP	DOOR (NO LONGER AVAILABLE)
21	AR44642	1	DOOR	(NO LONGER AVAILABLE)
22	AR44643	1	LATCH	(NLA)
23	AR44641	3	HANDLE	-
24	R42535	1	SHAFT	-
25	R42536	1	SPACER	-
26	AR44640	1	LATCH	(NLA)
27	AR44639	1	DOOR	(NO LONGER AVAILABLE)
27	R42538	1	GASKET	(NO LONGER AVAILABLE)
28	R42537	8	GASKET	UPPER AND LOWER DOOR (NO LONGER AVAILABLE)
28	R56493	2	PAD	UPPER AND LOWER DOOR, (SUB FOR R42539)
29	R41818	4	PLUG	(NO LONGER AVAILABLE)
..	TY24446	1	Adhesive	.15 L (5 OZ.) (SUB FOR AR31790, AR79739 OR AR85792)

DOORS, WINDOW FRAMES, AND GLASS (CRENLO) [03D11]
