Открытый узел

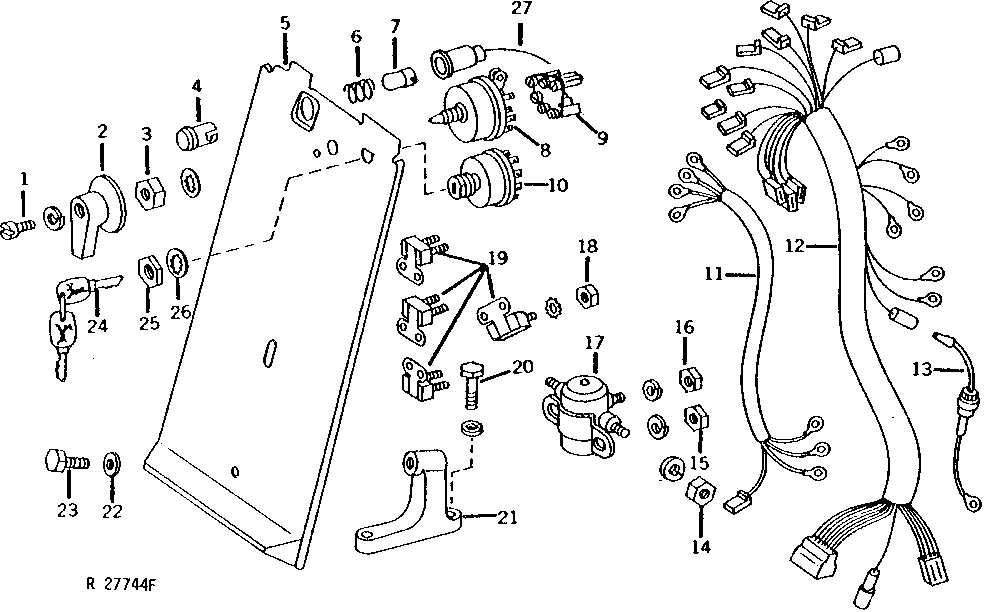

CONTROL SUPPORT COVER WITH SWITCHES, CIRCUIT BREAKERS AND WIRING HARNESSES [01F07]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H315	1	Lock Washer	0.164"
1	21H1299	1	SCREW	0.164" X 3/8"
2	AR54445	1	Knob	LIGHT SWITCH (HINSON CAB) (SUB FOR R46092)
2	R27963	1	KNOB	LIGHT SWITCH, (SUB AT65316)
3	A4655R	1	Nut	-
3	12H292	1	Lock Washer	1/2"
4	AR45439	1	LENS	AIR CLEANER RESTRICTION INDICATOR LAMP
5	AR58593	1	COVER	(SUB FOR AR46243 OR AR50729)
6	R30378	1	Spring	-
7	AR55694	1	BULB	(SUB FOR R30379)
8	AR41288	1	SWITCH	LIGHT
8	AR48724	1	Rotary Switch	LIGHT (HINSON CAB)
9	AR83425	1	Elec. Connector Housing	-
10	AR58126	1	Rotary Switch	(SUB FOR AR47458 OR AR53452)
10	AR58126	1	Rotary Switch	(SUB FOR AR47459)
11	AR47764	1	WIRING HARNESS	CAB ACCESSORY (CRENLO OR STOLPER CAB)
11	AR48961	1	WIRING HARNESS	CAB ACCESSORY (AIR CONDITIONING) (STOLPER CAB)
12	AR47498	1	WIRING HARNESS	CONTROL SUPPORT COVER
13	AR47547	1	WIRING LEAD	FUSE HOLDER WITH FUSE
14	14H650	2	Nut	5/16"
14	12H303	2	Lock Washer	5/16"
15	14H786	6	Nut	1/4"
15	12H302	6	Lock Washer	1/4"
16	14H631	1	Nut	0.190"
16	12M7060	1	Washer	0.209"
17	AR46334	1	RELAY	(SUB FOR AR54484) (WITH CAB) (SUB AR91166, THIS APPLICATION)
18	14H631	12	Nut	0.190", (16 USED, WITH CAB) (24 USED, AIR CONDITIONING)
18	12M7060	12	Washer	0.209", (16 USED, WITH CAB) (24 USED, AIR CONDITIONING)
19	AR28403	3	CIRCUIT BREAKER	(20 AMP) (4 USED, WITH CAB) (5 USED, AIR CONDITIONING) (5 USED, HINSON CAB)
19	AN152652	1	CIRCUIT BREAKER	(30 AMP) (SUB FOR AR49352 OR AR78549) (AIR CONDITIONING)
19	AR55649	1	CIRCUIT BREAKER	(10 AMP) (SUB FOR AR48726) (HINSON CAB)
20	12H304	2	Lock Washer	3/8"
20	19H1139	2	Cap Screw	3/8" X 1-1/8"
21	R49802	1	BRACKET	(SUB FOR R35623)
22	24H1305	1	Washer	13/32" X 13/16" X 0.065"
23	19H1936	1	Cap Screw	3/8" X 3/4"
24	A4827R	2	Washer	-
25	R44342	1	Nut	-
26	AR51481	1	Key	(SUB FOR R45361)
27	AR48033	1	INDICATOR LIGHT	AIR CLEANER RESTRICTION INDICATOR LAMP, (SUB AR45439, AR55694, AT44165 AND R30378)
..	R44302	1	Tie Band	-
..	R48825	1	LABEL	WIRING

CONTROL SUPPORT COVER WITH SWITCHES, CIRCUIT BREAKERS AND WIRING HARNESSES [01F07]

Нет текстового описания
