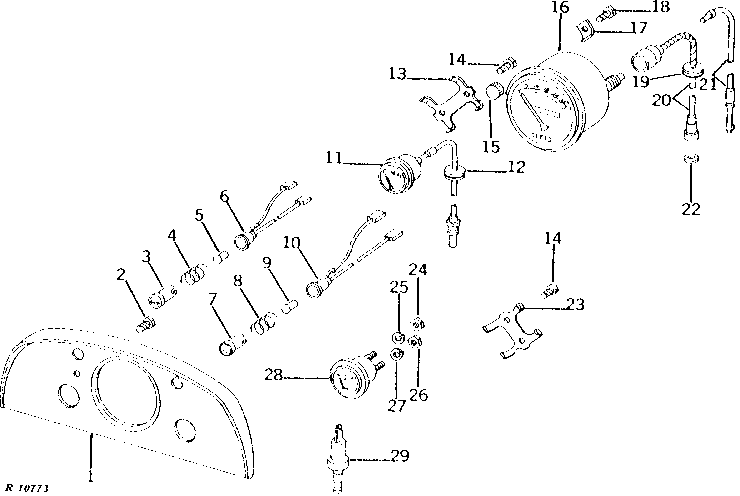

INSTRUMENT PANEL AND INSTRUMENTS [01G03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR51158	1	INSTRUMENT PANEL	(SUB FOR R34205 OR R47630) (SUB AR68198)
2	37H95	4	Screw	NO.10 X 3/8"
3	AT48673	1	LENS	ALTERNATOR INDICATOR, (SUB FOR AR29615 OR AR45438)
4	R30378	1	Spring	-
5	AR55694	1	BULB	2 C.P. (12-16 VOLT) (SUB FOR R30379)
6	AT14699	1	INDICATOR LAMP	ALTERNATOR INDICATOR
7	AT48674	1	LENS	ENGINE OIL PRESSURE, (SUB FOR AR28552)
8	R30378	1	Spring	-
9	AR55694	1	BULB	2 C.P. (12-16 VOLT) (SUB FOR R30379)
10	AR27944	1	LAMP	ENGINE OIL PRESSURE, (SUB AT48674, AR55694, AT44165 AND R30378)
11	AR36383	1	GAUGE	WATER TEMPERATURE
12	R26936	1	Grommet	-
13	R34338	1	CLAMP	-
14	37M7210	4	Screw	NO.10 X 7/8"
15	AR40802	1	KNOB	(SUB FOR AR30282)
16	AR50406	1	TACHOMETER	(SUB FOR AR39906 OR AR50402) (SUB RE206855) (ALSO ORDER RE220088)
17	R34206	4	CLAMP	-
18	37M7245	4	SCREW	NO.10 X 3/8"
19	R36235	1	Grommet	-
20	AT17503	1	Drive Cable	(SUB FOR AT12695)
21	AT17503	1	Drive Cable	(SUB FOR AT15470)
22	B3285R	1	Washer	-
23	R34209	1	CLAMP	-
24	14H631	1	Nut	0.190"
25	12H246	1	LOCK WASHER	0.190"
26	14H605	1	Nut	0.164"
27	12H315	1	Lock Washer	0.164"
28	AR46271	1	GAUGE	FUEL, (SUB FOR R34262 OR AT27153)
29	AT85174	1	Switch	ENGINE OIL PRESSURE, (SUB FOR AR27977)
..	AR45694	1	WIRING LEAD	OIL PRESSURE SWITCH
..	RE220088	1	SPEEDOMETER	-
