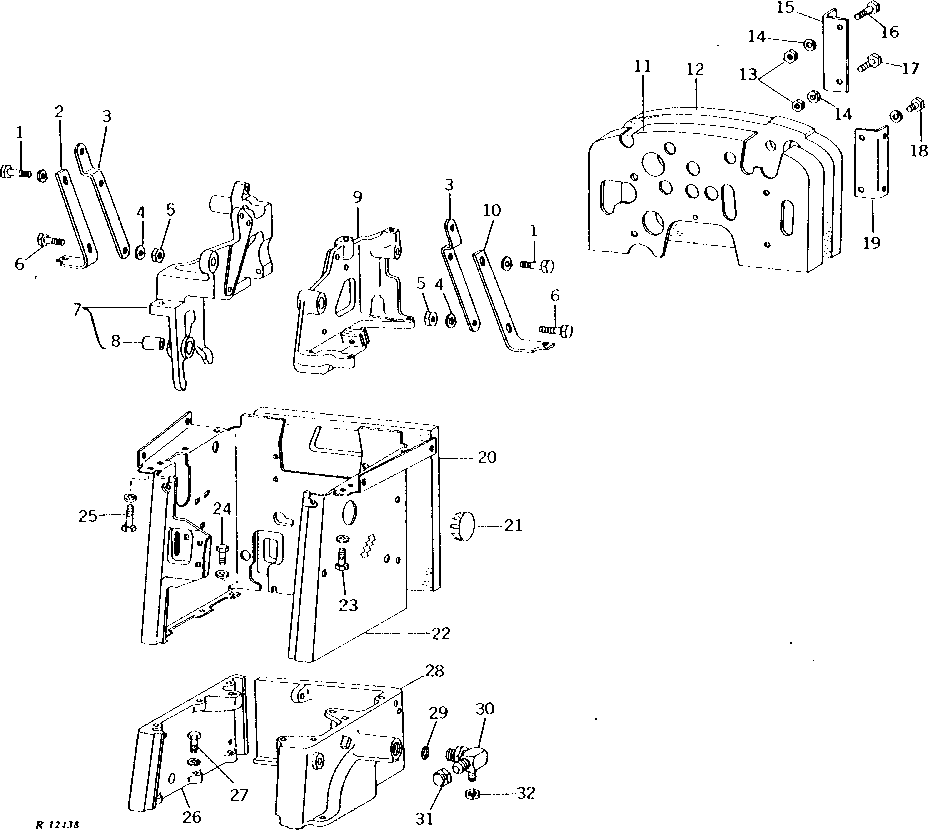

CONTROL, HOOD AND STEERING SUPPORTS [02K09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H310	2	Lock Washer	3/8"
1	19H1139	2	Cap Screw	3/8" X 1-1/8"
2	R31231	1	SUPPORT	L.H.
3	R31229	2	SUPPORT	-
4	12H310	2	Lock Washer	3/8"
5	14H1076	2	Nut	3/8"
6	19H1731	2	Cap Screw	3/8" X 1"
7	AR53470	1	BRACKET	L.H. (MARKED R36083 OR R49637) (ALSO ORDER R49799) (SUB FOR AR35577)
8	R27567	1	BUSHING	-
9	R47079	1	BRACKET	R.H. (SUB FOR R32390)
10	R31230	1	SUPPORT	R.H.
11	AR34927	1	ISOLATOR	(NLA)
12	R56059	1	PAD	-
13	14H1076	2	Nut	3/8", (LESS SELECTIVE CONTROLS)
14	12H304	2	Lock Washer	3/8", (LESS SELECTIVE CONTROLS)
15	R26895	1	ANGLE	(LESS SELECTIVE CONTROLS)
16	19H1726	1	Cap Screw	3/8" X 2-1/4", (LESS SELECTIVE CONTROLS)
17	19H1765	1	Cap Screw	3/8" X 1-3/4", (LESS SELECTIVE CONTROLS)
18	19H2284	2	Cap Screw	3/8" X 7/8"
18	12H304	2	Lock Washer	3/8"
19	R26895	1	ANGLE	-
20	R56059	1	PAD	-
21	R20513	1	PLUG	-
22	AR32818	1	SUPPORT	(NLA)
23	19H2284	3	Cap Screw	3/8" X 7/8"
23	12H304	3	Lock Washer	3/8"
24	19H1936	6	Cap Screw	3/8" X 3/4"
24	12H304	6	Lock Washer	3/8"
25	19H2284	2	Cap Screw	3/8" X 7/8"
25	12H304	2	Lock Washer	3/8"
26	R50964	1	BASE	L.H. (SUB FOR R35551 OR R47916)
27	19H1732	8	Cap Screw	3/8" X 1-1/4"
27	12H304	8	Lock Washer	3/8"
28	R47915	1	BASE	R.H. (SUB FOR R35550)
29	R26906	1	O-Ring	-
30	AR36856	1	TEE FITTING	90°
30	AR36856	1	TEE FITTING	90°, (DIFFERENTIAL LOCK)
30	AR26724	1	Elbow Fitting	90°, (LESS DIFFERENTIAL LOCK)
30	R27474	1	Drain Plug	(LESS DIFFERENTIAL LOCK AND ROCKSHAFT)
31	R36927	1	Fitting	(LESS ROCKSHAFT)
32	R40583	1	FITTING	(LESS DIFFERENTIAL LOCK)
