Открытый узел

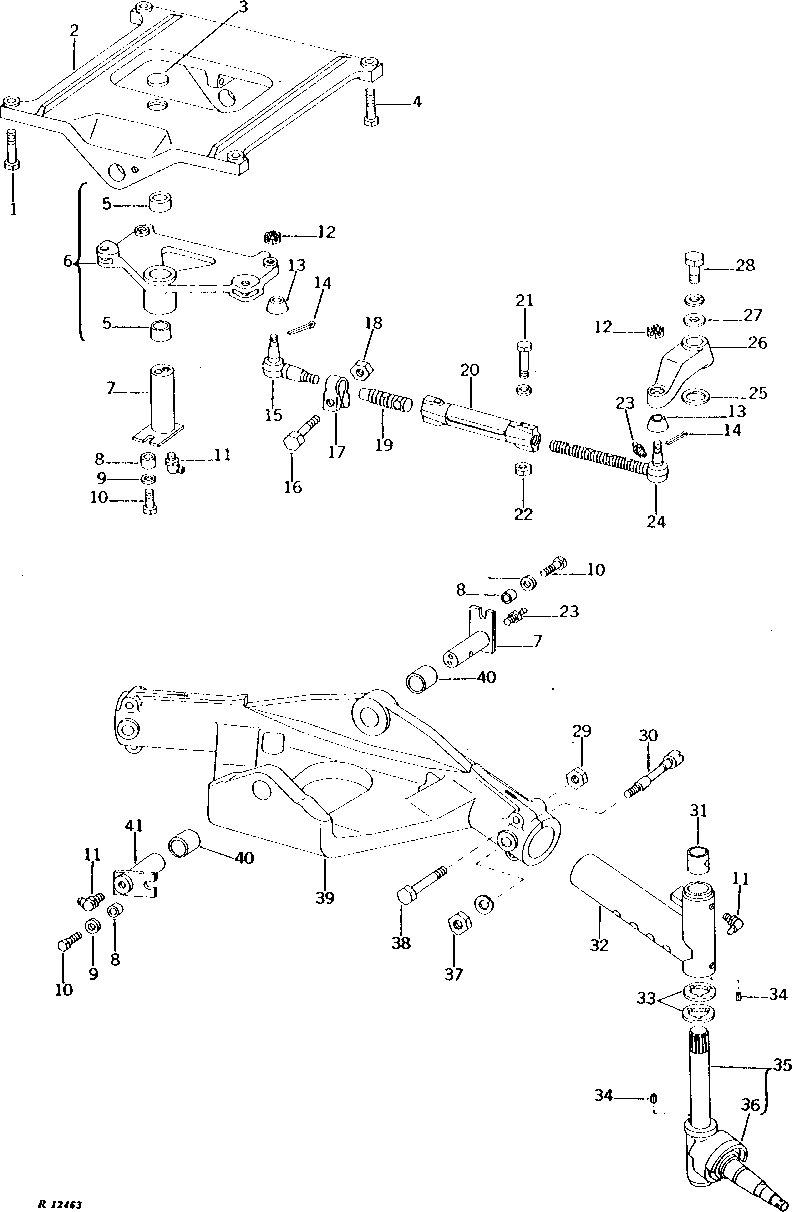

ADJUSTABLE FRONT AXLE (ROW-CROP AND STANDARD) [02G11]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1862	2	Cap Screw	3/4" X 2-1/2"
2	R49410	1	BRACKET	(SUB FOR R36740 OR R46740)
3	30H26	1	Plug	2-1/8"
4	19H1715	2	Cap Screw	3/4" X 3"
5	R28465	2	BUSHING	-
6	AR36897	1	LEVER	(MARKED R35361 OR R40719) (SUB FOR AR35101)
7	AR36078	2	PIN	-
8	R36728	3	BUSHING	-
9	24H1272	3	Washer	9/16" X 1-1/4" X 1/4"
10	19H2511	3	CAP SCREW	1/2" X 1-7/8"
11	JD7781	6	Lubrication Fitting	90°
12	14H918	4	NUT	5/8"
13	R21101	4	Cover	-
14	11M7015	4	Cotter Pin	3.200 X 25 MM
15	AR74131	2	TIE ROD END	(SUB FOR AR20032)
16	19H1990	2	Cap Screw	1/2" X 2-1/4"
17	M2301T	2	Clamp	-
18	14H1040	2	Nut	1/2"
19	R40206	2	STUD	INNER
20	AR36642	2	TUBE	(NLA)
21	19H2128	4	CAP SCREW	3/8" X 3"
21	24M7096	4	Washer	10.500 X 18 X 1.600 MM
22	M63440	1	LOCK NUT	(4 USED) (SUB E50102)
23	JD7759	5	Lubrication Fitting	-
24	AR36643	2	TIE ROD ASSEMBLY	290MM (11-27/64") OUTER
24	AR41230	2	TIE ROD ASSEMBLY	387MM (15-1/2") OUTER
25	R31251	2	Washer	-
26	R52838	1	STEERING ARM	R.H. (SUB FOR R40203)
26	R52839	1	STEERING ARM	L.H. (SUB FOR R40204)
27	R30399	2	Washer	-
28	19H2372	2	CAP SCREW	1" X 1-3/4"
28	12H234	2	LOCK WASHER	1"
29	14H794	2	Nut	3/4"
30	R40198	2	BOLT	-
31	R52188	4	Bushing	(SUB FOR R28471)
32	AR41261	1	AXLE	R.H. (ROW-CROP WITH 2235MM (88") ADJUSTABLE TREAD FRONT AXLE)
32	AR41262	1	AXLE	L.H. (ROW-CROP WITH (2235MM) (88") ADJUSTABLE TREAD FRONT AXLE)
32	AR36704	1	AXLE	L.H. (STANDARD)
32	AR36703	1	AXLE	R.H. (STANDARD)
33	R30398	4	Washer	-
34	34H308	4	Spring Pin	1/4" X 1/2"
35	AR45807	2	KNUCKLE	(ALSO ORDER R26333 AND 19H1863) (SUB FOR AR36636)
36	-	1	Part 43	(SUB AR45807, R26333 AND 19H1863)
37	14H854	2	NUT	1"
37	12H234	2	LOCK WASHER	1"
38	19H2000	2	Cap Screw	3/4" X 5"
39	AR36638	1	HOUSING	(MARKED R40260)
40	R35389	2	BUSHING	-
41	AR36079	1	PIN	-
