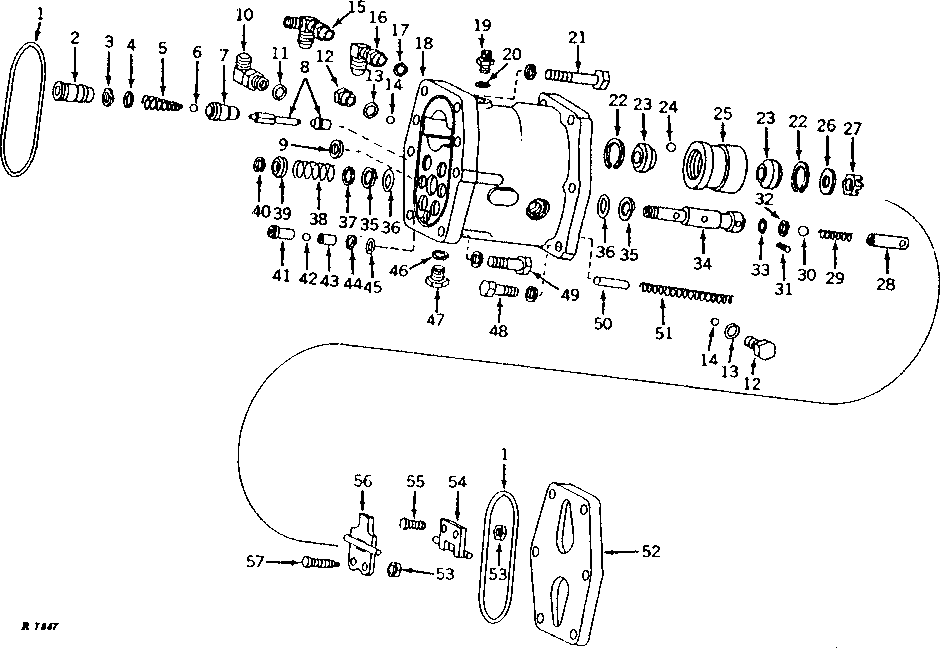

STEERING VALVE ASSEMBLY (TRACTOR SERIAL NO. -004499) [01J04]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R34733	2	WASHER	(SUB FOR R26423)
2	R31448	4	PLUG	-
3	R32588	4	Back-Up Ring	-
4	R459R	4	O-Ring	-
5	R26565	4	COMPRESSION SPRING	-
6	400R	4	Ball	6MM (1/4")
7	R28124	4	VALVE	-
8	AR49535	2	SHAFT	UPPER, (SUB FOR AR30589)
8	AR49536	2	SHAFT	LOWER, (SUB FOR AR30590)
9	R31488	2	WASHER	-
10	AR26725	1	ELBOW FITTING	-
11	R26448	1	O-Ring	-
12	R40338	2	DRAIN PLUG	(ALSO ORDER R27296) (SUB FOR R26429)
13	R26286	5	O-Ring	-
14	R28505	1	SOLID SHIM	0.76MM (.030") STEEL
14	R28786	1	SOLID SHIM	0.25MM (.010") STEEL
14	R32637	1	SOLID SHIM	0.08MM (.003") STEEL
14	R28785	1	SOLID SHIM	0.13MM (.005") STEEL
15	AR26767	1	TEE FITTING	(SELECTIVE CONTROL)
16	AT32334	1	FITTING	(SUB FOR AR26773) (NO SELECTIVE CONTROL)
17	R26286	1	O-Ring	-
18	AR30754	1	HOUSING	(MARKED R31623) (SUB AR30744, (2) R40359 AND (2) R40360)
19	R27527	1	ADAPTER FITTING	(SUB FOR R27139)
20	R26287	1	O-Ring	-
21	19H1990	4	Cap Screw	1/2" X 2-1/4"
21	12H301	4	Lock Washer	1/2"
22	R26425	2	SNAP RING	-
23	R26737	2	BEARING RACE	-
24	R26552	13	Ball	-
25	R40757	1	BUSHING	(SUB FOR R31197)
26	R26426	4	WASHER	-
27	R31535	1	NUT	-
28	R32172	1	PLUG	-
29	R26421	1	Spring	-
30	R42849	1	Ball	(SUB FOR 405R)
31	34H249	1	Spring Pin	1/8" X 7/8"
32	R26547	1	WASHER	-
33	R26286	1	O-Ring	-
34	R32171	1	RELIEF VALVE	-
35	R26546	2	BACK-UP RING	-
36	B2762R	2	O-Ring	-
37	R26763	1	Washer	-
38	R26422	1	SPRING	-
39	R62955	1	Retainer	(SUB FOR R27092)
40	R26548	1	SNAP RING	-
41	R27514	1	SLEEVE	-
42	R26552	1	Ball	-
43	R27513	1	Sleeve	-
44	R26551	1	BACK-UP RING	-
45	R394R	1	O-Ring	-
46	R26286	1	O-Ring	-
47	R27094	1	Drain Plug	-
48	19H1139	6	Cap Screw	3/8" X 1-1/8"
48	12H304	6	Lock Washer	3/8"
49	19H1721	2	CAP SCREW	1/2" X 1-1/2"
49	12H301	3	Lock Washer	1/2"
50	R26761	1	DOWEL PIN	-
51	R26424	1	SPRING	-
52	R57034	1	COVER	(SUB FOR R26553 OR R51748)
53	14H649	4	Nut	1/4"
54	AR26402	1	LEVER	-
55	R31217	2	SCREW	(SUB FOR R26762, THIS APPLICATION)
56	AR26448	1	LEVER	-
57	R26554	2	SET SCREW	-

STEERING VALVE ASSEMBLY (TRACTOR SERIAL NO. -004499) [01J04]
