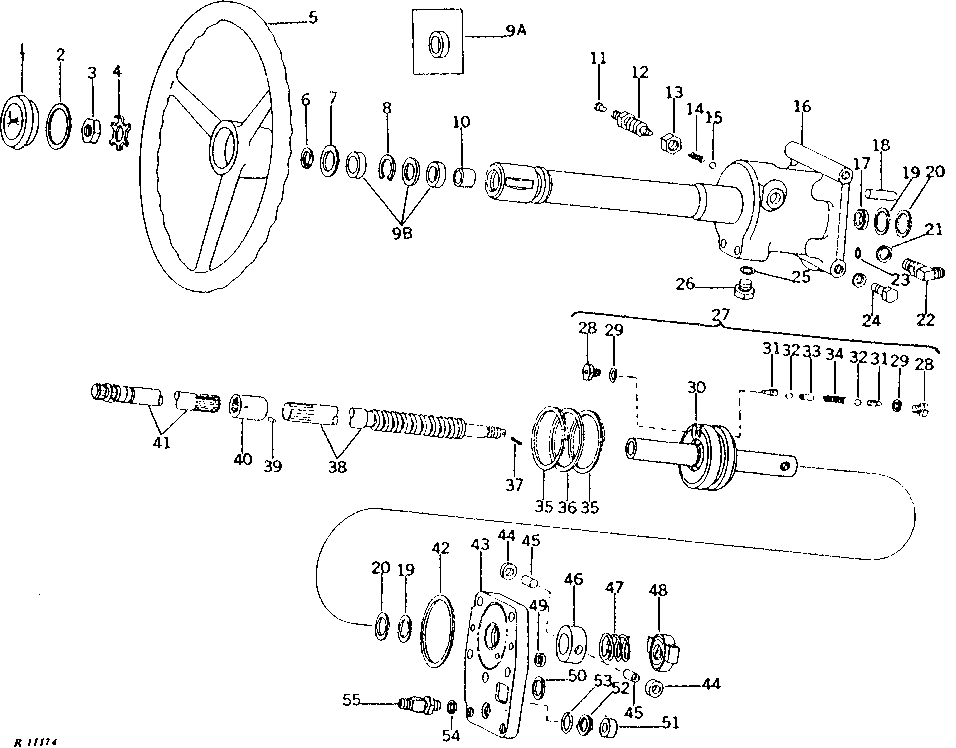

STEERING PISTON AND CYLINDER ASSEMBLY [01J02]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R34324	1	DECAL	(SUB FOR R26673) (NO LONGER AVAILABLE)
2	B3690R	1	O-Ring	-
3	14H904	1	Nut	3/4"
4	T17148	1	Lock Washer	(SUB R259492)
5	AR26625	1	STEERING WHEEL	-
6	B169R	1	SNAP RING	-
7	R42629	1	WASHER	-
8	R26933	1	SNAP RING	-
10	R27320	1	BUSHING	-
11	AR21969	1	Plug	-
12	R27299	1	SCREW	-
13	R27453	1	Nut	-
14	R26373	1	Spring	-
15	400R	1	Ball	6MM (1/4")
16	AR47289	1	CYLINDER	(MARKED R34118 OR R45297) (SUB FOR AR32700) (ALSO ORDER R26287, AR67783 AND R27216) (SUB FOR AR26908)
17	R27087	1	WASHER	-
18	R32186	2	DOWEL PIN	-
19	R26441	2	BACK-UP RING	-
20	A3606R	2	O-RING	-
21	R26448	1	O-Ring	-
22	AT35121	1	Elbow Fitting	(SUB FOR AR26725)
23	R60038	1	Packing	(SUB FOR R26760 OR R41708) (SUB AR67783)
24	19H1732	4	Cap Screw	3/8" X 1-1/4"
24	12H304	4	Lock Washer	3/8"
25	R26287	1	O-Ring	-
26	R27216	1	DRAIN PLUG	-
27	AR68651	1	PISTON	(SUB FOR AR30297)
28	R31202	2	VALVE	-
29	R26287	2	O-Ring	-
30	AR68651	1	PISTON	(SUB FOR R31200, R34554, R27510, AR30297 OR AR30298)
31	R31201	2	SHAFT	-
32	H871R	2	Ball	-
33	R31579	1	SPACER	(NO LONGER AVAILABLE)
34	A4816R	1	SPRING	-
35	R26754	2	BACK-UP RING	(SUB R40567, THIS APPLICATION)
36	R26543	1	O-Ring	(SUB R40567, THIS APPLICATION)
37	11M7081	1	Cotter Pin	0.098" X 0.787"
38	AR32756	1	STEERING SHAFT	(SUB FOR R27518)
38	R34125	1	SHAFT	-
39	34H282	1	Spring Pin	3/16" X 1"
40	R27319	1	SPLINED COUPLING	-
41	R73737	1	SHAFT	(SUB FOR R27318 OR R37426)
42	R34896	1	PACKING	(SUB AR67783)
43	AR44883	1	COVER	(SUB FOR R34120)
43	R26756	1	COVER	-
44	R26755	2	WASHER	-
45	R27091	2	PIN	-
46	R40149	1	LOCKING COLLAR	(SUB FOR R27090)
47	R40531	1	SPRING	(SUB FOR R26419)
48	R27089	1	NUT	-
49	R60038	1	Packing	(SUB FOR R26760 OR R41708) (SUB AR67783)
50	R31489	1	WASHER	-
51	R34121	1	PISTON	-
52	R26485	1	BACK-UP RING	-
53	R495R	1	O-Ring	-
54	R26286	1	O-Ring	-
55	AR35725	1	FITTING	-
..	AR39585	1	KIT	STEERING PISTON CYLINDER AND VALVE ASSEMBLY OVERHAUL, (SUB FOR AR30684)
..	AR42009	1	KIT	STEERING VALVE CYLINDER TO COVER PACKING, (SUB AR67783)
9A	AR26447	1	SEAL	(SUB R72858 AND R32731)
9B	AR34172	1	SEAL KIT	OIL SEAL, (SUB R72858 AND R32731)
