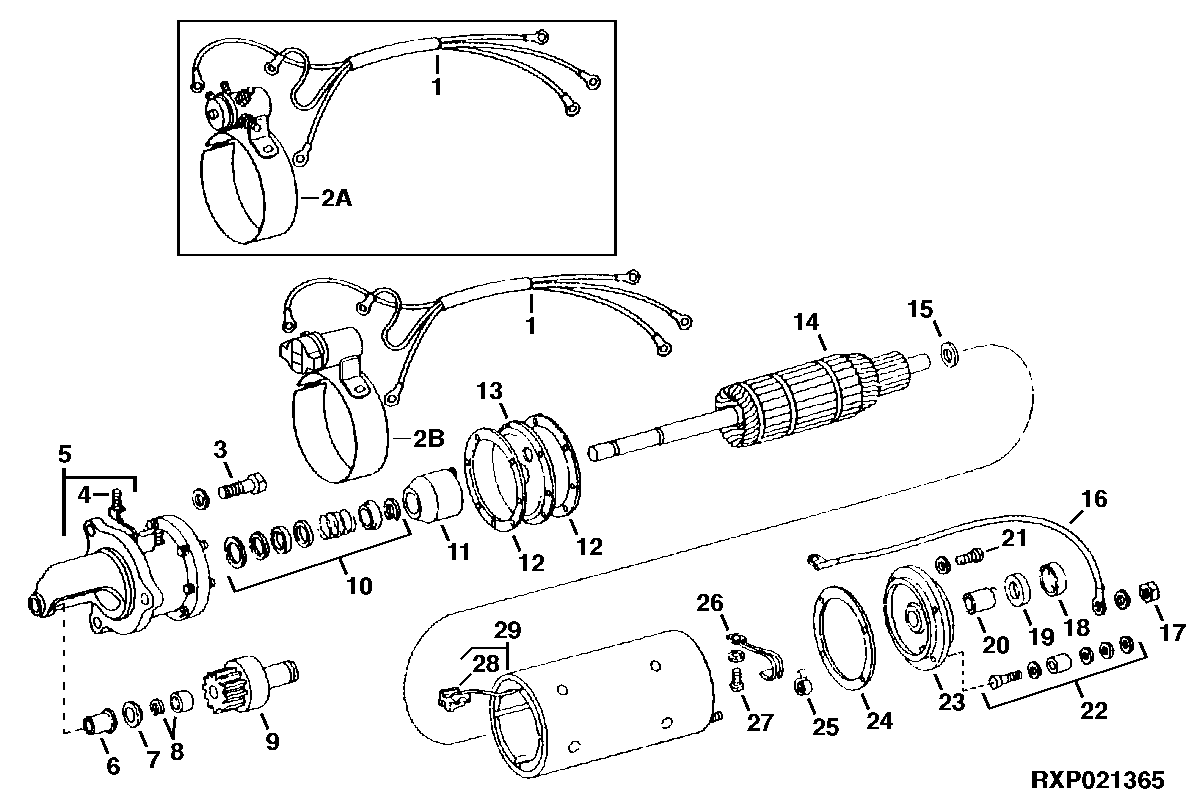

STARTER (24-VOLT) (PRESTOLITE NO. MFY-8001C) (AR45036) [01F05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR44842	1	WIRING HARNESS	(SUB FOR AR44841)
3	19H1721	3	CAP SCREW	1/2" X 1-1/2"
3	12H301	3	Lock Washer	1/2"
4	R41157	2	STUD	(NO LONGER AVAILABLE)
5	AR51742	1	HOUSING	(SUB FOR AR14013)
6	R14053	1	BUSHING	-
7	AT21702	1	THRUST WASHER	(SUB FOR R14026 OR AR36985)
8	AR36986	1	SNAP RING	(SUB FOR R14022 OR R14027)
9	R14047	1	DRIVE	-
10	AT21699	1	SPRING	(SUB FOR R14048, R14049, R14050, R14051, R14052 OR R14054)
11	R14034	1	PLUNGER	-
12	R14024	2	GASKET	-
13	R14035	1	BEARING	-
14	R14043	1	ARMATURE	-
15	AT21702	1	THRUST WASHER	(SUB FOR R14044 OR AR36985)
16	-	1	Part 18	356MM (14") (SUB FOR AR36987) (NLA)
17	12H304	1	Lock Washer	3/8"
17	14H732	1	Nut	3/8"
18	M4225T	1	PLUG	(SUB FOR R14039)
19	R14038	1	WASHER	-
20	R14037	1	BUSHING	-
21	21H1295	4	Screw	0.190" X 5/8"
21	12H246	4	LOCK WASHER	0.190"
22	AR36989	1	STUD	(NLA)
23	R14036	1	FRAME	(NO LONGER AVAILABLE)
24	R14025	1	GASKET	-
25	R14042	8	SPRING	-
26	R14041	8	BRUSH	-
27	21H1293	8	SCREW	0.164" X 5/16"
27	12H315	8	Lock Washer	0.164"
28	R14031	1	SWITCH	(SUB FOR AR36988)
29	R54267	1	FOAM PAD	(BRUSH INSULATOR) (NO LONGER AVAILABLE)
29	AR36990	1	FRAME	(SUB FOR R14040)
..	AR36991	1	FIELD WINDING COIL	-
..	TY6746	1	Starter Motor	(REMANUFACTURED) (SUB FOR AR14006, AR36849 OR AR45036)
..	R14082	1	HOLDER	-
..	AR45036	1	STARTER MOTOR	(PRESTOLITE MFY-8001C) (INCLUDES AR36850) (SUB TY6746) (SUB FOR AR14006 AND AR36849)
2A	AR44843	1	RELAY	(ALSO ORDER RE41287) (SUB RE45307)
2B	RE45307	1	RELAY	(SUB FOR AR44843)

STARTER (24-VOLT) (PRESTOLITE NO. MFY-8001C) (AR45036) [01F05]
