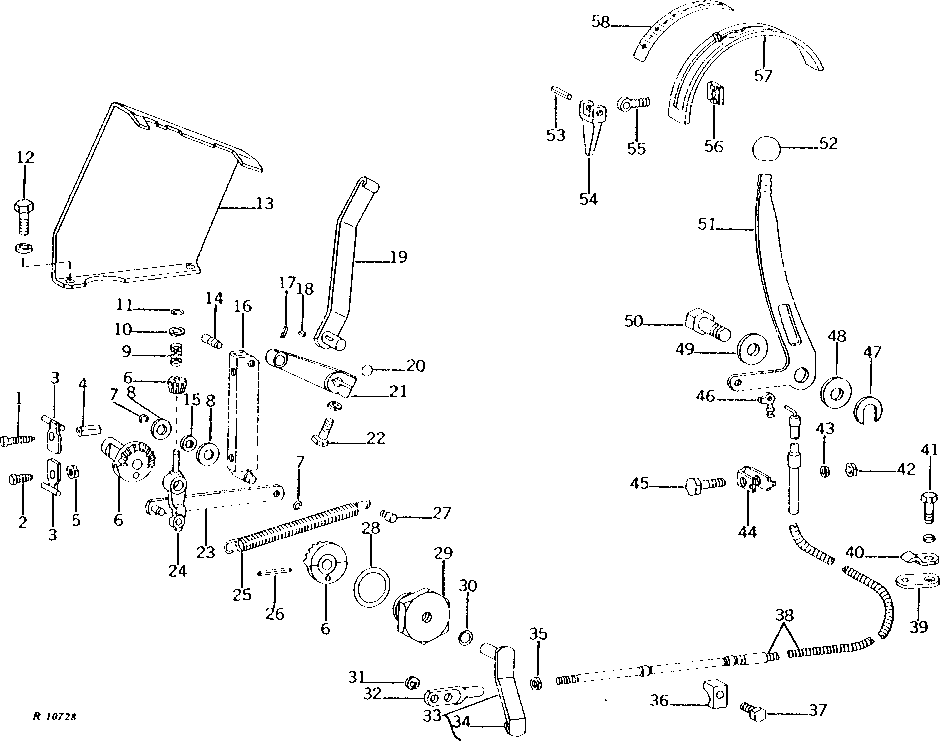

ROCKSHAFT AND LOAD CONTROL LEVERS AND LINKAGE [02C10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26554	1	SET SCREW	-
2	R26762	1	BOLT	-
3	AR26546	2	LEVER	-
4	R26567	1	NUT	-
5	14H649	1	Nut	1/4"
6	AR31272	1	GEAR	(SUB AR31274, R27674 AND R27675)
7	R72653	2	Snap Ring	(SUB FOR M2396T)
8	24M7207	2	Washer	8.400 X 24 X 2 MM
9	R26487	1	SPRING	-
10	24H1289	1	Washer	21/64" X 5/8" X 0.049"
11	R26386	1	SNAP RING	-
12	19H1936	2	Cap Screw	3/8" X 3/4"
12	12H304	2	Lock Washer	3/8"
13	R36405	1	QUADRANT	(NO LONGER AVAILABLE)
14	R27372	1	PIN	-
15	R27215	1	WASHER	-
16	AR26711	1	LINK	-
17	34H231	1	SPRING PIN	3/32" X 3/4"
18	26H67	1	Shaft Key	1/8" X 3/8"
19	AR35736	1	LEVER	(NO LONGER AVAILABLE)
20	R394R	1	O-Ring	-
21	R26571	1	LEVER	-
22	19H1905	1	Cap Screw	5/16" X 1"
22	12H303	1	Lock Washer	5/16"
23	AR26523	1	LINK	-
24	R26772	1	ARM	-
25	R26776	1	Spring	-
26	34H239	1	SPRING PIN	3/32" X 1-1/2"
27	R26564	1	PIN	-
28	R26773	1	O-Ring	-
29	R27214	1	BEARING HOUSING W/O BEARING	-
30	R394R	1	O-Ring	-
31	R27507	1	Snap Ring	(SUB R72654)
32	R31422	1	END	-
33	AR26524	1	LEVER	-
34	R26461	1	PIN FASTENER	-
35	14H850	1	NUT	1/4"
36	R26629	1	CLAMP	-
37	19H1849	1	Cap Screw	5/16" X 1-1/4"
38	AR36374	1	PUSH PULL CABLE	(SUB FOR R36427)
38	R39725	2	SEAL	-
38	R39726	1	SEAL	BOTTOM
38	R39727	1	SEAL	TOP
39	R31945	2	STRAP	(NO LONGER AVAILABLE)
40	R183R	2	CLIP	-
41	19H1732	1	Cap Screw	3/8" X 1-1/4", TO TRANSMISSION CASE
41	19H1731	1	Cap Screw	3/8" X 1", TO CLUTCH HOUSING
41	12H304	2	Lock Washer	3/8"
42	14H785	1	Nut	5/16"
43	12H303	1	Lock Washer	5/16"
44	R26870	1	CLAMP	-
45	19H1849	1	Cap Screw	5/16" X 1-1/4"
46	R26491	1	CLIP	-
47	R27603	1	Washer	1.52MM (.060") STEEL
48	R26574	1	WASHER	-
49	R63024	1	WASHER	(SUB FOR R26575) (SUB AR253740)
50	19H2356	1	CAP SCREW	9/16" X 1-3/4"
50	12H317	1	Lock Washer	9/16"
51	R27364	1	LEVER	-
52	R28164	1	KNOB	-
53	34H387	1	Spring Pin	3/16" X 3/4"
54	R34537	1	Cam	(SUB FOR R27366)
55	R31222	1	Bolt	-
56	R27605	1	NUT	-
57	R40476	1	STRAP	(SUB FOR R26576)
58	R40509	1	LABEL	(SUB FOR R27983, R34228 OR R39754)

ROCKSHAFT AND LOAD CONTROL LEVERS AND LINKAGE [02C10]
