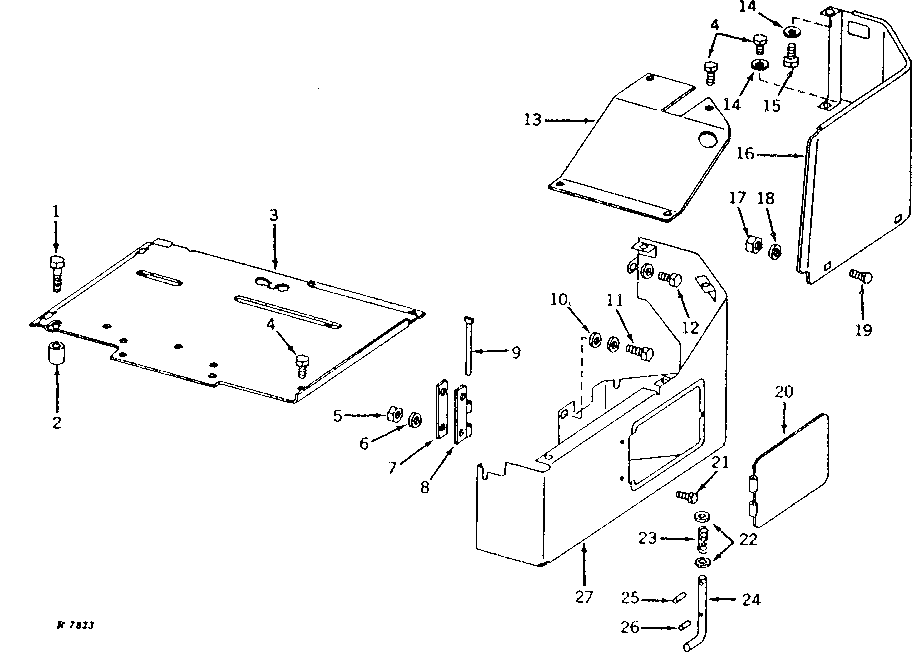

PLATFORM, TOOL BOX, AND OPERATOR SHIELDS [02F13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1726	3	Cap Screw	3/8" X 2-1/4"
2	28H1526	3	BUSHING	3/8" X 1-5/16"
3	AR35206	1	PLATFORM	(NO LONGER AVAILABLE)
4	19H2284	6	Cap Screw	3/8" X 7/8"
5	14H786	2	Nut	1/4"
6	12H302	2	Lock Washer	1/4"
7	R35214	1	RETAINER	(NLA)
8	R35213	1	PLATE	-
9	R20538	1	PIN	-
10	24H1309	2	Washer	13/32" X 1-1/16" X 0.120"
11	19H2284	2	Cap Screw	3/8" X 7/8"
11	12H304	2	Lock Washer	3/8"
12	19H1936	1	Cap Screw	3/8" X 3/4"
12	12H304	1	Lock Washer	3/8"
13	R35626	1	EXTENSION	R.H.
14	24M7096	4	Washer	10.500 X 18 X 1.600 MM
15	19H1732	2	Cap Screw	3/8" X 1-1/4"
16	AR35334	1	SHIELD	R.H. (NO LONGER AVAILABLE)
16	AR35335	1	SHIELD	L.H. (NO LONGER AVAILABLE)
17	14H1076	6	Nut	3/8"
18	12H304	6	Lock Washer	3/8"
19	03H1765	6	Bolt	3/8" X 3/4"
20	AR36778	1	DOOR	(USE WITH AR36777, AR47187 OR AR67385)
20	AR35050	1	DOOR	(USE WITH AR35049, AR36284 OR AR36413) (NO LONGER AVAILABLE)
21	19H1919	2	Cap Screw	1/4" X 5/8"
22	24M7096	2	Washer	10.500 X 18 X 1.600 MM
23	R1826R	1	Spring	(SUB FOR R27151)
24	R35210	1	PIN FASTENER	(NLA)
25	34H282	1	Spring Pin	3/16" X 1"
26	34H247	1	Spring Pin	1/8" X 3/4"
27	AR67385	1	TOOLBOX	(SUB FOR AR36777 OR AR47187) (ALSO ORDER AR36778) (SUB FOR AR35049, AR36284 OR AR36413)
27	R32239	1	Plug	-

PLATFORM, TOOL BOX, AND OPERATOR SHIELDS [02F13]
