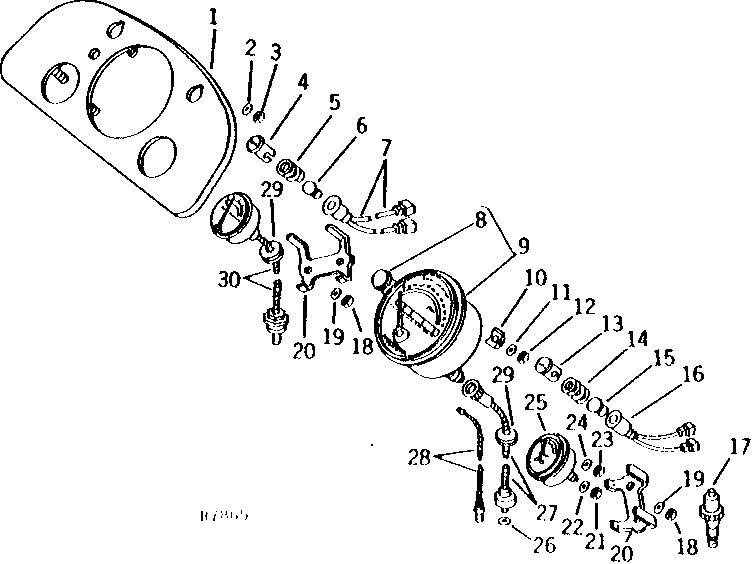

INSTRUMENT PANEL AND INSTRUMENTS (TRACTOR SERIAL NO. -007999) [01F21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR26715	1	INSTRUMENT PANEL	-
2	12M7060	4	Washer	0.209"
3	14H631	4	Nut	0.190"
4	AT48673	1	LENS	ALTERNATOR INDICATOR, (SUB FOR AR29615 OR AR45438)
5	R30378	1	Spring	-
6	AR55694	1	BULB	(SUB FOR R30379)
7	AT14699	1	INDICATOR LAMP	ALTERNATOR INDICATOR, (SUB FOR AR29350)
8	AR40802	1	KNOB	(SUB FOR AR30282)
9	AR50406	1	TACHOMETER	(SUB FOR AR26718, AR32833, AR39906 OR AR50402) (SUB RE206855) (ALSO ORDER RE220088)
10	R27381	4	CLIP	-
11	12M7060	4	Washer	0.209"
12	14H631	4	Nut	0.190"
13	AT48674	1	LENS	ENGINE OIL PRESSURE, (SUB FOR AR28552)
14	AR55694	1	BULB	-
15	AR55694	1	BULB	(SUB FOR R30379)
16	AR27944	1	LAMP	(SUB AT48674, AR55694, AT44165 AND R30378)
17	AT85174	1	Switch	ENGINE OIL PRESSURE, (SUB FOR AR27977)
18	14H631	4	Nut	0.190"
19	12M7060	4	Washer	0.209"
20	R34338	2	CLAMP	(SUB FOR R27384)
21	14H605	1	Nut	0.164"
22	12H315	1	Lock Washer	0.164"
23	14H631	1	Nut	0.190"
24	12H246	1	LOCK WASHER	0.190"
25	AR46271	1	GAUGE	FUEL, (SUB FOR AR26716, R34262 AND AT27153)
26	B3285R	1	Washer	-
27	AT17503	1	Drive Cable	(SUB FOR AT12695)
28	AT17503	1	Drive Cable	(SUB FOR AT15470)
29	R26936	2	Grommet	-
30	AR36013	1	GAUGE	WATER TEMPERATURE
..	RE220088	1	SPEEDOMETER	-

INSTRUMENT PANEL AND INSTRUMENTS (TRACTOR SERIAL NO. -007999) [01F21]
