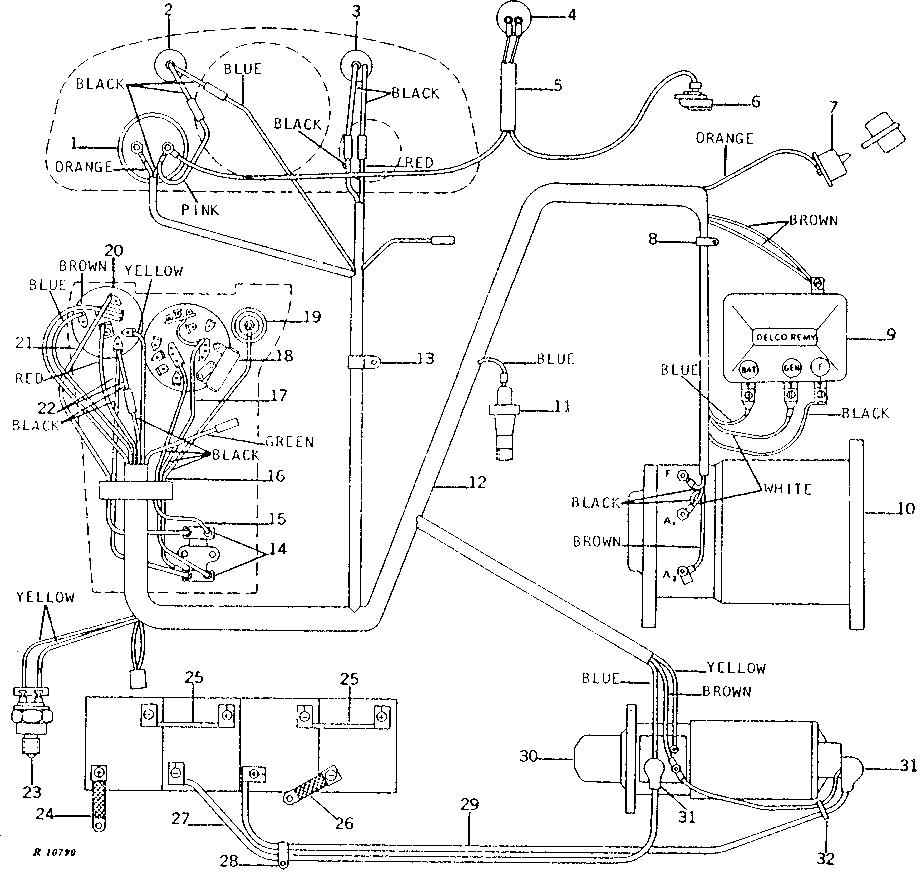

GENERATOR AND STARTER WIRING (TRACTOR SERIAL NO. 005574-007999) [01D17]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR46271	1	GAUGE	FUEL, (SUB FOR AR26716, R34262 OR AT27153)
2	AR27944	1	LAMP	ENGINE OIL PRESSURE, (SUB AT48674, AR55694, AT44165 AND R30378)
3	AT14699	1	INDICATOR LAMP	GENERATOR INDICATOR, (SUB FOR AR29350)
4	AR21823	1	SWITCH	-
5	R34702	1	WIRING HARNESS	-
6	AT39043	1	High Note Horn	(SUB FOR R11276)
7	R35648	1	FUEL SENDER	FUEL
8	R183R	1	CLIP	-
8	24H1287	1	Washer	9/32" X 5/8" X 0.065"
9	AR30155	1	VOLTAGE REGULATOR	(24-VOLT) (DELCO-REMY NO. 1119282)
10	AR34567	1	DC GENERATOR	(24-VOLT) (DELCO-REMY NO. 1103026) (SUB TY1447)
10	TY1447	1	DC GENERATOR	(24-VOLT) (REMANUFACTURED) (SUB FOR AR34567)
11	AT85174	1	Switch	OIL PRESSURE, (SUB FOR AR27977)
12	B1986R	2	CLIP	-
12	T13814	1	Clamp	-
12	R44302	2	Tie Band	(SUB FOR R27457)
12	AR47669	1	WIRING HARNESS	(NLA)
13	T13814	1	Clamp	-
14	AR28403	2	CIRCUIT BREAKER	-
15	-	1	Part 20	254MM (10") (SUB FOR AR30048) (MAKE FROM R66319, R32018, R65600, T28585 AND R32027)
16	-	1	Part 21	318MM (12-1/2") (SUB FOR AR30054) (MAKE FROM R66319 AND (2) R32018)
17	R36838	1	WIRING HARNESS	(NLA)
18	R37270	1	SWITCH	LIGHT
19	AR48643	1	ELECTRICAL LIGHTER	(SUB FOR AR30052 OR AR34556)
20	AR26557	1	SWITCH	KEY
21	-	1	Part 26	254MM (10") (SUB FOR AR30048) (MAKE FROM R66319, R32018, R65600, T28585 AND R32027)
22	AR30050	1	WIRING HARNESS	(NLA)
23	T16911	2	SHIM	-
23	RE38390	1	SWITCH	NEUTRAL START, (SUB FOR R36265, AR85323, AR89691 OR AT85153)
24	AR26619	1	GROUND CABLE	(SUB FOR AB1833R)
24	24H1305	1	Washer	13/32" X 13/16" X 0.065"
24	19H2284	1	Cap Screw	3/8" X 7/8"
24	12H304	1	Lock Washer	3/8"
25	RE21742	2	Battery Cable	(SUB FOR AA4039R)
26	AR26622	1	GROUND CABLE	NEGATIVE
26	24H1305	1	Washer	13/32" X 13/16" X 0.065"
26	19H2284	1	Cap Screw	3/8" X 7/8"
26	12H304	1	Lock Washer	3/8"
27	AR35212	1	BATTERY CABLE	NEGATIVE
28	R35668	1	Clamp	-
28	12H304	1	Lock Washer	3/8"
28	19H1936	1	Cap Screw	3/8" X 3/4"
29	AR35213	1	BATTERY CABLE	POSITIVE
30	AR45036	1	STARTER MOTOR	(24-VOLT) (PRESTOLITE) (SUB FOR AR14006 OR AR36849) (SUB TY6721)
30	TY6721	1	STARTER MOTOR REMAN	(24-VOLT) (REMANUFACTURED) (PRESTOLITE) (SUB FOR TY6610, AR14006, AR36849 OR AR45036)
30	RE43047	1	STARTER MOTOR	(24-VOLT) (DELCO-REMY) (SUB FOR AR55313, AR102770 OR AR102771)
30	TY6699	1	STARTER MOTOR	(24-VOLT) (REMANUFACTURED) (DELCO-REMY) (SUB FOR TY6611, AR55313, AR102770 OR AR102771)
30	TY6747	1	ALTERNATOR	(24-VOLT) (REMANUFACTURED) (DELCO-REMY)
30	SE501373	1	ALTERNATOR	(REMANUFACTURED FOR TY6747)
30	SE501443	1	STARTER MOTOR	(REMANUFACTURED FOR TY6699)
31	R30964	2	Cover	-
32	R44302	1	Tie Band	(SUB FOR R27457)
