Открытый узел

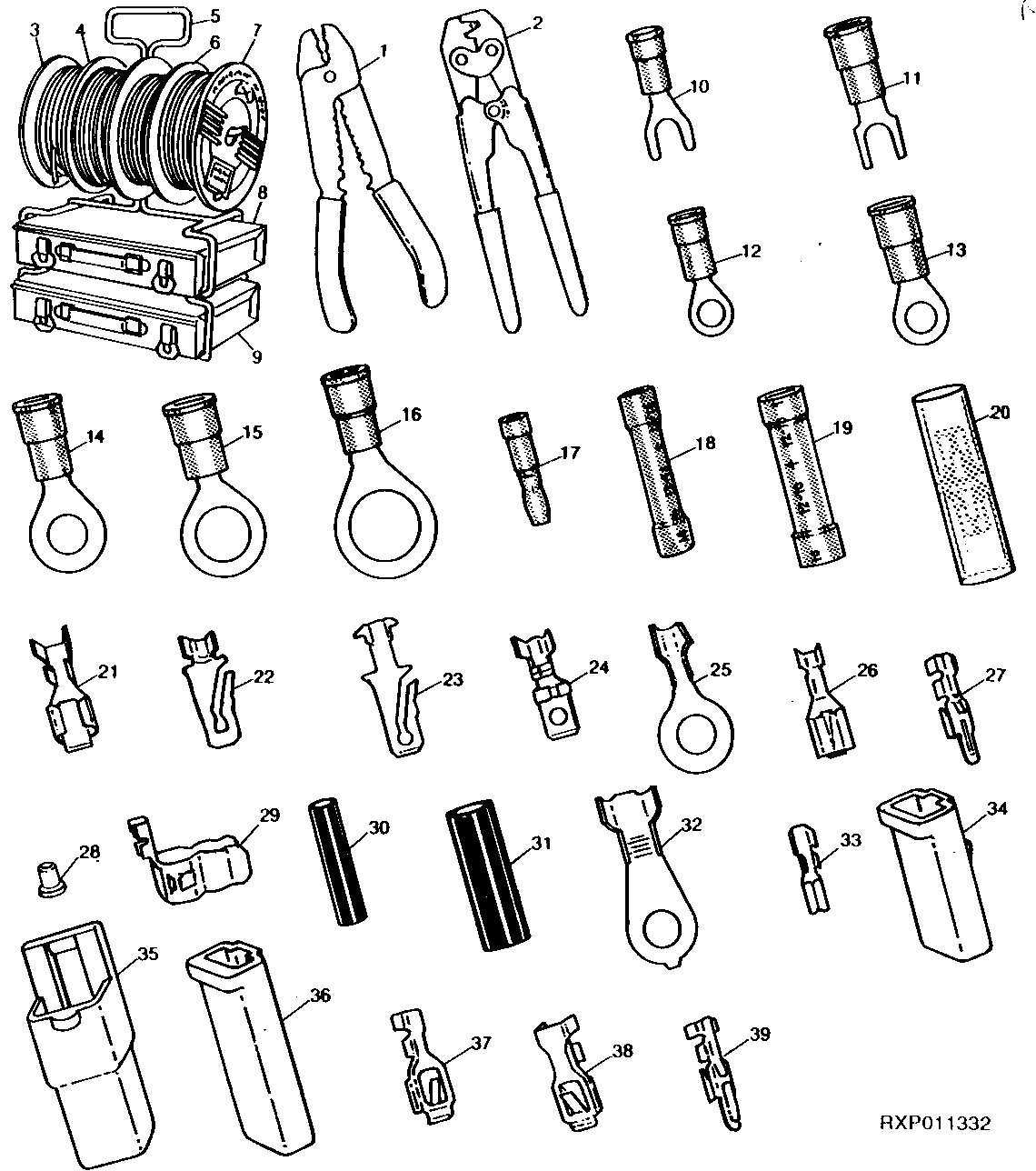

ELECTRICAL TERMINALS,CONNECTORS AND WIRING [01H01]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R32011	1	TOOL	(NLA)
2	R65594	1	Tool	-
3	R66319	1	Wiring Lead	14 GA., 30.5 M (100 FT.) (1 SPOOL)
4	R65593	1	Wiring Lead	16 GA., 30.5 M (100 FT.) (1 SPOOL)
5	R65608	1	Rack	-
6	R66321	1	Wiring Lead	10 GA., 15 M (50 FT.) (1 SPOOL)
7	R66320	1	Wiring Lead	(SUB TY16069) 12 GA., 30.5 M (100 FT.) (1 SPOOL)
8	R65609	1	Container	(NLA)
9	R65610	1	Container	-
10	R32016	1	Elec. Connector Terminal	14-16 GA., NO. 10 SPADE
11	R32017	1	Elec. Connector Terminal	10-12 GA., NO. 10 SPADE
12	R32018	1	Elec. Connector Terminal	14-16 GA., NO. 10 EYELET
13	R32019	1	Elec. Connector Terminal	10-12 GA., NO. 10 EYELET
14	R32021	1	Elec. Connector Terminal	10-12 GA., 1/4" EYELET
15	R32022	1	Elec. Connector Terminal	10-12 GA., 3/8" EYELET
16	R32023	1	Elec. Connector Terminal	10-12 GA., 1/2" EYELET
17	R32026	1	Elec. Connector Terminal	MALE BULLETT
18	R32027	1	Elec. Connector Terminal	SPLICE, 14-16 GA.
19	R32028	1	Elec. Connector Terminal	SPLICE, 10-12 GA.
20	AL2976T	1	Elec. Connector Terminal	(SUB FOR R32029) 2-WIRE BULLETT CONNECTOR
21	R65595	1	Elec. Connector Terminal	FEMALE, 10 GA.
22	R65596	1	Elec. Connector Terminal	MALE, 10 GA. OR TWO 14 GA. CABLES
23	R65597	1	Elec. Connector Terminal	MALE, 14-16 GA.
24	R65598	1	Elec. Connector Terminal	MALE, SHORT, 14-16 GA.
25	R65599	1	Elec. Connector Terminal	14-16 GA., 1/4" EYELET
26	R65600	1	Elec. Connector Terminal	FEMALE, 14-16 GA.
27	R65601	1	Elec. Connector Terminal	TWIN-LOCK, TWO 16 GA. CABLES
28	R65602	1	Elec. Connector Terminal	BULB SOCKET, 16-18 GA.
29	R65603	1	Elec. Connector Accessory	FUSE
30	R65604	1	Elec. Connector Accessory	14-18 GA.
31	R65605	1	Elec. Connector Accessory	8-12 GA.
32	R65606	1	Elec. Connector Terminal	6-8 GA., 1/4" EYELET
33	R65607	1	Elec. Connector Terminal	18-20 GA.
34	T28583	1	Elec. Connector Housing	ONE CONTACT LOCK-TYPE, MALE
35	T28585	1	Electrical Connector Assy	ONE CONTACT LOCK-TYPE, FEMALE
36	U46370	1	Electrical Connector Assy	CONNECTOR, ONE CONTACT SINGLE BODY, MALE
37	U46662	1	Elec. Connector Terminal	FEMALE
38	U46663	1	Elec. Connector Terminal	FEMALE
39	U46664	1	Elec. Connector Terminal	FEMALE

ELECTRICAL TERMINALS,CONNECTORS AND WIRING [01H01]
