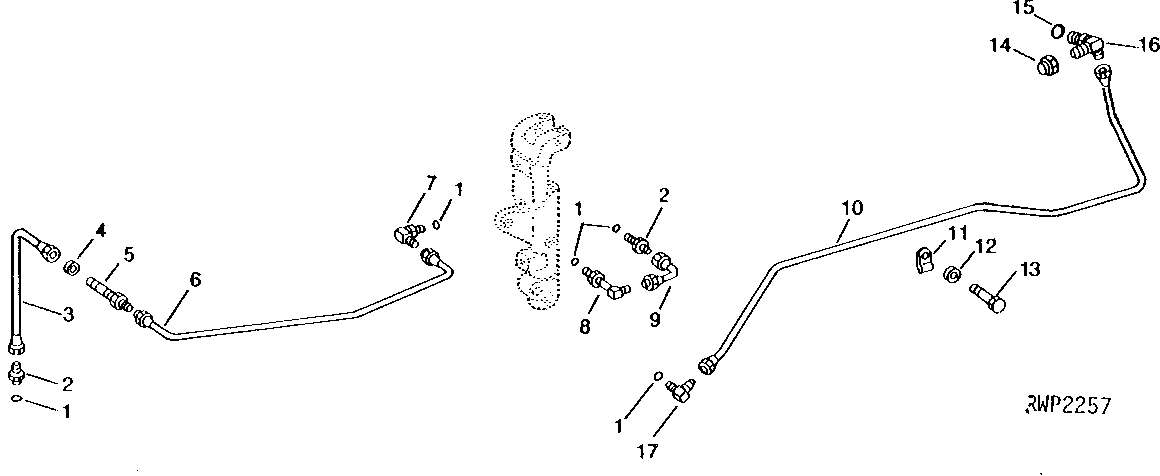

DIFFERENTIAL LOCK VALVE OIL LINES (SERIAL NO. 008000- ) [01I20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26286	5	O-Ring	-
2	R27272	2	Fitting	-
3	AR36256	1	OIL LINE	TO QUILL, INNER
4	T16911	1	SHIM	-
5	AR36250	1	FITTING	-
6	AR46389	1	OIL LINE	TO QUILL, OUTER
7	AT32333	1	ELBOW FITTING	(SUB FOR AR26771)
8	AR35710	1	ELBOW FITTING	-
9	AR36260	1	OIL LINE	-
10	AR36915	1	LINE	5/16" I.D., TO CONTROL SUPPORT BASE, R.H. (SUB AR36915)
10	AR36927	1	OIL LINE	3/16" I.D., TO CONTROL SUPPORT BASE, R.H.
11	R42357	1	CLAMP	(SUB FOR R27545)
11	R31654	1	CLAMP	(FOR 3/16" I.D. OIL PIPE)
12	A147R	1	WASHER	(SUB FOR R1929R)
13	19H1726	1	Cap Screw	3/8" X 2-1/4"
14	R36927	1	Fitting	(LESS ROCKSHAFT)
15	R26906	1	O-Ring	-
16	-	1	Part 18	(FOR 5/16" I.D. OIL PIPE) (SUB AR36915)
16	AR36856	1	TEE FITTING	(FOR 3/16" I.D. OIL PIPE)
17	AT32333	1	ELBOW FITTING	(FOR 5/16" I.D. OIL PIPE) (SUB FOR AR26771)
17	AR40475	1	ELBOW FITTING	(FOR 3/16" I.D. OIL PIPE)
..	AR36915	1	LINE	(CONSISTS OF AR36856, AR36927, AR40475, (2) R31654, R31655, (2) R36086) (AND ATTACHING HARDWARE)

DIFFERENTIAL LOCK VALVE OIL LINES (SERIAL NO. 008000- ) [01I20]

Нет текстового описания
