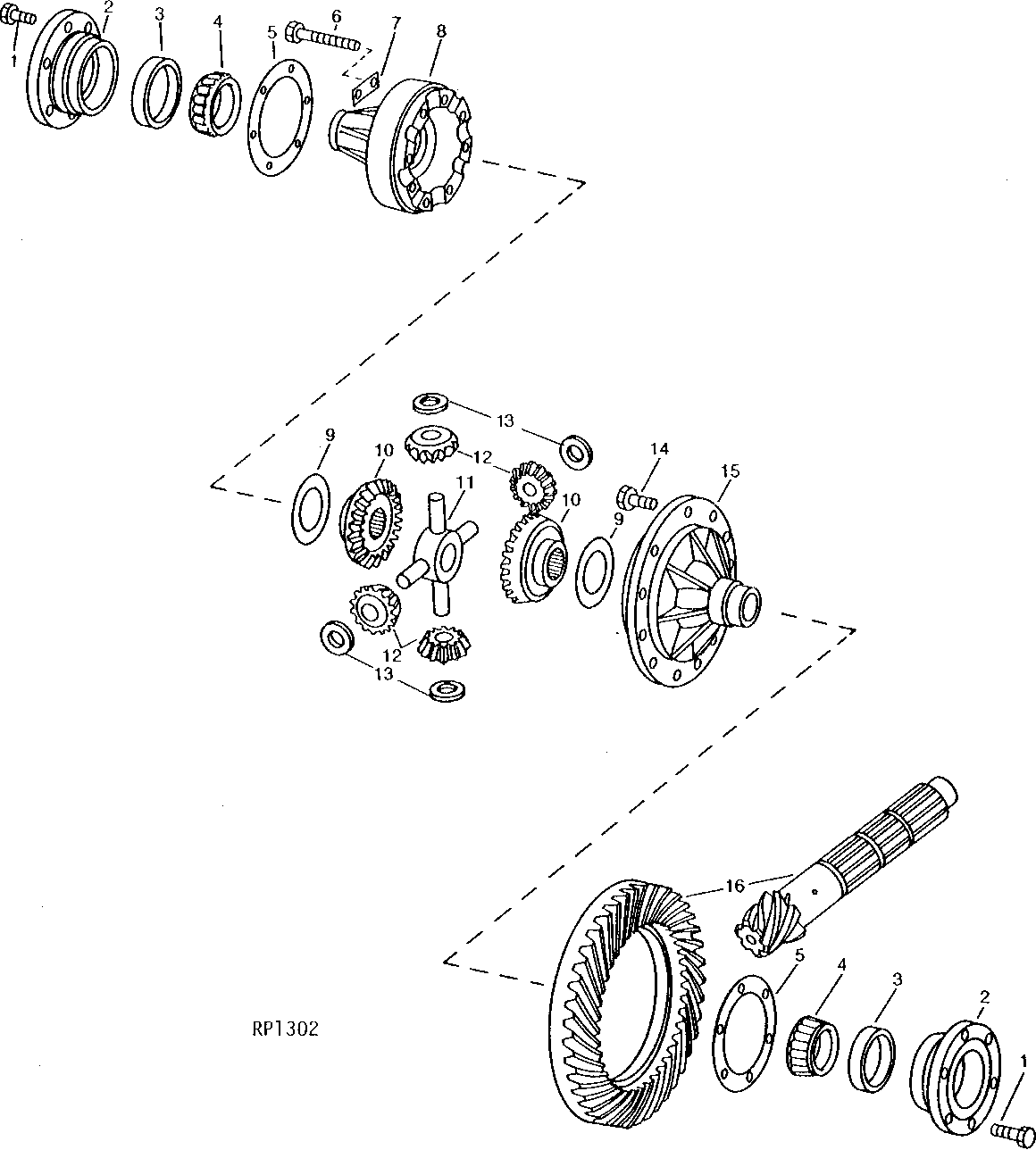

DIFFERENTIAL (LESS DIFFERENTIAL LOCK) [01I14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R52634	12	Cap Screw	(SUB FOR R35810)
2	R35500	2	BEARING HOUSING W/O BEARING	-
3	JD8214	2	Bearing Cup	-
4	JD8191	2	Bearing Cone	(USE WITH R35432 OR R35433)
4	JD9019	2	BEARING CONE	(USE WITH R42306, R42307, R49649 OR R57747)
5	R35501	1	Shim	0.08MM (.003")
5	R35502	1	Shim	0.13MM (.005")
5	R35503	1	Shim	0.25MM (.010")
6	19H1868	8	CAP SCREW	1/2" X 3-3/4"
7	R35497	4	PLATE	-
8	R57747	1	HOUSING	(ALSO ORDER JD9019) (SUB FOR R35433 OR R42307) (SUB R101287, (4) R112769 AND R75058)
9	R66788	2	WASHER	(SUB R99466)
10	R64257	2	Bevel Gear	(ALSO ORDER (2) R66788) (SUB FOR R35496) (SUB (2) R109489 AND R114132)
11	R35493	1	UNIVERSAL JOINT CROSS	(SUB (4) F215R, (2) R70038, (4) R70039, (4) R120349, (104) R70041 AND (4) R70042)
12	R48253	4	PINION	(SUB FOR R35498) (SUB (4) F215R, (2) R70038, (4) R70039, (4) R120349, (104) R70041 AND (4) R70042, THIS APPLICATION)
13	R35499	4	LOCK WASHER	-
14	R43368	12	Cap Screw	(SUB FOR R35495)
15	R49649	1	HOUSING	(ALSO ORDER JD9019) (SUB FOR R35432) (SUB FOR R42306)
16	AR39960	1	STEERING GEAR	(MARKED R35220 OR R43023 AND R40259) (SUB FOR AR35507) (NO LONGER AVAILABLE)
16	AR36689	1	GEAR	(MARKED R35220 OR R43023 AND R40259) (SUB FOR AR36130) (SUB AR36688, (2) R35365, (2) R35366, (4) R35367, (2) R36765, (2) R36766 AND (4) R36767)

DIFFERENTIAL (LESS DIFFERENTIAL LOCK) [01I14]
