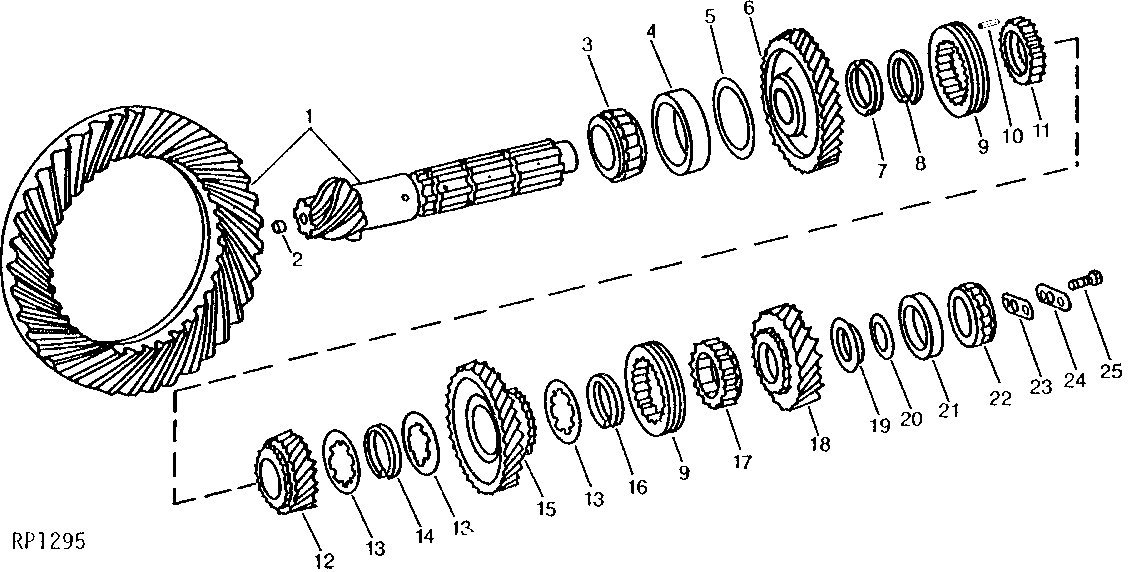

DIFFERENTIAL DRIVE AND BEVEL PINION SHAFT ASSEMBLY [01H22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR36689	1	GEAR	(MARKED R35220 OR R43023 AND R40259) (SUB FOR AR36130) (SUB AR36688, (2) R35365, (2) R35366, (4) R35367, (2) R36765, (2) R36766 AND (4) R36767)
1	AR39960	1	STEERING GEAR	(MARKED R35220 OR R43023 AND R40259) (SUB FOR AR35507) (NO LONGER AVAILABLE)
2	R31374	1	SOLID SHIM	-
3	JD8959	1	Bearing Cone	-
4	JD8261	1	Bearing Cup	-
5	R35365	1	Shim	0.08MM (.003") STEEL
5	R35366	1	Shim	0.13MM (.005") STEEL
5	R35367	1	Shim	0.25MM (.010") STEEL
5	R40268	1	WASHER	(REQUIRED WHEN AR36691 TRANSMISSION CASE HAS BEEN INSTALLED) (NO LONGER AVAILABLE)
6	AR35148	1	GEAR	(MARKED R35440) (48 TEETH) (1ST AND 3RD)
7	R35425	1	THRUST WASHER	-
8	R35372	1	SNAP RING	-
9	R35491	2	SHIFT COLLAR	-
10	34H241	2	Spring Pin	1/8" X 3/8"
11	AR35158	1	GEAR	(NLA)
12	R35443	1	GEAR	(26 TEETH) (6TH AND 8TH)
13	R35426	3	THRUST WASHER	-
14	R35373	1	SNAP RING	-
15	R35439	1	GEAR	(42 TEETH) (2ND AND 5TH)
16	R35371	1	SNAP RING	-
17	R35489	1	GEAR	-
18	R35442	1	GEAR	(33 TEETH) (4TH AND 7TH)
19	R36764	1	BUSHING	(ALSO ORDER (6) R36767) (SUB FOR R35427)
20	R36765	1	SHIM	0.08MM (.003") STEEL, (SUB FOR R35374)
20	R36766	1	SHIM	0.13MM (.005") STEEL, (SUB FOR R35375)
20	R36767	1	SHIM	0.25MM (.010") STEEL, (SUB FOR R35376)
21	JD8206	1	Bearing Cup	-
21	JD8235	1	BEARING CUP	-
22	JD7365	1	Bearing Cone	-
22	JD7359	1	BEARING CONE	-
23	R35428	1	PLATE	-
24	R35429	1	PLATE	-
25	19H1139	2	Cap Screw	3/8" X 1-1/8"

DIFFERENTIAL DRIVE AND BEVEL PINION SHAFT ASSEMBLY [01H22]
