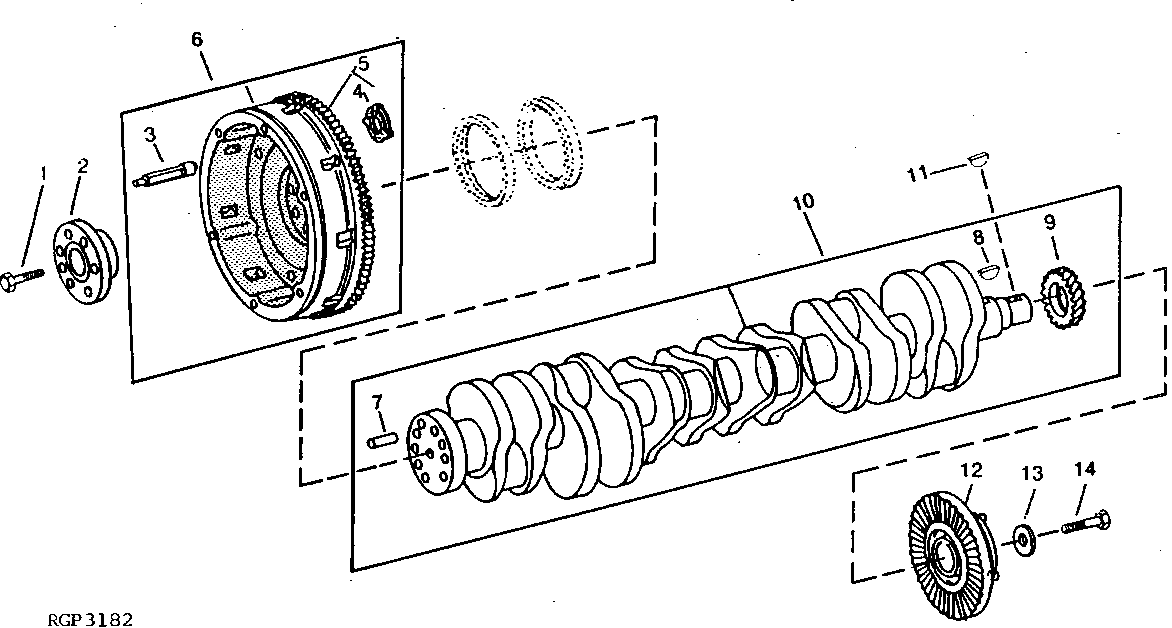

CRANKSHAFT AND FLYWHEEL (6531A & D) [01B15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R54099	6	CAP SCREW	(SUB FOR R42364 OR R63789) (5400)
1	R35044	6	SELF-LOCKING SCREW	(5010, 5020*, 5020&, 6030)
2	E48686	1	Hub	(5400)
3	R26646	3	PIN FASTENER	-
3	R36675	3	PIN FASTENER	-
3	R55274	3	PIN FASTENER	(SUB FOR R49215) (6030)
4	R57480	1	Gasket	(5020*, 5020&, 6030)
5	AR103044	1	Kit	(MARKED R76000) (SUB FOR R35047)
6	AR103322	1	Gasket Kit	(MARKED R63349) (SUB FOR AR78264) (5400)
6	AR52802	1	Flywheel	(MARKED R49350) (SUB AR103322) (5400)
6	AR103109	1	FLYWHEEL	(MARKED R49220 OR R54780) (SUB FOR AR52639, AR63261 OR AR64672) (5010)
6	AR103112	1	FLYWHEEL	(MARKED R44070) (SUB FOR AR45278)
6	AR103108	1	FLYWHEEL	(MARKED R35060, R42200, R42210, R40190 OR R40820) (SUB FOR AR36904, AR35800, AR36092, AR40936, AR36619, AR44104 OR AR44105) (5020*, 5020&) (NLA)
7	R60161	2	Dowel Pin	(SUB FOR R35046 OR T23740)
8	26H12	1	SHAFT KEY	1/8" X 3/4"
9	R35045	1	GEAR	-
10	AR69263	1	CRANKSHAFT	(MARKED R36350 OR R63476) (SUB FOR AR35010) (SUB AR92533)
11	26H85	1	Shaft Key	1/4" X 1"
12	AR58180	1	ABSORBER	(A) (SUB FOR R35646) (NOT SHOWN) (5010)
12	AR58177	1	ABSORBER	(A) (SUB FOR R34365, AR53023 OR AR50397) (5010, 5020*, 5020&, 6030)
12	AR58178	1	ABSORBER	(A) AIR CONDITIONING, (NOT SHOWN) (5020&, 6030) (NLA)
12	-	1	Part 22	(7520)
13	R26333	1	Washer	-
14	19H2706	1	Cap Screw	5/8" X 2", HS, SAE 8

CRANKSHAFT AND FLYWHEEL (6531A & D) [01B15]
