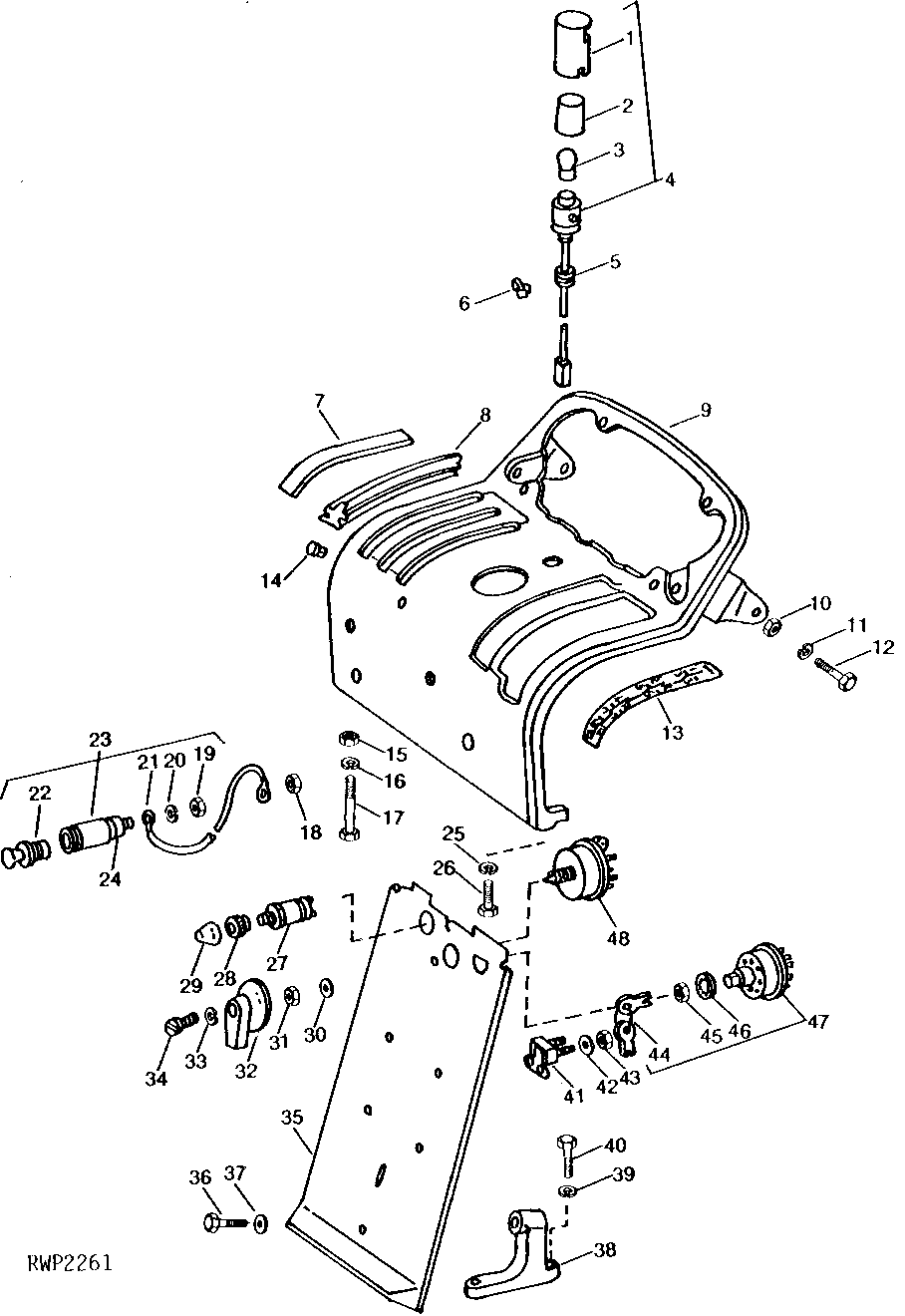

CONTROL SUPPORT COVER, SWITCHES, DASH, AND DASH LAMP (TRACTOR SERIAL NO. 004500- ) [01F19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R40192	1	COVER	(SUB FOR R28793)
2	R28792	1	LENS	-
3	AT12948	1	BULB	6 C.P., 12-14 VOLT
4	AR33479	1	LAMP	DASH, (SUB FOR AR35993 OR RE13195)
5	A3411R	1	Grommet	-
6	R21551	1	CLIP	(SUB FOR F2084R)
7	R27361	1	ISOLATOR	-
8	AR91941	1	STOP	(NLA)
9	AR68197	1	INSTRUMENT PANEL	(SUB FOR AR34959)
10	14H1076	2	Nut	3/8"
11	12H304	2	Lock Washer	3/8"
12	19H1936	2	Cap Screw	3/8" X 3/4"
13	R40676	1	LABEL	(SUB FOR R27892 OR R34246)
14	R27983	1	Plug	-
15	14H812	1	NUT	3/8"
16	12H304	1	Lock Washer	3/8"
17	19H1765	1	Cap Screw	3/8" X 1-3/4"
18	14H631	1	Nut	0.190"
19	14H605	2	Nut	0.164"
20	12M7084	1	Lock Washer	0.169"
21	AR94130	1	WIRING LEAD	-
22	AR60937	1	Electrical Lighter	(SUB FOR AA5787R)
23	AR48643	1	ELECTRICAL LIGHTER	(SUB FOR AR34556 OR AR46079)
24	AR30394	1	CIRCUIT BREAKER	-
25	12H304	1	Lock Washer	3/8"
26	19H1936	1	Cap Screw	3/8" X 3/4"
27	R39554	1	Switch	ETHER AID, (ALSO ORDER AR47374) (SUB FOR AR46184 OR AR47373)
28	R21157	1	NUT	(SUB AR47374)
29	R39549	1	CAP	(SUB FOR AR47374)
30	12H292	1	Lock Washer	1/2"
31	A4655R	1	Nut	1/2"
32	AT65316	1	KNOB	(SUB FOR R27963)
33	12H315	1	Lock Washer	0.164"
34	21H1299	1	SCREW	0.164" X 3/8"
35	AR36315	1	COVER	(SUB FOR AR35613) (NLA)
36	19H1731	1	Cap Screw	3/8" X 1"
37	24H1305	1	Washer	13/32" X 13/16" X 0.065"
38	R49802	1	BRACKET	(SUB FOR R35623)
39	12H304	2	Lock Washer	3/8"
40	19H1139	2	Cap Screw	3/8" X 1-1/8"
41	AR28403	2	CIRCUIT BREAKER	-
42	12M7060	2	Washer	0.209"
43	14H631	2	Nut	0.190"
44	A4700R	1	KEY	-
45	T15969	1	Nut	(SUB FOR R39553)
46	12M7038	1	Lock Washer	0.650"
47	AR26557	1	SWITCH	KEY
47	AR39505	1	ROTARY SWITCH	KEY
48	R37270	1	SWITCH	LIGHT
48	AR41288	1	SWITCH	LIGHT, (SUB FOR R39551)

CONTROL SUPPORT COVER, SWITCHES, DASH, AND DASH LAMP (TRACTOR SERIAL NO. 004500- ) [01F19]
