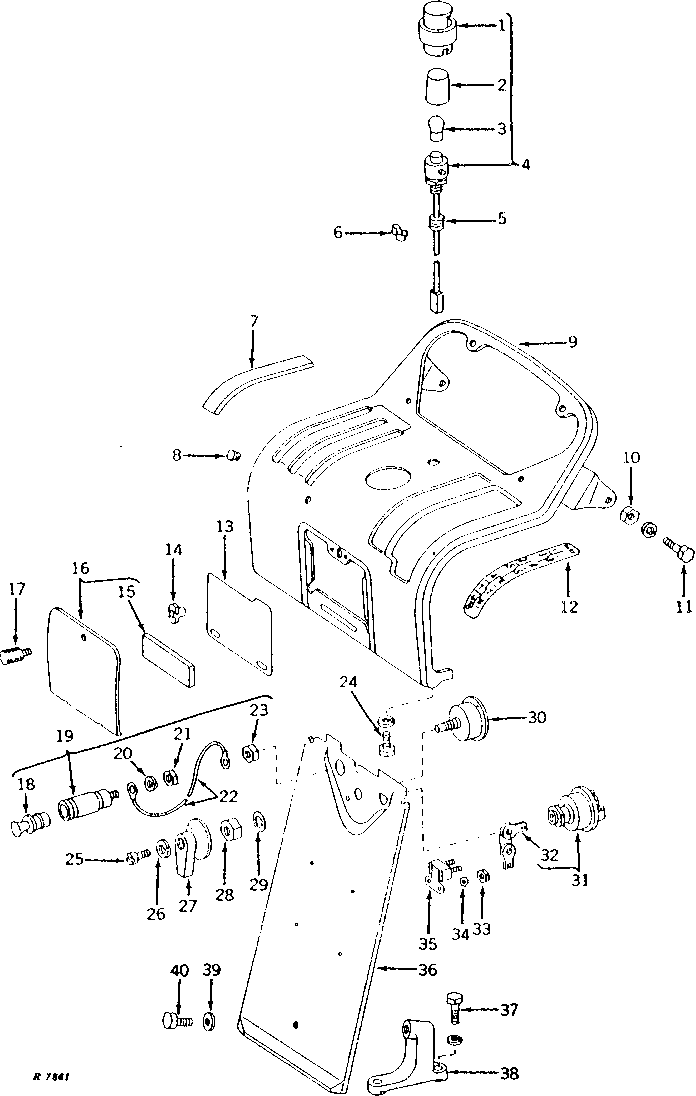

CONTROL SUPPORT COVER, SWITCHES, DASH, AND DASH LAMP (TRACTOR SERIAL NO. -004499) [01F17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R40192	1	COVER	(HOBBS) (SUB FOR R28793)
2	R28792	1	LENS	(HOBBS)
3	AT12948	1	BULB	-
4	AR33479	1	LAMP	DASH, (SUB FOR AR35993 OR RE13195)
5	A3411R	1	Grommet	-
6	R21551	1	CLIP	(SUB FOR F2084R)
7	R27361	1	ISOLATOR	-
8	R27983	1	Plug	-
9	-	1	Part 9	(SUB FOR AR26730 OR AR34959) (SUB AR68197)
10	14H1076	2	Nut	3/8"
11	19H1936	2	Cap Screw	3/8" X 3/4"
11	12H304	2	Lock Washer	3/8"
12	R40676	1	LABEL	(SUB FOR R27892 OR R34246)
13	-	1	Part 14	(NO LONGER FURNISHED)
14	R28056	1	NUT	-
15	R27891	1	ISOLATOR	-
16	AR26996	1	DOOR	-
17	R27890	1	KNOB	-
18	AR60937	1	Electrical Lighter	(SUB FOR AA5787R)
19	AR48643	1	ELECTRICAL LIGHTER	(SUB FOR AR30052, AR34556 OR AR46079)
19	AR30394	1	CIRCUIT BREAKER	LIGHTER
20	12M7084	1	Lock Washer	0.169"
21	14H605	1	Nut	0.164"
22	AR94130	1	WIRING LEAD	-
23	14H631	1	Nut	0.190"
24	19H1936	2	Cap Screw	3/8" X 3/4"
24	12H304	2	Lock Washer	3/8"
25	21H1299	1	SCREW	0.164" X 3/8"
26	12H315	1	Lock Washer	0.164"
27	AT65316	1	KNOB	(SUB FOR R27963)
28	A4655R	1	Nut	-
29	12H292	1	Lock Washer	1/2"
30	AR28402	1	SWITCH	LIGHT
31	AR26557	1	SWITCH	KEY
32	A4700R	1	KEY	-
33	14H631	2	Nut	0.190"
34	12M7060	2	Washer	0.209"
35	AR28403	2	CIRCUIT BREAKER	-
36	AR36315	1	COVER	(SUB FOR AR35613) (NLA)
37	19H1139	2	Cap Screw	3/8" X 1-1/8"
37	12H304	2	Lock Washer	3/8"
38	R49802	1	BRACKET	(SUB FOR R35623)
39	24H1305	1	Washer	13/32" X 13/16" X 0.065"
40	19H1731	1	Cap Screw	3/8" X 1"

CONTROL SUPPORT COVER, SWITCHES, DASH, AND DASH LAMP (TRACTOR SERIAL NO. -004499) [01F17]
