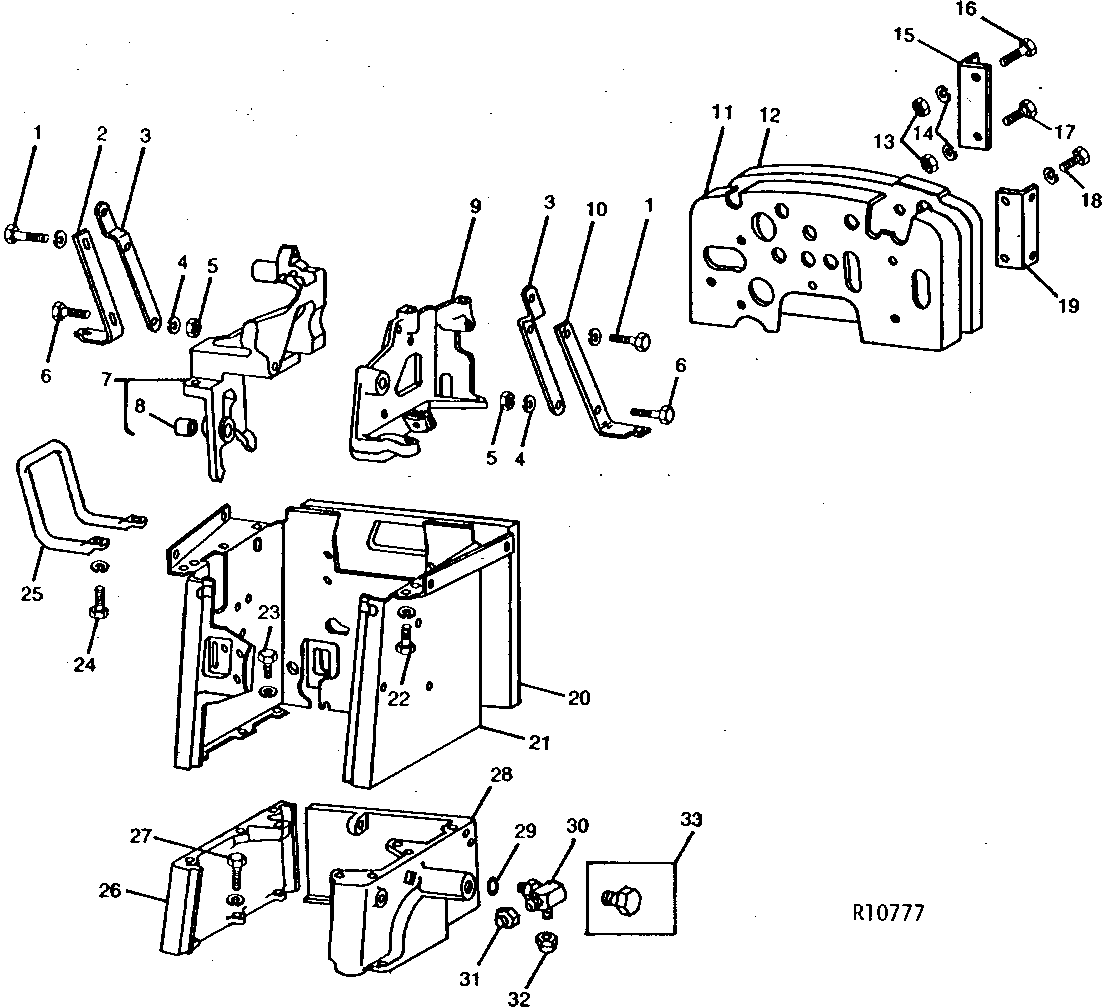

CONTROL SUPPORT, BASE, AND STEERING VALVE BRACKETS [02F11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H310	2	Lock Washer	3/8"
1	19H1139	2	Cap Screw	3/8" X 1-1/8"
2	R31231	1	SUPPORT	HOOD
3	R31229	2	SUPPORT	DASH
4	12H310	2	Lock Washer	3/8"
5	14H1076	2	Nut	3/8"
6	19H1731	2	Cap Screw	3/8" X 1"
7	AR53470	1	BRACKET	(MARKED R36083 OR R49637) (ALSO ORDER R49799) (SUB FOR AR35577)
8	R27567	1	BUSHING	-
9	R47079	1	BRACKET	(SUB FOR R32390)
10	R31230	1	SUPPORT	HOOD
11	AR34927	1	ISOLATOR	(SUB FOR AR30305, AR31636 OR AR34011) (NO LONGER AVAILABLE)
12	R56059	1	PAD	(SUB FOR R34562)
13	14H1076	2	Nut	(A) 3/8"
14	12H304	2	Lock Washer	(A) 3/8"
15	R26895	1	ANGLE	(A)
16	19H1726	1	Cap Screw	(A) 3/8" X 2-1/4"
17	19H1765	1	Cap Screw	(A) 3/8" X 1-3/4"
18	19H2284	2	Cap Screw	3/8" X 7/8"
18	12H304	2	Lock Washer	3/8"
19	R26895	1	ANGLE	-
20	R56059	1	PAD	(SUB FOR R35825)
21	AR32818	1	SUPPORT	(SUB FOR AR35380) (NO LONGER AVAILABLE)
22	19H2284	3	Cap Screw	3/8" X 7/8"
22	12H304	3	Lock Washer	3/8"
23	19H1936	6	Cap Screw	3/8" X 3/4"
23	12H304	6	Lock Washer	3/8"
24	19H1732	2	Cap Screw	3/8" X 1-1/4"
24	19H2284	2	Cap Screw	3/8" X 7/8"
24	12H304	2	Lock Washer	3/8"
25	R27884	1	PIN	-
26	R50964	1	BASE	(SUB FOR R35551)
27	19H1732	8	Cap Screw	3/8" X 1-1/4"
27	12H304	8	Lock Washer	3/8"
28	R47915	1	BASE	(SUB FOR R35550)
29	R26906	1	O-Ring	-
30	-	1	Part 37	(DIFFERENTIAL LOCK) (SUB AR36915) (SUB AR36856 AND R40583) (LESS DIFFERENTIAL LOCK)
31	R36927	1	Fitting	(B)
32	R36926	1	FITTING	(C)
32	R40583	1	FITTING	(C) (USE WITH AR36856)
33	R27474	1	Drain Plug	(B)

CONTROL SUPPORT, BASE, AND STEERING VALVE BRACKETS [02F11]
