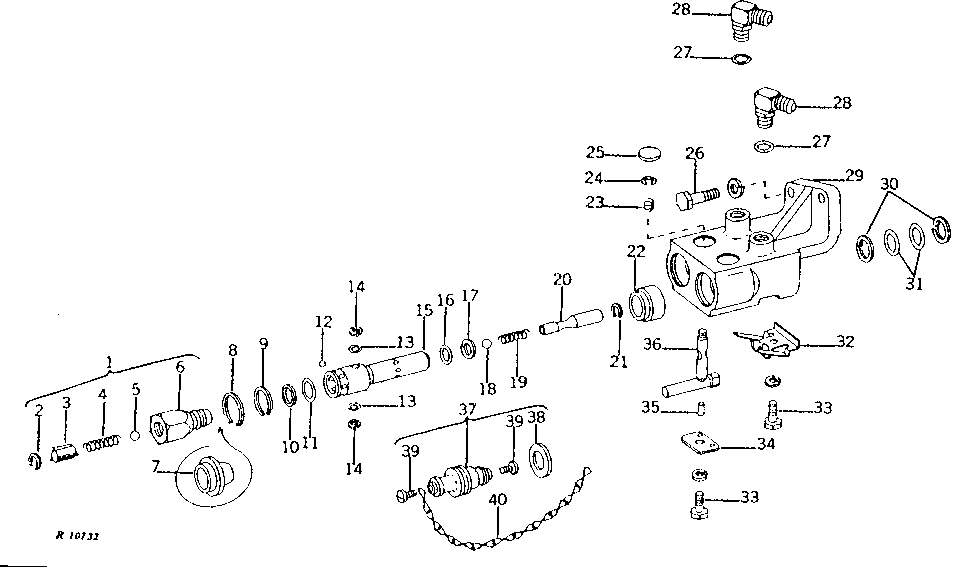

BREAKAWAY COUPLER (TRACTOR SERIAL NO. 004500- ) [02D10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR30210	2	HYDR.QUICK COUPLER PLUG	(SUB AR93819)
2	R59633	2	WEAR RING	(SUB FOR R28204)
3	R28085	2	GUIDE	(SUB AR93819)
4	R28084	2	SPRING	-
5	D2361R	2	Ball	-
6	R27430	2	HYD. QUICK-CONNECT COUPLER	(SUB AR93819)
7	R28006	2	CAP	-
8	R34399	2	Snap Ring	-
9	R32356	2	SNAP RING	-
10	R26485	2	BACK-UP RING	-
11	R495R	2	O-Ring	(SUB R59343, THIS APPLICATION)
12	400R	12	Ball	-
13	R65286	4	O-RING	(SUB FOR A3917R, THIS APPLICATION)
14	R26484	4	Back-Up Ring	-
15	R34397	2	SOCKET OUTLET	-
16	R375R	2	O-Ring	-
17	R26482	2	Ring	-
18	D2361R	2	Ball	-
19	R28084	2	SPRING	-
20	R34400	2	PLUG	-
21	R26483	2	SNAP RING	-
22	R34398	2	SLEEVE	-
23	R31890	2	Spring	-
24	R72653	2	Snap Ring	(SUB FOR M2396T)
25	30H15	2	PLUG	1-1/8"
26	19H3579	2	Cap Screw	1/2" X 1-3/8"
26	12H301	2	Lock Washer	1/2"
27	R26375	2	O-Ring	-
28	AT32332	2	Elbow Fitting	(SUB FOR AR26763)
29	AR52620	1	HOUSING	(SUB FOR AR48295) (SUB R34396, R49191, R72654, 12H10 AND 24H1286)
30	R26480	4	BACK-UP RING	-
31	A4730R	4	O-Ring	-
32	R30818	1	SPRING	-
33	19H1900	2	Cap Screw	5/16" X 3/4"
33	12H303	2	Lock Washer	5/16"
34	R51285	1	PLATE	(SUB FOR R34402 OR R41494) (SUB AR75958)
35	34H244	2	SPRING PIN	1/8" X 9/16"
36	AR99100	2	LEVER	(SUB FOR AR33877 OR AR82576)
37	AR52623	2	PLUG	(SUB FOR AR34059)
38	R34589	2	WASHER	-
39	37H97	4	SCREW	0.242" X 3/4", (SUB FOR A4322R)
40	AN163885	2	Link Chain	(SUB FOR A3184R OR R49193)
