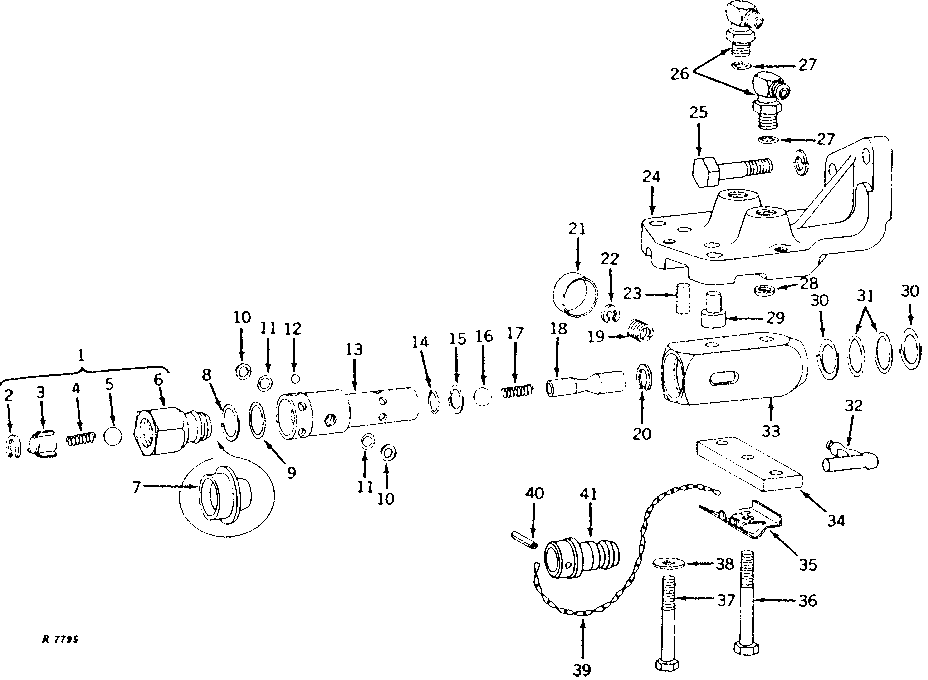

BREAKAWAY COUPLER AND BRACKET (TRACTOR SERIAL NO. -004499) [02D08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR30210	1	HYDR.QUICK COUPLER PLUG	(SUB AR93819)
2	R28204	1	SNAP RING	-
3	R28085	1	GUIDE	(SUB AR93819)
4	R28084	1	SPRING	-
5	D2361R	1	Ball	-
6	R27430	1	HYD. QUICK-CONNECT COUPLER	(SUB AR93819)
7	R28006	1	CAP	-
8	R26485	1	BACK-UP RING	-
9	R495R	1	O-Ring	-
10	R26484	2	Back-Up Ring	-
11	A3917R	2	O-Ring	-
12	400R	6	Ball	-
13	R34397	1	SOCKET OUTLET	(SUB FOR R28815)
14	R375R	1	O-Ring	-
15	R26482	1	Ring	-
16	D2361R	1	Ball	-
17	R28084	1	SPRING	-
18	R34400	1	PLUG	(ALSO ORDER R34397) (SUB FOR R28816)
19	R31890	1	Spring	-
20	R26483	1	SNAP RING	-
21	R28672	1	BUSHING	(A)
22	R72653	1	Snap Ring	(SUB FOR M2396T)
23	R28671	1	Dowel Pin	(B)
24	AR35038	1	BRACKET	(A) (MARKED R35161) (NO LONGER AVAILABLE)
25	19H456	1	CAP SCREW	(B) 1/2" X 1-3/8"
25	12H301	1	Lock Washer	(B) 1/2"
26	AT32332	1	Elbow Fitting	(B) (SUB FOR AR26763)
27	R26375	1	O-Ring	(B)
28	F2741R	1	Packing	(B)
29	R28673	1	CAM	(B)
30	R26480	2	BACK-UP RING	-
31	A4730R	2	O-Ring	-
32	AR31584	1	LEVER	-
33	R28814	1	BREAKAWAY COUPLER	L.H.
33	R28813	1	BREAKAWAY COUPLER	R.H.
34	R28674	1	STRAP	(A)
35	R30818	1	SPRING	(A)
36	19H1944	1	Cap Screw	3/8" X 2-3/4", (3 USED SINGLE SELECTIVE CONTROL) (6 USED DUAL SELECTIVE CONTROL)
37	19H1733	1	CAP SCREW	(A) 3/8" X 2-1/2"
38	A4231R	1	WASHER	(A)
39	AN163885	1	Link Chain	(B) (SUB FOR A3184R OR R49193)
40	34H282	1	Spring Pin	(B) 3/16" X 1"
41	AR34059	1	PLUG	(B) (SUB FOR AR31637) (SUB AR52623)
..	AR30781	1	BREAKAWAY COUPLER	R.H. (NO LONGER AVAILABLE)
..	AR30782	1	BREAKAWAY COUPLER	L.H. (NO LONGER AVAILABLE)
