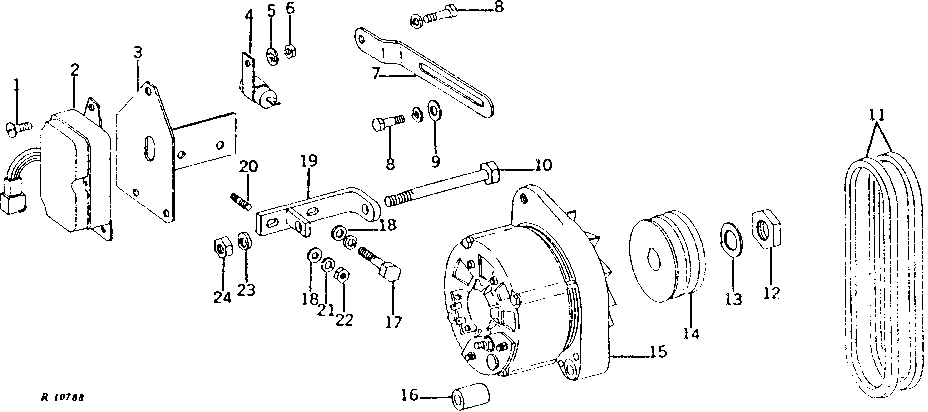

ALTERNATOR, REGULATOR, AND MOUNTING BRACKET (TRACTOR SERIAL NO. -005573) (TRACTOR SERIAL NO. 008000- ) [01E04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	21H1316	3	Screw	0.190" X 1/2"
2	AR36977	1	VOLTAGE REGULATOR	(24-VOLT) (MOTOROLA) (SUB FOR R15017) (NLA)
2	AR39845	1	WIRING HARNESS	REGULATOR TO ALTERNATOR (NLA)
2	AR40779	1	VOLTAGE REGULATOR	(24-VOLT) (MOTOROLA) (SUB AR40780, 12H302, 14H786, 21H1302 AND 24M7207)
3	R34967	1	BRACKET	(NLA)
4	R15005	1	RESISTOR	-
5	12M7060	3	Washer	0.209"
6	14H631	3	Nut	0.190"
7	R40775	1	STRAP	(SUB FOR R36953)
8	19H1900	2	Cap Screw	5/16" X 3/4"
8	12H303	2	Lock Washer	5/16"
9	24H1292	1	Washer	11/32" X 3/4" X 0.120"
10	19H1925	1	Cap Screw	3/8" X 4-1/4"
11	AR56638	1	BELT SET	(SUB FOR AR35042 OR AR41574)
12	14H866	1	Nut	5/8"
13	12H294	1	Lock Washer	5/8"
14	R15022	1	PULLEY	-
15	AR40419	1	ALTERNATOR	(24-VOLT) (MOTOROLA) (SUB FOR AR15007) (SUB TY1448)
15	TY1448	1	ALTERNATOR	(24-VOLT) (MOTOROLA NO. RA2AJD902S) (SUB FOR AR40419)
15	SE501351	1	ALTERNATOR	(REMAN FOR AR40419)
16	B10121	1	Bushing	(SUB FOR R34969)
17	19H1821	1	CAP SCREW	7/16" X 1-1/4"
17	12H293	1	Lock Washer	7/16"
18	24M7044	2	Washer	13 X 20 X 2 MM
19	AR40416	1	BRACKET	(SUB FOR AR34837)
20	K3083R	1	STUD	-
21	12H293	1	Lock Washer	7/16"
22	14H813	1	Nut	7/16", (SUB FOR A5236R)
23	12H304	1	Lock Washer	3/8"
24	14H732	1	Nut	3/8"

ALTERNATOR, REGULATOR, AND MOUNTING BRACKET (TRACTOR SERIAL NO. -005573) (TRACTOR SERIAL NO. 008000- ) [01E04]
