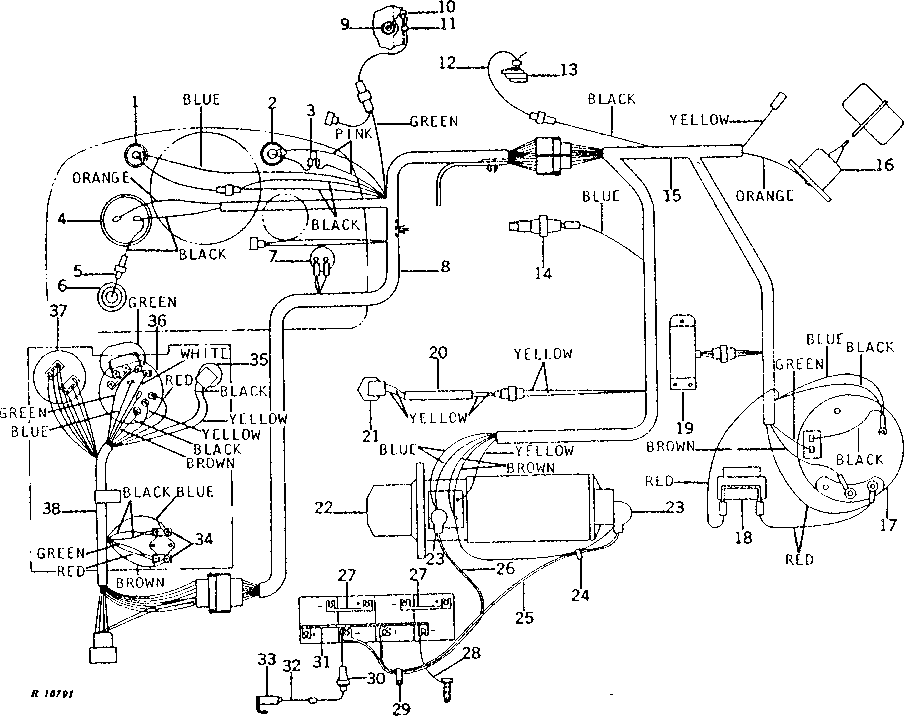

ALTERNATOR AND STARTER WIRING (TRACTOR SERIAL NO. 008000- ) [01D19]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR27944	1	LAMP	ENGINE OIL PRESSURE, (SUB AT48674, AR55694, AT44165 AND R30378)
2	AT14699	1	INDICATOR LAMP	ALTERNATOR INDICATOR
3	R39550	1	RESISTOR	-
4	AR46271	1	GAUGE	FUEL, (SUB FOR AT27153 AND R34262)
5	-	1	Part 5	305MM (12") (MAKE FROM R66319, R32018, R65597, T28583 AND R32027)
6	AR48643	1	ELECTRICAL LIGHTER	(SUB FOR AR34556)
7	AR21823	1	SWITCH	HORN
8	T13814	1	Clamp	-
8	24H1302	1	Washer	13/32" X 11/16" X 0.035"
8	B1828R	1	Bushing	-
8	12M7032	1	Lock Washer	0.331"
8	21H1304	1	Screw	5/16" X 3/4"
8	R27539	1	CLAMP	-
8	AR47686	1	WIRING HARNESS	(SUB FOR R39641 OR AR44953)
9	AR33479	1	LAMP	DASH, (SUB FOR RE13195)
10	A3411R	1	Grommet	-
11	R21551	1	CLIP	(SUB FOR F2084R)
12	R39650	1	WIRING HARNESS	-
13	AT39043	1	High Note Horn	(SUB FOR R11276)
14	AT85174	1	Switch	ENGINE OIL PRESSURE, (SUB FOR AR27977)
15	R44302	4	Tie Band	(SUB FOR R27457)
15	R32320	2	Clip	-
15	B1986R	2	CLIP	-
15	R36976	1	CLAMP	(NLA)
15	AR47670	1	WIRING HARNESS	(NLA)
16	R35648	1	FUEL SENDER	FUEL
17	AR40419	1	ALTERNATOR	(24-VOLT) (MOTOROLA) (SUB FOR AR15007) (SUB TY1448)
17	TY1448	1	ALTERNATOR	(24-VOLT) (SUB FOR AR40419)
17	SE501351	1	ALTERNATOR	(REMAN FOR AR40419)
18	R15005	1	RESISTOR	-
19	AR40779	1	VOLTAGE REGULATOR	(24-VOLT) (MOTOROLA) (SUB FOR R15017)
20	R36975	1	WIRING LEAD	-
20	R44302	1	Tie Band	(SUB FOR R27457 OR R1646R)
21	RE38390	1	SWITCH	NEUTRAL START, (SUB FOR R36265, AR85323, AR89691 OR AT85153)
21	T16911	2	SHIM	-
22	TY6747	1	ALTERNATOR	(24-VOLT) (REMANUFACTURED) (DELCO-REMY)
22	TY6721	1	STARTER MOTOR REMAN	(24-VOLT) (REMANUFACTURED) (PRESTOLITE) (SUB FOR TY6610, AR14006, AR36849 OR AR45036)
22	TY6699	1	STARTER MOTOR	(24-VOLT) (REMANUFACTURED) (DELCO-REMY) (SUB FOR AR55313, AR102770 OR AR102771)
22	AR45036	1	STARTER MOTOR	(24-VOLT) (PRESTOLITE) (SUB FOR AR14006 OR AR36849) (SUB TY6721)
22	AR45037	1	STARTER MOTOR	(24-VOLT) (DELCO-REMY) (SUB FOR AR55313, AR102770 OR AR102771)
23	R30964	2	Cover	-
24	R44302	1	Tie Band	(SUB FOR R27457)
25	AR35213	1	BATTERY CABLE	POSITIVE
26	AR35212	1	BATTERY CABLE	NEGATIVE
27	RE21742	2	Battery Cable	(SUB FOR AA4039R)
28	R39713	1	WIRING LEAD	GROUND
28	19H1936	1	Cap Screw	3/8" X 3/4"
28	12H304	1	Lock Washer	3/8"
29	12H304	1	Lock Washer	(B) 3/8"
29	T13073	1	Clip	(B)
29	28H1697	1	Spacer	(B)
29	19H1800	1	Cap Screw	(B) 3/8" X 1-1/2"
29	12H304	1	Lock Washer	(A) 3/8"
29	12H304	1	Lock Washer	3/8"
29	19H1936	1	Cap Screw	3/8" X 3/4"
29	R35668	1	Clamp	-
29	19H1936	1	Cap Screw	(A) 3/8" X 3/4"
30	AR26756	1	WIRING LEAD	FUSEHOLDER
31	AA4423R	1	BATTERY CABLE	-
32	-	1	Part 61	432MM (17") (MAKE FROM R66319, R65600, T28585, R65597, T28583 AND (2) R32027)
32	R21551	1	CLIP	-
33	21H1301	2	SCREW	0.190" X 1/2"
33	AA5692R	1	ELEC. CONNECTOR TERMINAL	LESS CABLE
33	AR40710	1	PLUG	WITH CABLE, (SUB FOR AA5691R)
33	14H778	2	Nut	0.190"
33	12M7060	2	Washer	0.209"
33	AR26571	1	SOCKET	-
34	AR28403	2	CIRCUIT BREAKER	-
35	AR46184	1	SWITCH	STARTER, (SUB FOR R39554)
36	R39551	1	SWITCH	LIGHT
37	AR39505	1	ROTARY SWITCH	KEY
38	AR47685	1	WIRING HARNESS	(SUB FOR R39555 OR AR44952)
-	SE501443	1	STARTER MOTOR	(REMANUFACTURED FOR TY6699)
